Left-hand drive

Right-hand drive

Mode	Operation	Air flow
	Air flow is directed toward the upper body and face.	B, D, F
	Air flow is directed towards the face and the floor.	B, C, D, F
	Air flow is directed toward the face, the floor and the windshield.	A, B, C, D, E, F
	Most of the air flow is directed to the floor, with a small amount of air directed to the windshield, side-window defrosters, and side air vents.	A, C, D, E
	Most of the air flow is directed to the floor and the windshield, with a small amount directed to the side-window defrosters and side air vents.	A, C, D, E
	Most of the air flow is directed to the windshield, with a small amount of air directed to the side-window defrosters and side air vents.	A, D

Start the vehicle.
Set the mode-selection buttons as desired. To improve the effectiveness of heating and cooling:
- Heating: ()
- Cooling: ()
Set the temperature control to the desired temperature level.
Set the air intake control to the position for outside (fresh) air if required.
Set the position of the fan speed control so that it runs at the desired speed.

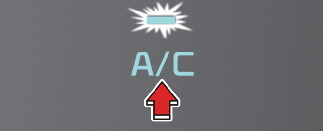

If desired, turn the air conditioning ON with the temperature set high in order to dehumidify the air before it enters into the cabin.

If the windshield fogs up, select the Front Defrost () mode.

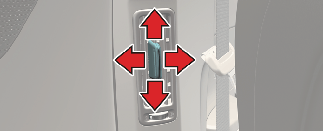

Select the direction of the air flow through the ventilation system.

The air flow outlet ports are enabled in the following sequence:

Select the outside (fresh) air position or recirculated air position.
Outside (fresh) air position: Air enters the vehicle from outside. The indicator light will turn off.
Recirculated air position: Air from the passenger compartment will be drawn back into the heating system. The indicator light illuminates.

Front

Rear
