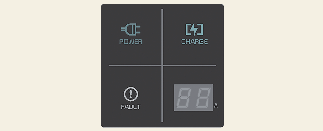

Charging status indicator lamp for portable charger
|
Indicator |
Details |
|
|---|---|---|
|
POWER |
On: Power on |
|
|
CHARGE |
On: Charge Blink: Current limit due to high plug temperature or high internal temperature |
|
|
FAULT |
Blink: Charging interrupted |
|
|
CHARGE LEVEL |
12 |
12 A |
|
10 |
10 A |
|
|
08 |
8 A |
|
|
06 |
6 A |
|
|
The charging current changes whenever the button (1) is pressed for less than 1 sec with the charger plugged into an electrical outlet but not the vehicle. Control box
 |
||
Status/Diagnosis/Countermeasure
-
Charging connector plugged into vehicle (POWER Green ON)
-
Plug connected to an electric outlet (POWER Green ON)
While charging
-
Charge indicator (POWER Green ON/CHARGE Blue ON)
-
Charging current
Before plugging charging connector into vehicle (POWER Green ON, FAULT Red blink)
-
Abnormal temperature
-
CCB (In-Cable Control Box) failure
Plugged into vehicle (POWER Green ON, FAULT Red Blink)
-
Diagnostic device failure
-
Current leakage
-
Abnormal temperature
Leakage current failure (POWER Green ON, FAULT Red Blink)
-
After disconnecting and reconnecting the power plug, press and release the button for 2 seconds or longer to clear the error.
Power saving mode
-
Charge level indicator is turned off if there is no status change for more than 1 minute.
