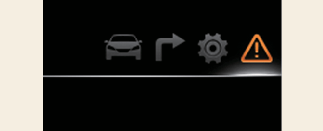

LCD display modes

The information provided may differ depending on which functions are applicable to your vehicle.

Type A

* : if equipped

Mode
	Trip Computer	Turn By Turn (TBT) *	User Settings*	Information/Master Warning
Up/Down	Drive Info	Route Guidance	Driver Assistance	Tyre Pressure Monitoring System*
	Accumulated Info	Destination Info	Cluster	The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally.
			Lights
			Door
			Convenience
			Units
			Language
			Default

Type B

* : if equipped

Mode
	Trip Computer	Turn By Turn (TBT) *	User Settings*
Up/Down	Drive Info	Route Guidance	Illumination
		Destination Info	Service reminder
			Fuel economy unit
			Temperature unit

Trip computer mode

* You may change through items in the following order.

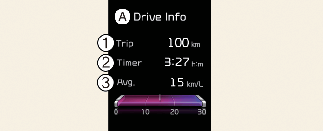

Drive info

A: Drive info

Accumulated trip distance
Total driving time
Average fuel efficiency

The information after one ignition cycle.

Drive Info screen will reset when the driver's door is opened after turning off the vehicle, or the vehicle is turned on after 3 minutes have passed.

To manually reset the information, press and hold the OK button on the steering wheel when viewing the Drive info.

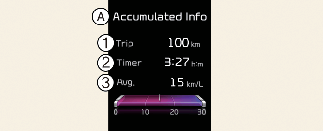

Accumulated info

A: Accumulated info

Accumulated trip distance
Total driving time
Average fuel efficiency

The information is accumulated starting from the last reset.

To manually reset the information, press and hold the OK button on the steering wheel when viewing the Accumulated Info.

Notice

The average fuel economy is not displayed for more accurate calculation if the vehicle does not drive more than 10 seconds or approximately 50 m (0.03 miles) since the vehicle is in ON position.
Fuel efficiency is calculated after the vehicle has run for more than 300 metres.
The information will be accumulated even if the engine is running and the vehicle is not in motion.

Turn By Turn (TBT) mode

This mode displays the Navigation status.

Information mode

Tyre pressure

A: Low tyre pressure

Information related to tyre pressure.

Refer to More Details.

Master warning mode

This mode informs you of the following situations:

Driver assistance system malfunction, limitation
LED headlamp malfunction
Lamp malfunction
TPMS failure, low tyre pressure, etc.

At this time, the Master warning light () will appear. If the warning situation is solved, the master warning light will be turned off and the Master Warning icon will disappear.

User settings mode (if equipped)

In this mode, you can change the settings of the instrument cluster, doors, lights, etc.

* The information provided may differ depending on which functions are applicable to your vehicle.

1. Driver Assistance

Items	Explanation
Warning Volume	High/Medium/Low

2. Cluster (if equipped)

Items	Explanation
Wiper/Lights Display	Activate
Traffic Signs	Activate
Icy Road Warning	Activate
Welcome Sound	Activate
Theme Selection	Link to Drive Mode/Theme A/Theme B/Theme C/Dynamic

3. Lights (if equipped)

Items	Explanation
Illumination	1~20 Level
One Touch Turn Signal	Off/3/5/7 Flashes
Ambient Brightness	Off/1/2/3/4
Ambient Light Colour	8 colours
Headlight Delay	Activate

4. Door (if equipped)

Items	Explanation
Automatically Lock	Enable on shift/Enable on speed/Off
Automatically Unlock	On shift to P/Vehicle Off/On key out (if equipped )/Off

Notice

Automatically Lock
- Enable On Shift (Except manual transmission): All doors will be automatically unlocked when the vehicle is shifted to P (Park) to R (Reverse), N (Neutral), or D (Drive). (Activated with the vehicle ON position)
- Enable On Speed: All doors will be automatically locked when the vehicle speed is over 15 km/h (9 mph).
Automatically Unlock
- On Shift to P (Except manual transmission): All doors will be automatically unlocked if the gear is shifted to the P (Park) position. (With the Engine ON, it is activated.)
- Vehicle Off/On key out (if equipped): All doors will be automatically unlocked when the ignition key is removed from the ignition switch or the ENGINE START/STOP button is set to the OFF position.

5. Convenience (if equipped)

Items	Explanation
Welcome Mirror/Light	On door unlock/On driver approach
Wireless Charging System	Activate
Service Interval	Enable Service Interval Adjust Interval Reset

6. Units

Items	Explanation
Speed Unit	km/h, MPH
Temperature Unit	℃, ℉
Fuel Economy Unit	km/L, L/100km
Tyre Pressure Unit	psi/kPa/bar

7. Language

Items	Explanation
Language	Activate

8. Default

Items	Explanation
Default	Default
