Replacing engine compartment fuse

Turn the ignition switch and all other switches off.

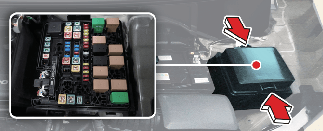

Remove the fuse panel cover by pressing the tab and pulling the cover up.

Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.

Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, we recommend that you consult a professional workshop. Kia recommends to visit an authorised Kia dealer/service partner.

CAUTION

After checking the fuse panel in the engine compartment, securely install the fuse panel cover through the audible clicking sound.

If not, electrical failures may occur from water contact.

Main fuse (Multi fuse)

If the multi fuse is blown, it must be removed as follows:

Turn the ignition switch and all other switches off.

Disconnect the negative battery cable.

Remove the nuts shown in the picture above.

Replace the fuse with a new one of the same rating.

Reverse these steps to reinstall the multi fuse.

NOTICE

If the multi fuse is blown, consult a professional workshop. Kia recommends to consult an authorised Kia dealer/service partner.

Driver's side fuse panel

NOTICE

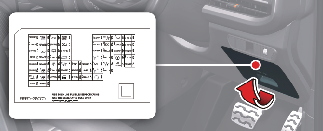

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label on the inside of the fuse cover. This diagram will provide you with the specific information for your vehicles.

Refer to the following table for a description of the fuse.

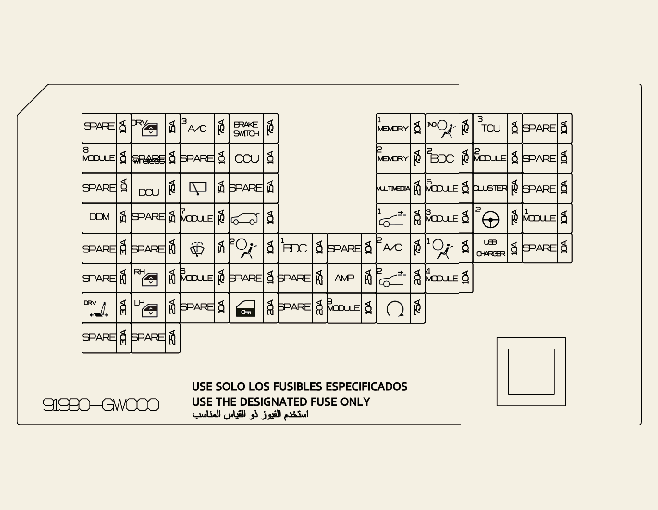

PDC Junction Block

Fuse Name	Fuse rating	Circuit Protected
P/WINDOW DRV	15A	Power Window Relay
A/C3	7.5A	MTC,FATC, A/CON
BRAKE SWITCH	7.5A	Stop lamp Switch, BDC
MEMORY1	10A	A/CON(MTC/FATC), FATC PANEL, SAL UNIT, MOOD LAMP, ADAS PRK ECU
A/BAG IND	7.5A	OHCL
TCU3	10A	ATM LEVER(U2), DCT LEVER(KAPPA)
MODULE8	10A	HAZARD SW, MUT
CCU	10A	CCU (Central Communication Unit)
MEMORY2	10A	CLUSTER, PHOTO SNSR SECURITY, WPC, USB DATA CHARGING
BDC2	7.5A	BDC (Body Domain Controller)
MODULE2	10A	CCU, ATM LEVER(U2), DCT LEVER(KAPPA)
wireless DCU	7.5A	DCU (Domain Control Unit)
WIPER RR	15A	REAR WIPER MOTOR
MULTIMEDIA	25A	CCNC (Connected Car Navigation Cockpit)
MODULE5	10A	CONSOLE SW, FATC PANEL, CRASH PAD SW, IS MIRR, CCNC, A/CON(MTC/FATC), CDU, PIO DASH CAM, RR USB, AIR PURIFIER, AMP, SEAT VENT, PWR SEAT, HEAD LAMP(HLLD)
CLUSTER	7.5A	CLUSTER
DDM	15A	POWER WINDOW SW(DRV)
MODULE7	7.5A	Seat Vent, Power Seat
TAILGATE OPEN	10A	TAILGATE LATCH
SUNROOF1	20A	SUNROOF(GLASS MTR)
MODULE3	10A	POWER WINDOW SW(DRV)
MDPS2^*1	7.5A	MDPS (Motor Driven Power Steering)^*1
WASHER	15A	M/F(WASHER PWR)
AIR BAG2	10A	ACU
BDC1	10A	BDC (Body Domain Controller), OS MIRR(DRIV/PASS)
A/C2	7.5A	MTC, FATC
USB CHARGER	10A	USB CHARGER
P/WINDOW RH	25A	POWER WINDOW MOTOR
MODULE6	7.5A	BDC
AMP	25A	AMP (Amplifier)
SUNROOF2	20A	SUNROOF(BLIND MTR)
MODULE4	10A	CRASH PAD SW, FRT CAMERA, MUT, ADAS PRK ECU, FRT RADAR, DCU(U2)
POWER SEAT DRV	30A	PWR SEAT
P/WINDOW LH	25A	POWER WINDOW SW (PASS/RL), POWER WINDOW ECU (PASS/RL)
DOOR LOCK	20A	DOOR ACTUATOR
MODULE9	10A	SEAT VENT, PWR SEAT
START	7.5A	ECU, PCU, TCU, INHIBITOR_SW(KAPPA), IGN_LOCK_CLUTCH_SW(U2), BDC

*1: MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering).

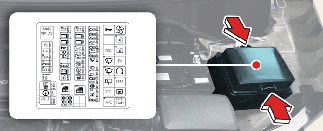

Engine compartment fuse panel

Refer to the following table for a description of the fuse.

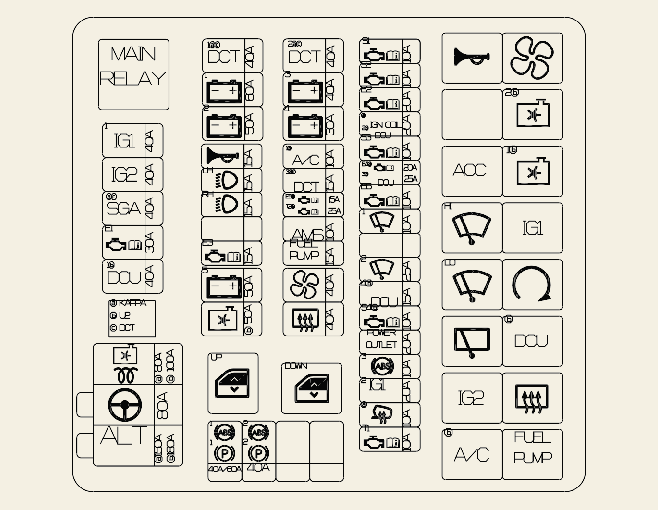

Engine room Junction Block

Fuse Name	Fuse rating	Circuit Protected
MAIN FUSE (ALT+MDPS^*1+COOLING FAN/GLOW)	[(Petrol) 1.0 T-GDi] 150A+80A +80A [(Diesel) 1.5 VGT] 180A+80A+100A	ALT+MDPS^*1+COOLING FAN/GLOW
ABS1	40A/60A	ABS (Anti-lock Brake System) / ESC Only ESC + EPB
ABS2	40A	ABS (Anti-lock Brake System) / ESC Only ESC + EPB
ABS3	10A	ABS (Anti-lock Brake System) / ESC Only ESC + EPB
BLOWER	40A	BLOWER
B+1	60A	HEAD LAMP, TURN SIG LAMP, EXT TAIL LAMP, DRL (Daytime Running Light), BRAKE LAMP, FOG LAMP, HSML
B+2	50A	HEAD LAMP, TURN SIG LAMP, EXT TAIL LAMP, DRL (Daytime Running Light), BRAKE LAMP
B+3	40A	Power Seat, Power window, DCU unit,SRC, Horn , Hazard SW & Diagnostic circuits
B+4	30A	Multimedia, P/outlet & Console Extn, sound mood lamp, ADAS camera, BDC, O/S Mirror, CCU, Ctr door lock, power seat, parking brake
B+5	50A	Amp, A/Bag, RR seat extn, sunroof, HVAC, FATC,MTC
IG1 1	40A	Amp, A/Bag, RR seat extn, sunroof, HVAC, FATC,MTC
IG1 2	20A	Amp, A/Bag, RR seat extn, sunroof, HVAC, FATC,MTC
A/C1	10A	A/CON
COOLING FAN	[(Diesel) 1.5 VGT] 50A	[(Diesel) 1.5 VGT] DSL
DCU1	40A	DCU, ECU
IG2	40A	START
FUEL PUMP	15A	FUEL PUMP
ECU2	20A	ECU
ECU3	15A	ECU3
DCT3	15A	DCT (Dual Clutch Transmission)
AMS	10 A	AMS
ECU1	30A	ECU
IG- Coil DCU2	[(Petrol) 1.0 T-GDi] 20A[(Diesel) 1.5] 20A	[(Petrol) 1.0T-GDi] IG-Coil[(Diesel) 1.5] DCU
DCU4	15A	[(Diesel) 1.5 VGT] INJECTOR
SNSR4	10A	[(Diesel) 1.5 VGT] SNSR4
IG- Coil DCU2	[(Petrol) 1.0 T-GDi] 20A[(Diesel) 1.5] 20A	[(Petrol) 1.0T-GDi] IG-Coil[(Diesel) 1.5] DCU
ECU6	10A	[(Petrol) 1.0 T-GDi] ECU
ECU5 TCU2	[(Petrol) 1.0T-GDi] 15A[(Diesel) 1.5] 25A	[(Petrol) 1.0T-GDi] ECU[(Diesel) 1.5] TCU2
SNSR1	10A	SENSOR
SNSR2	10A	SENSOR
SNSR3	10A	SNSR3
WIPER FRT2	25A	WIPER
HORN	15A	HORN
DCT1	40A	DCT ECU
DCT2	40A	DCT ECU
DCT3	15A	DCT ECU
WIPER FRT1	10A	WIPER
DCU3/ECU4	[(Petrol) 1.0T-GDi] 20A[(Diesel) 1.5 ] 25A	[(Petrol) 1.0T-GDi] ECU4[(Diesel) 1.5 ] DCU
TCU1	10A	TCU
ECU5/TCU2	[(Diesel) 1.5 ] 15A [(Petrol) 1.0T-GDi] 25A	[(Diesel) 1.5 ] ECU5 [(Petrol) 1.0T-GDi] TCU2
HEATED MIRROR	10A	Rear HEATED MIRROR, ECU
POWER OUTLET	20A	Power Outlet (Console Floor)
HEAD LAMP	15A	Head Lamp LH
HEAD LAMP	15A	Head Lamp RH
SGA	40A	SGA

*1: MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering).

Refer to the following table for the relay type.

Relay

Relay Name	Symbol	Circuit Protected
BLOWER		BLOWER MOTOR, ICU
A/CON		A/CON, ECU
C/FAN		COOLING FAN, ECU or DCU ECU
START		START SOLENOID, ECU
FUEL PUMP		FUEL PUMP, ECU
MAIN		ECU, PCU, TCU (Transmission Control Unit), SENSOR
FRT WIPER HIGH		WIPER MOTOR
FRT WIPER LOW		WIPER MOTOR
RR WIPER		REAR WIPER MOTOR
HORN		HORN Left Handle side/Right Handle side
ACC		ACC Power
IG1		IG1 Power
IG2		IG2 Power
DCU		DCU
Power Window Up		Power Window
Power Window Down		Power Window
