1. Driver Assistance

2. Warning Method

The Warning Method can be set with the vehicle on. Select Settings → Vehicle → Driver Assistance → Warning Method from the settings menu in the infotainment system to change the following settings:

• Parking Safety Priority: Lowers all other audio volumes when Surround View Monitor is active.

NOTICE

• Changing the warning method may also change the warning method of other driver assistance systems. Please consider and change it.

• If the vehicle is restarted, Warning Method will maintain the last setting.

• The setting menu may not exist based on vehicle specification.

1. Camera Settings

2. Display Contents

With the vehicle on, select the setup icon () on the screen or Settings → Vehicle → Driver Assistance → Parking Safety → Camera Settings from the infotainment system screen to change the Surround View Monitor settings.

• Display Contents: Specify information that will be displayed on the parking assistance screen.

Parking distance warning is displayed on the right side of the Surround View Monitor top view screen when the Parking Distance Warning is selected.

If the Top View Parking Guidelines are selected, the Top View Parking Guidelines are displayed in the top view on the right side of the surround view monitor screen when the front top view or rear top view is activated.

If Rear View Parking Guidelines is selected, the rear parking guidelines is displayed on the left of the image.

NOTICE

• The setting menu may not be available for your vehicle depending on the vehicle features and specifications.

• The horizontal guidelines of the Rear View Parking Guidelines indicate distances of 0.5 m (20 in), 1 m (40 in) and 2.3 m (92 in) from the vehicle. (based on empty vehicle condition)

• The horizontal scale of the Rear Top View Parking Guidelines indicates tailgate opening distances and 2 m (79 in) from the vehicle. (based on empty vehicle condition)

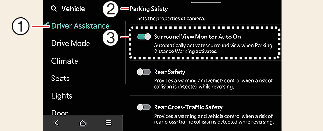

1. 1 Driver Assistance

2. Parking Safety

3. Surround View Monitor Auto On

With the vehicle on, select Settings → Vehicle → Driver Assistance → Parking Safety → Surround View Monitor Auto On from the infotainment system screen to use the function.

NOTICE

For more details on Surround View Monitor Auto On, refer to More Details.
