Automatic climate control system (if equipped)

The automatic climate control system uses cooling and heating to help maintain a pleasant environment inside the vehicle.

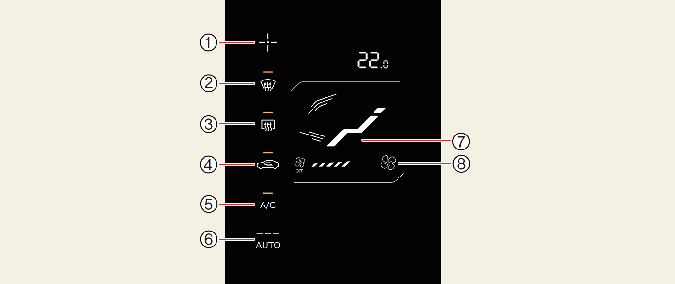

Climate control display

Instrument panel

Infotainment system screen on/off button
Front windscreen defroster button
Rear window defroster button (if equipped)
Air intake control button
Air conditioning (A/C) lever
AUTO (automatic control) button
Mode selection button
Fan speed control/off button
Fan speed control/off lever
Mode selection lever
AUTO (automatic control) lever
Temperature control lever

NOTICE

Operating the blower when the ignition switch or ENGINE START/STOP button is in the ON position could cause the battery to discharge. Operate the blower when the engine is running.

Contains Topics: Heating and air conditioning automatically; Heating and air conditioning manually
