Cargo area cover

Use the cargo area cover to hide items stored in the cargo area.

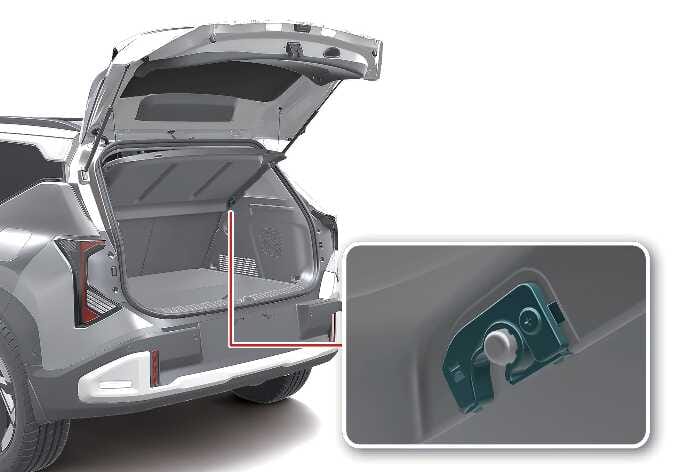

  1. Insert cargo security screen to the hook as shown.

    N_SP3i25_D08_038_1_IR

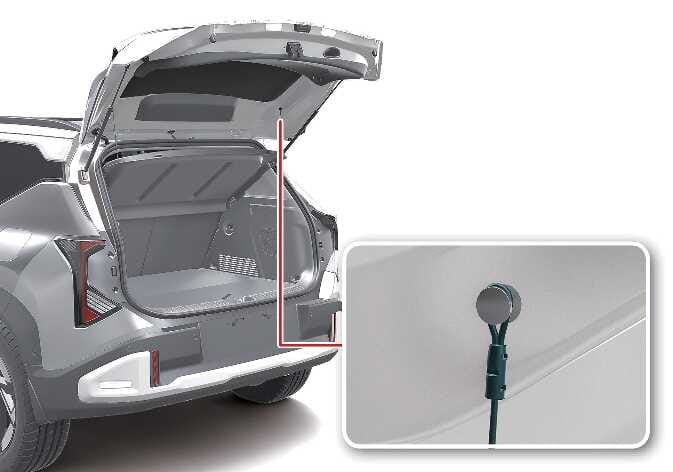

  2. After holding the cargo screen cable, insert it into the upper hook located under the rear glass and use it to fix it.

    N_SP3i25_D08_039_1_IR

  3. Removal of the cargo screen is the reverse of assembly.

WARNING

Do not place objects on the cargo area cover. Such objects may be thrown about inside the vehicle and possibly injure vehicle occupants during an accident or when braking.

CAUTION

Since the cargo area cover may be damaged or malformed, do not put luggage on it when it is used.
