Automatic climate control system: (if equipped)

The automatic climate control system cools or heats the inside of the vehicle for the comfort of you and your passengers.

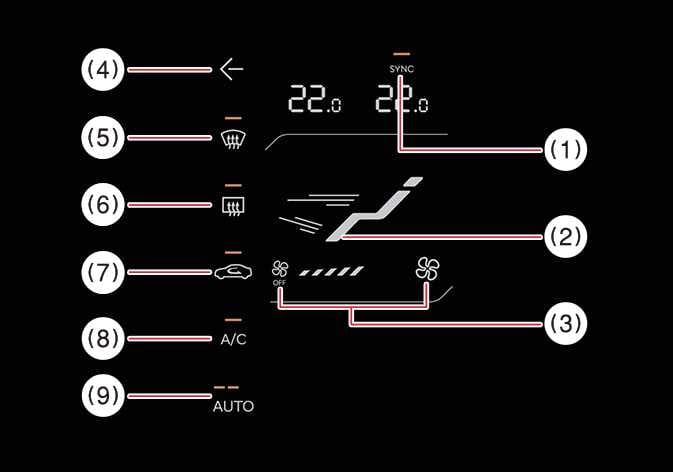

Figure 1. Climate control display
KIAPB027
Figure 2. Instrument panel
N_SP3i25_D08_011_IR

  1. SYNC icon

    • Touch the SYNC icon to adjust the driver and passenger side temperature to the same value.

  2. Mode selection icon

  3. Fan speed control/OFF icon

  4. Infotainment system screen ON/OFF icon

  5. Front-windscreen defroster icon

  6. Rear-window defroster icon

  7. Air intake control icon

  8. Air conditioning A/C icon

  9. AUTO (automatic control) icon

  10. Passenger's side temperature control lever

  11. Mode selection lever

  12. Fan speed control/OFF lever

  13. Driver's side temperature control lever

NOTE

Operating the blower fan when the vehicle is in ACC position may cause the 12V battery to discharge. Only operate the blower fan when the vehicle is running.
