Instrument cluster

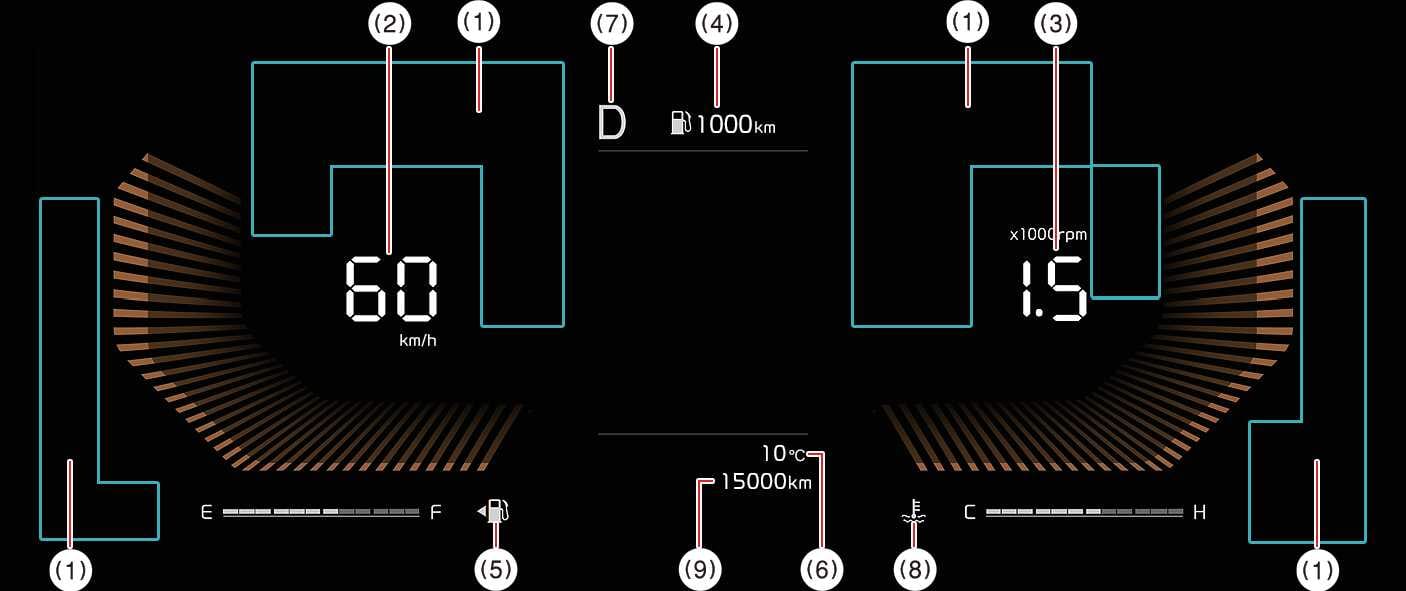

Figure 1. Type A
OCL4M035141C
Figure 2. Type B
OCL4M035140C

The actual instrument cluster in the vehicle may differ from the illustrations.

  1. Warning and indicator lights

  2. Speedometer

  3. Tachometer

  4. Distance to empty

  5. Fuel gauge

  6. Outside temperature gauge

  7. Transmission shift indicator

  8. Engine coolant temperature gauge

  9. Odometer
