Engine compartment

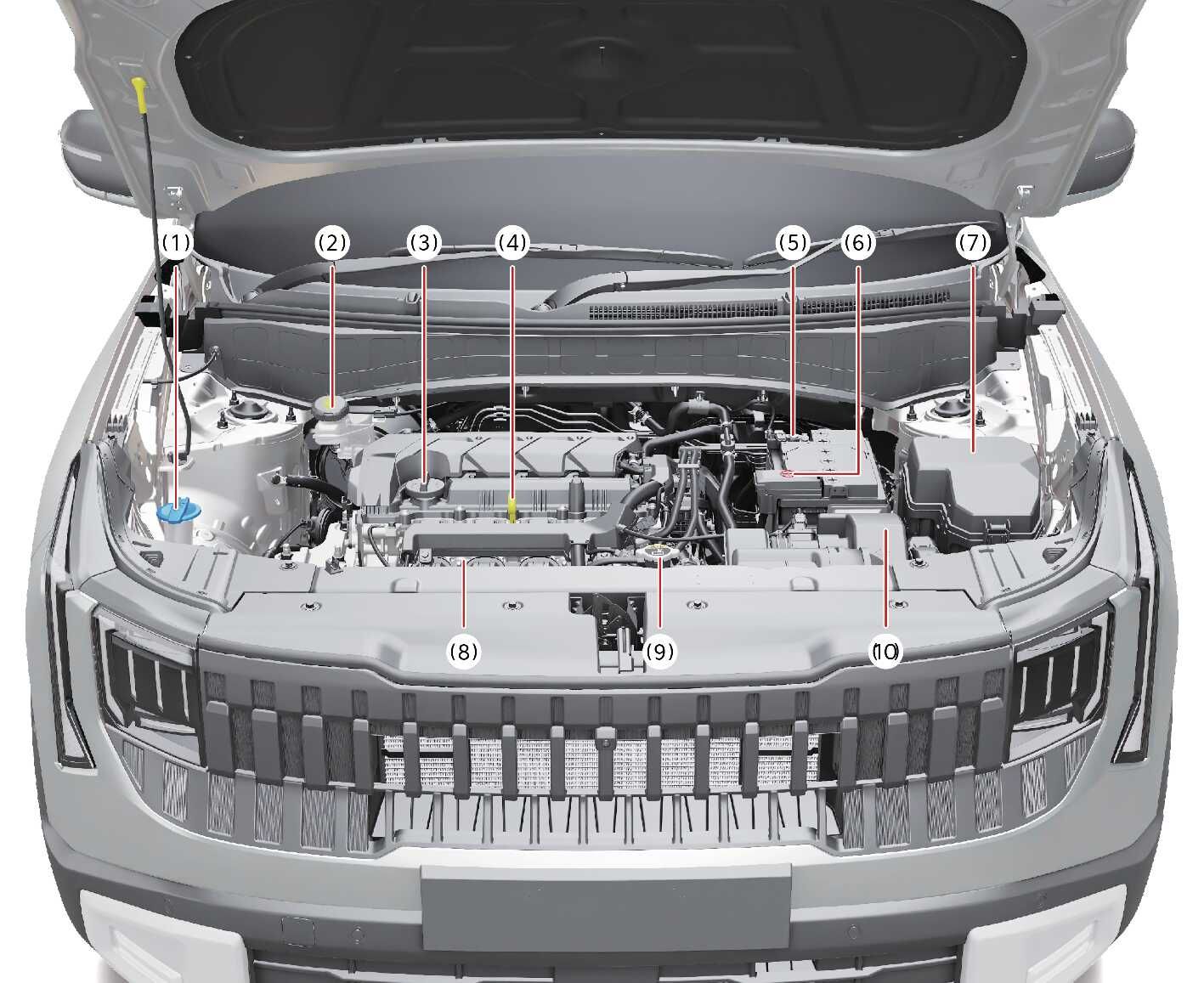

Figure 1. Smartstream G1.5 (Petrol)
N_SP3i27_B02_013_IR

  1. Windscreen washer fluid reservoir

  2. Brake fluid reservoir

  3. Engine oil filler cap

  4. Engine oil dipstick

  5. Negative battery terminal

  6. Positive battery terminal

  7. Fuse box

  8. Engine coolant reservoir

  9. Radiator cap

  10. Air cleaner

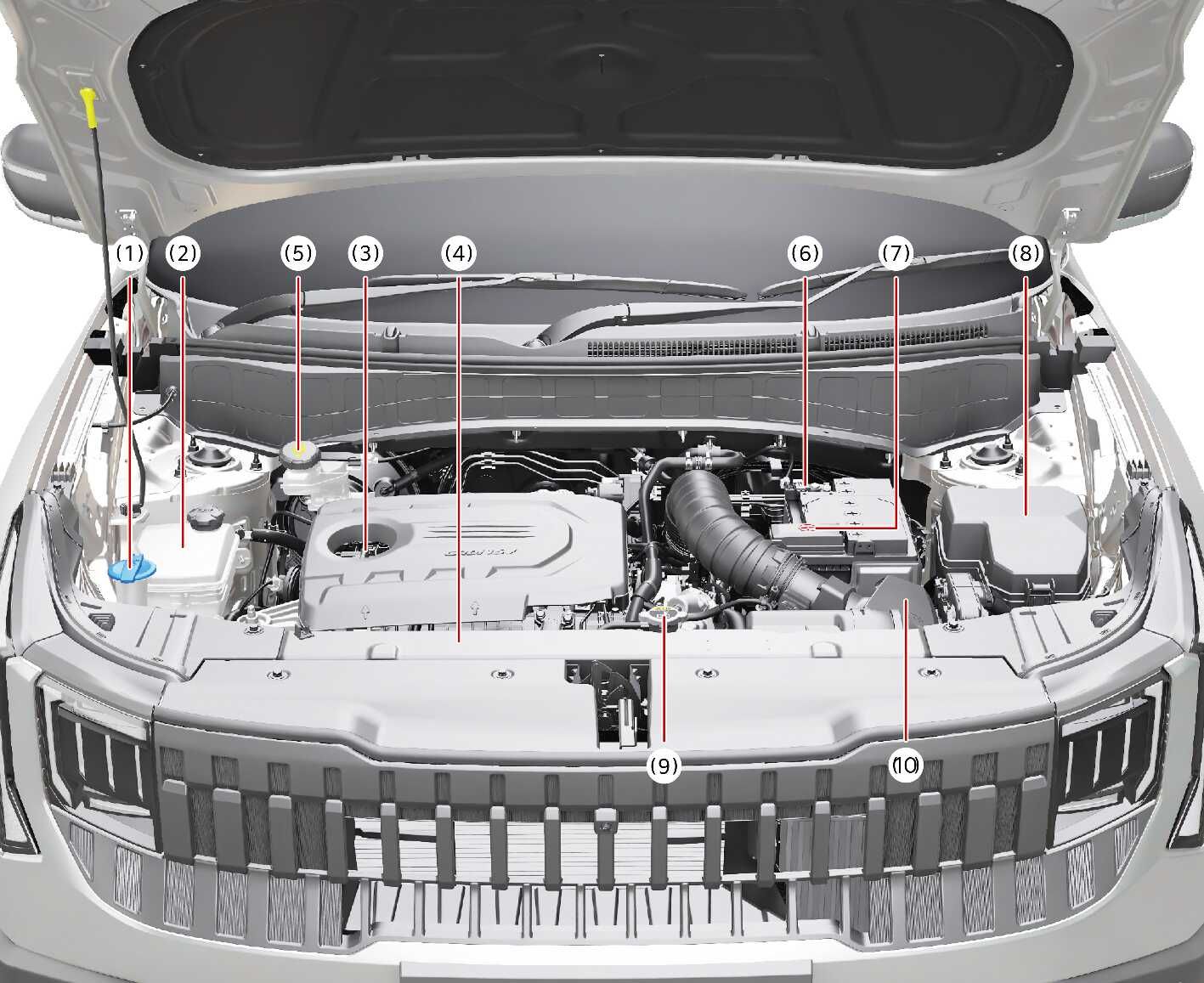

Figure 2. (Diesel) 1.5 VGT
N_SP3i26_B02_004_E

The actual engine compartment in your Kia may differ from the illustration.

  1. Windscreen washer fluid reservoir

  2. Engine coolant reservoir

  3. Engine oil filler cap

  4. Engine oil dipstick

  5. Brake fluid reservoir

  6. Negative battery terminal

  7. Positive battery terminal

  8. Fuse box

  9. Radiator cap

  10. Air cleaner

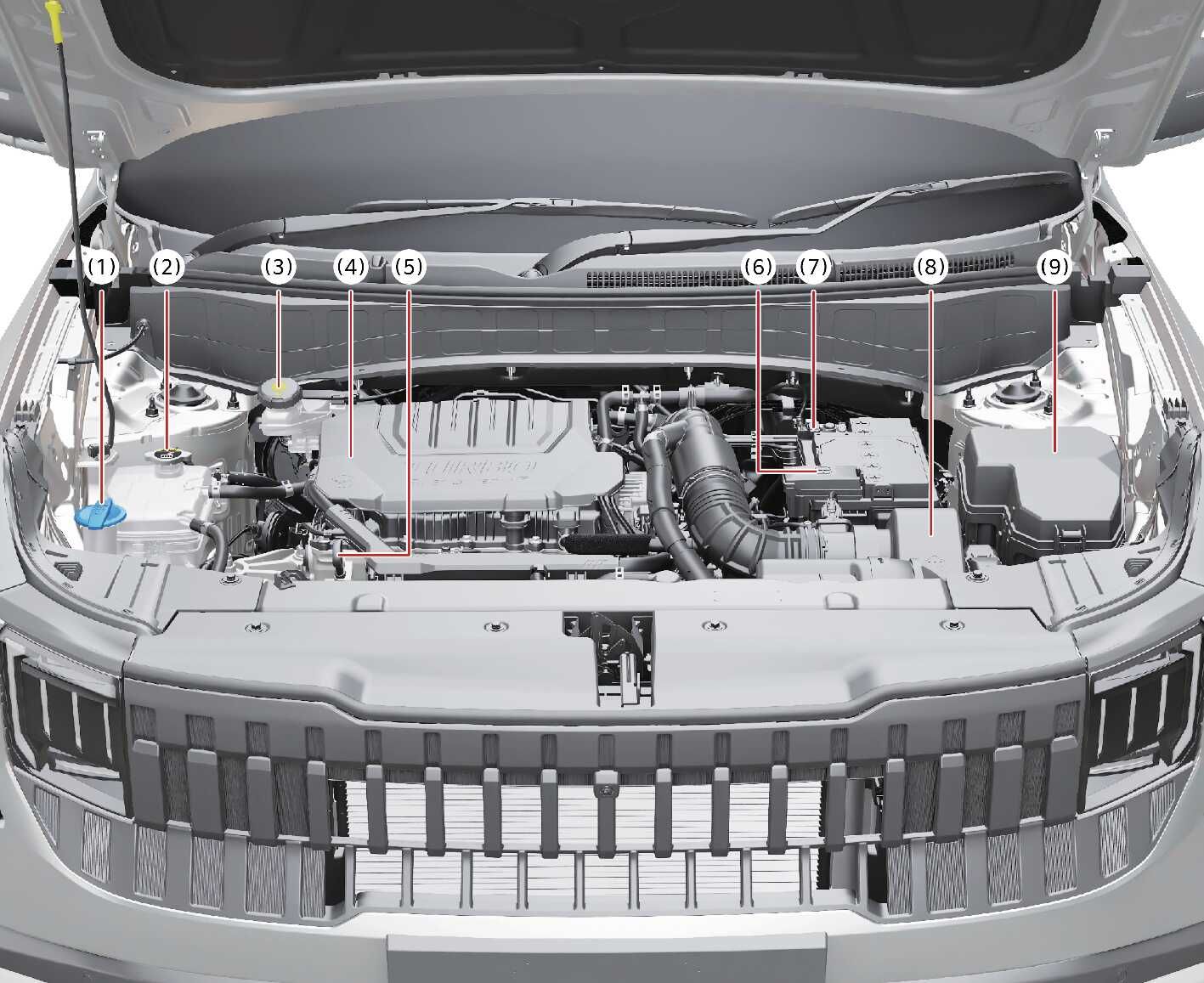

Figure 3. Smartstream G1.5 T-GDi (Petrol)
N_SP3i25_B02_006_IR

The actual engine compartment in your Kia may differ from the illustration.

  1. Windscreen washer fluid reservoir

  2. Engine coolant reservoir

  3. Brake fluid reservoir

  4. Engine oil filler cap

  5. Engine oil dipstick

  6. Positive battery terminal

  7. Negative battery terminal

  8. Air cleaner

  9. Fuse box
