Utility information view

Low pressure warning display

N_SP3i25_C00_095_IR

  1. Low tyre pressure

This warning message displays when the tyre pressure is low and indicates which tyre is low.

For more details, refer to Tyre Pressure Monitoring System (TPMS).

Fuel economy

This information is always displayed at the bottom centre of the Full LCD information cluster.

OCL4M035147C

  1. Average fuel economy

  2. Instant fuel economy
Average fuel economy

  • Average fuel economy is calculated using the total driving distance and fuel consumption of the last trip.

    • Fuel economy range: 0–99.9 mpg or km/L, L/100 km

    TIP

    For more accurate calculation, the average fuel economy is not displayed if you do not drive the vehicle for more than 10 seconds or 50 m (0.03 mi) after you turn the ENGINE START/STOP button ON.

Instant fuel economy

  • This mode displays the instant fuel economy during the last few seconds when the vehicle speed is more than 10 km/h (6.2 mph).

    • Fuel economy range: 0.0–50.0 mpg or 0.0–30 km/L, L/100 km

Drive Info display

The Drive Info display shows the trip distance, average fuel efficiency, and total driving time once per ignition cycle.

OCL4M035148C

  1. Current Trip

  2. Trip

  3. Timer

  4. Avg.

  • After the vehicle runs for more than 300 m (0.19 miles), the Fuel efficiency is calculated.

  • The information will automatically reset when the driver’s door is opened after the ignition is turned off, or approximately 3 minutes after the ignition is turned off.

  • If you press the “OK” button for more than approximately 1 second after the driving information is displayed, the information will be reset.

  • Information is accumulated when the engine is running, even if the vehicle is not in motion.

Information since refuelling

OCL4M035149C

  1. Since Refuelling

  2. Trip

  3. Timer

  4. Avg.

This display shows the trip distance, the average fuel efficiency, and the instant fuel efficiency (or the total driving time) since refuelling.

  • After the vehicle runs for more than 300 m (0.19 miles), the information since refuelling is calculated.

  • If you press the “OK” button for more than 1 second after the information since refuelling is displayed, the information is reset.

  • When driving after refuelling, the information is automatically reset.

  • Information is accumulated when the engine is running, even if the vehicle is not in motion.

TIP

The vehicle must be driven for at least 300 m (0.19 miles) since the last ignition cycle before the average accumulated driving information is recalculated.

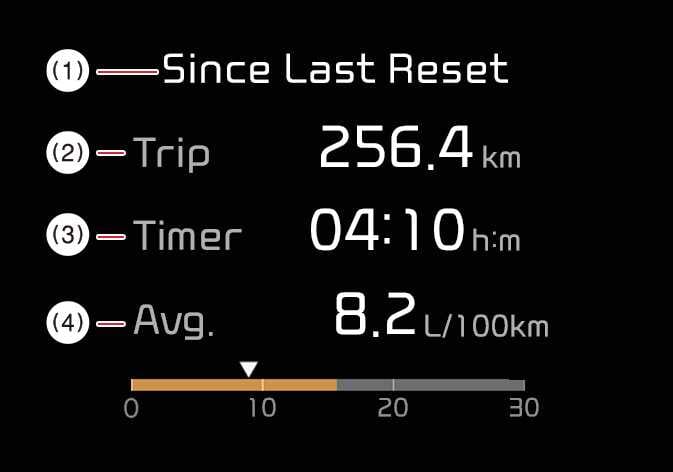

Accumulated driving information mode

This display shows the accumulated trip distance, the average fuel efficiency, and the total driving time.

OCL4M035150C

  1. Since Last Reset

  2. Trip

  3. Timer

  4. Avg.

  • After the vehicle runs for more than 300 m (0.19 miles), the Accumulated information is calculated.

  • If you press the “OK” button for more than 1 second after the Cumulative Information is displayed, the information will be reset.

  • Information is accumulated when the engine is running, even if the vehicle is not in motion.
