Specifications

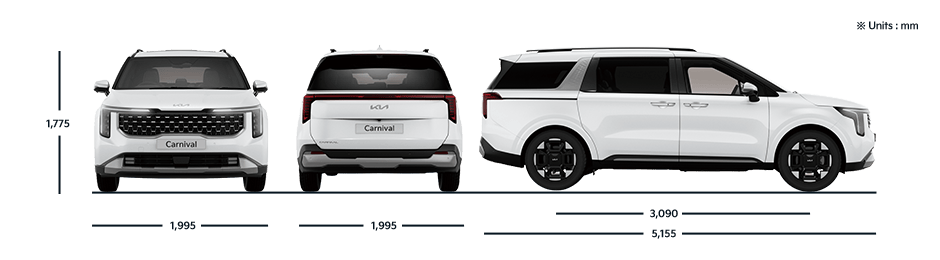

Dimensions

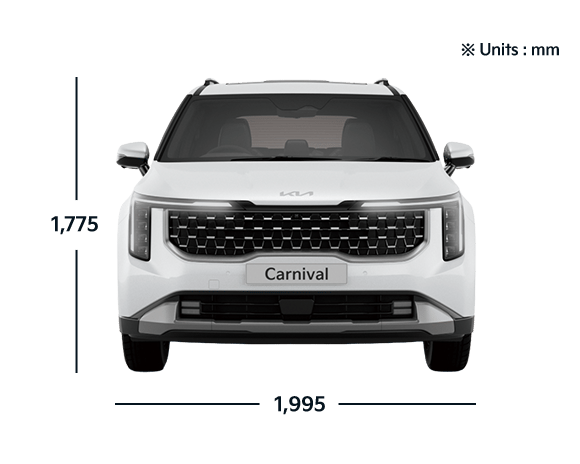

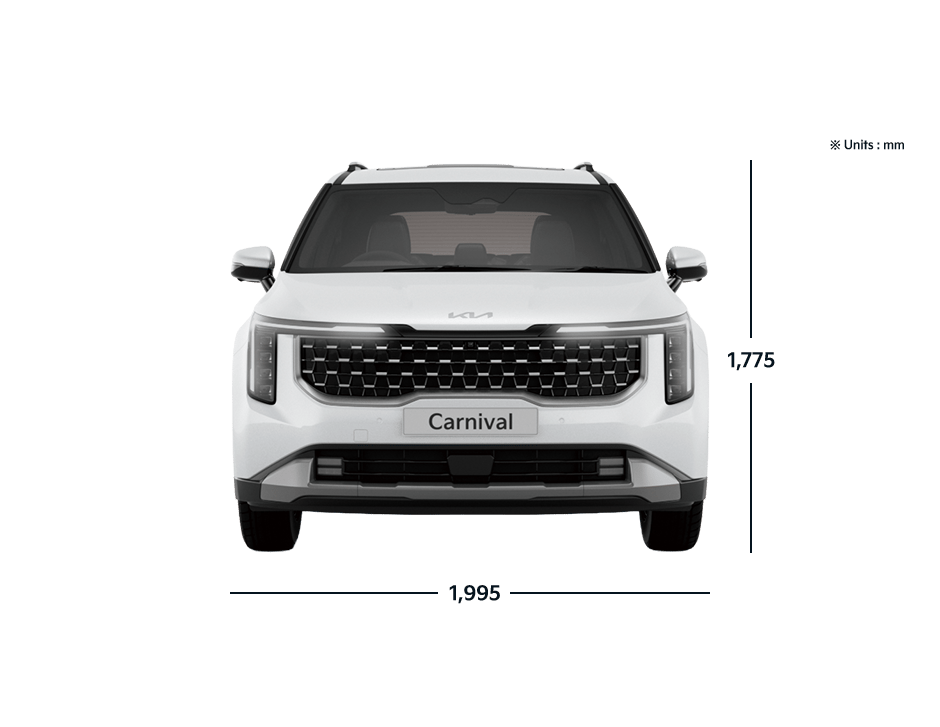

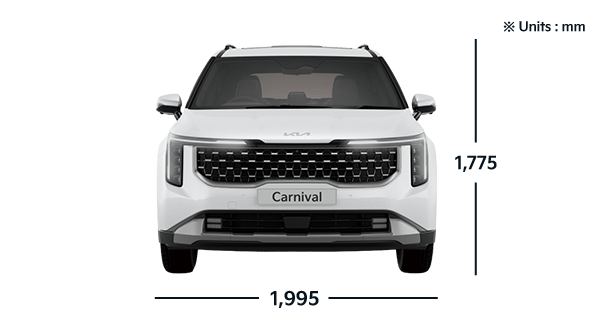

Carnival PE Front View Carnival PE Front View Carnival PE Front View

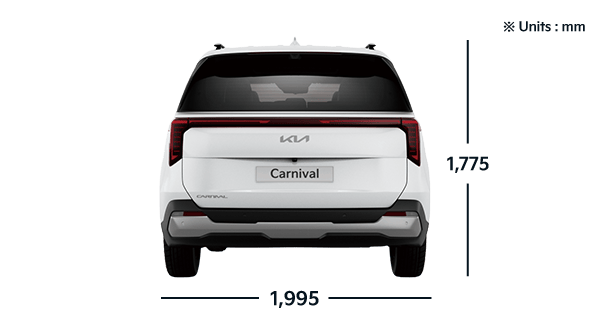

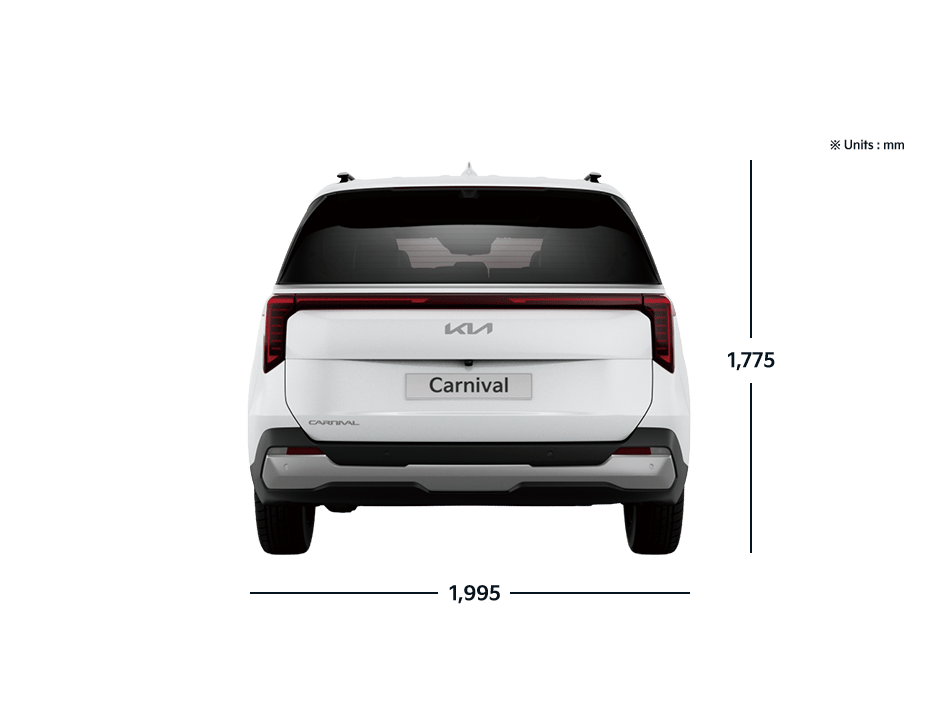

Carnival PE Rear View Carnival PE Rear View Carnival PE Rear View

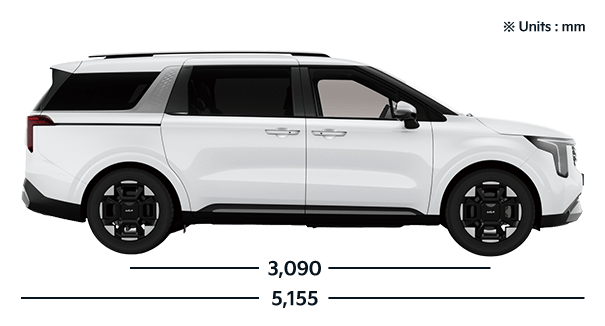

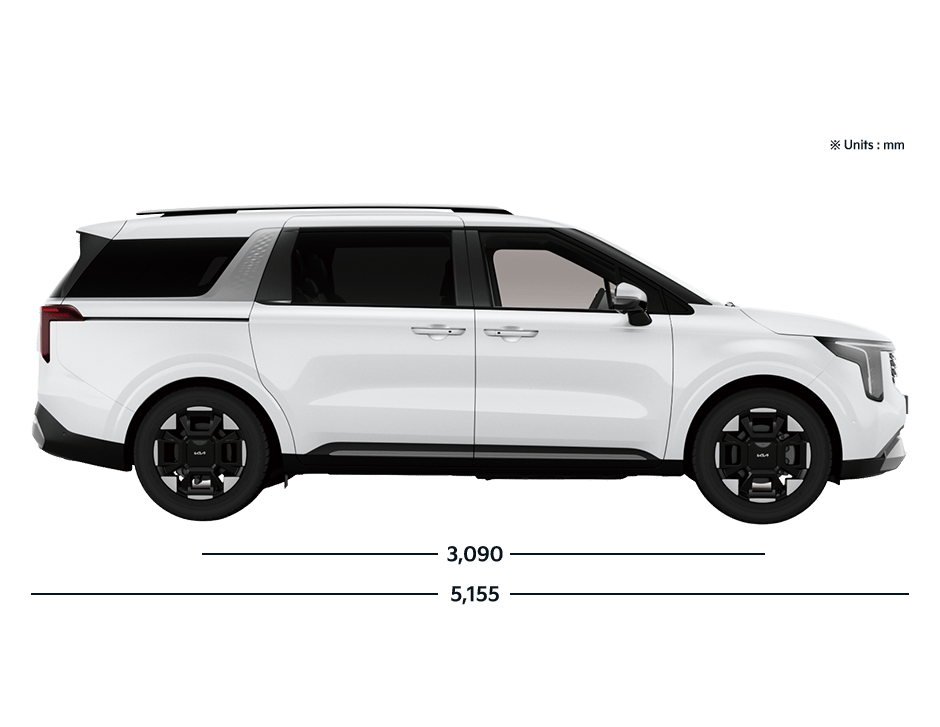

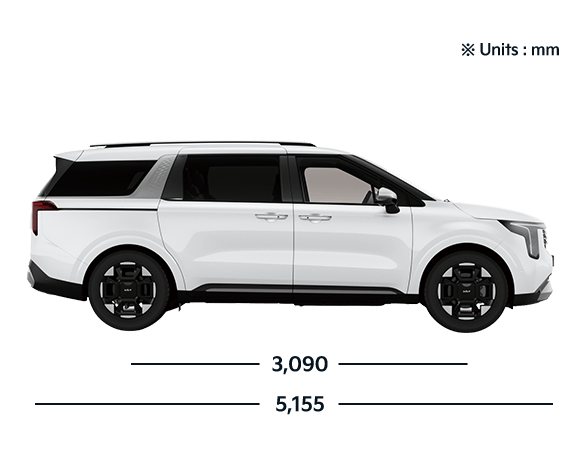

Carnival PE Side View Carnival PE Side View Carnival PE Side View
Power Train
table fix area
Engine Type
Displacement (cc)
Maximum Power (PS/rpm)
Maximum Torque (Nm/rpm)
Transmision Type

2.2D 11-seater 2.2D 8-Seater 2.2D 7-Seater
Smartstream 2.2L Turbo CRDi, 4 Inline Cylinders DOHC (D4HE)
2,151
199/3,800
440/1,750-2,750
8-Speed Automatic (e-Shift)
Steering System
table fix area
Type
Power Steering

2.2D 11-Seater 2.2D 8-Seater 2.2D 7-Seater
Rack & Pinion
Motor Drive Power Steering (MDPS)
Brake
table fix area
System
Type (Front / Rear / Parking)

2.2D 11-Seater 2.2D 8-Seater 2.2D 7-Seater
ABS, EBD, BA
Ventilated Disc / Disc / Electronic Parking Brake
Dimension
table fix area
Length/Width/ Height (mm)
Wheel Base (mm)
Wheel , Tire
Fuel Tank Capacity (L)

2.2D 11-Seater 2.2D 8-Seater 2.2D 7-Seater
5,155 / 1,995 / 1,775
3,090
Alloy Wheel, 235 / 60 R18  Alloy Wheel, 235 / 55 R19
72
Suspension
table fix area
Front
Rear

2.2D 11-Seater 2.2D 8-Seater 2.2D 7-Seater
McPherson Struts
Multi-link
Exterior
table fix area
Head Lamp
Day Time Running Light
Outside Mirror
Fog Lamp
Front Wiper
Rear Wiper
Front & Rear Parking Sensors
Rear Combination Lamp
Roof Rails
Rear Back Door

2.2D 11-Seater 2.2D 8-Seater 2.2D 7-Seater
LED Projector, Auto Light and Leveling
LED - Starmap Design
Body Color w/ Electric Mirror, Heated and Power Folding
LED
Auto Wiper w/ Rain Sensor
Standard
Standard
LED
Load Bearing
Smart Power Tailgate
Interior
table fix area
Steering Wheel
Power Window
Front Console
Interior Lamp
Meter Cluster
Front Seats
Heated & Ventilated Function
Rear Seats
Heated & Ventilated Function
Seat Material

2.2D 11-Seater 2.2D 8-Seater 2.2D 7-Seater
Leather, 4 Spoke Sport with Tilt & Audio Control & Paddle Shift
All Window Auto up & Down with Safety
with Two Cup Holder
Bulb Type
12.3" Digital Instrument Cluster
8-way Power with 2-Way Lumbar 8-way Power with 4-Way Lumbar
- Standard
40:20:40 with Center Walk Through 40:20:40 with Detachable 2nd Row Seats (Multi-Function Free Mode) & Long Sliding Relaxation Seats with Center Walk Through, Long/Lateral Sliding
- Standard
Leatherette Standard
Safety & Security
table fix area
Body Structure
Airbags
1st Row Safety Belt
Rear Safety Belt
Parking Assist
Electronic Brake Control
ADAS System
Camera

2.2D 11-Seater 2.2D 8-Seater 2.2D 7-Seater
Advanced High Strength Steel & Press Hot Stamping
8 Airbags, Driver, Knee, Passenger, Center, Side and Curtain Airbags
3 Point ELR
3 Point ELR (Side)  2 point (Center)
8 Sensor and Dynamic Parking Guideline
ABS, ESC, Hill Start Assist
BVM SCC, LFA, LKA, FCA & JX, BCA & BVM
Surround View Monitor
Audio & Speaker
table fix area
Head Unit
Audio Speakers
Audio System

2.2D 11-Seater 2.2D 8-Seater 2.2D 7-Seater
12.3" Infotainment with Wireless Connection (Apple Car Play & Android Auto)
X 6 X 12
Standard BOSE Premium Sound System
Comfort
table fix area
Front Air Conditioning
Rear Air Conditioning
Start Stop and Keyless Entry
Remote Engine Start
Drive Mode
Transmision
Wireless Charging

2.2D 11-Seater 2.2D 8-Seater 2.2D 7-Seater
Dual-Zone Auto
Single-Zone Auto
S
S
4 Driving Mode
e-Shift with Paddle Shift
S

Wheel

Next

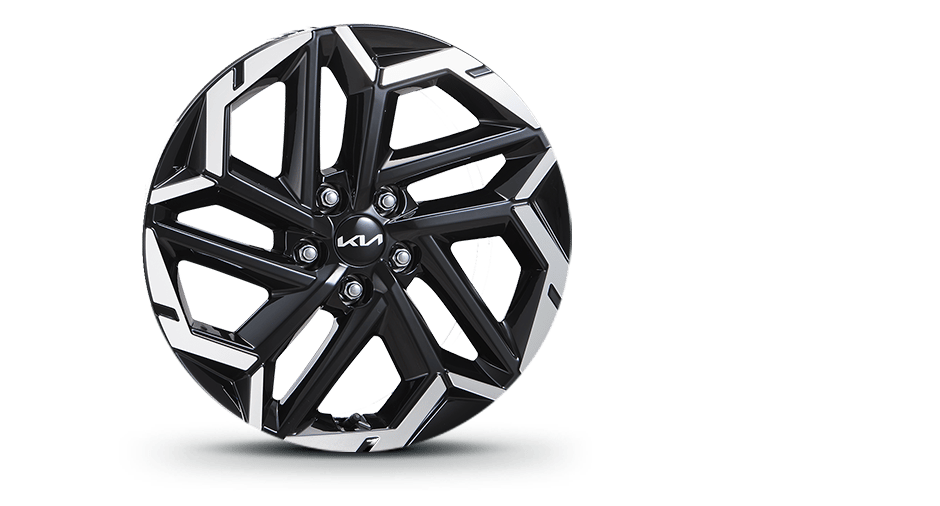

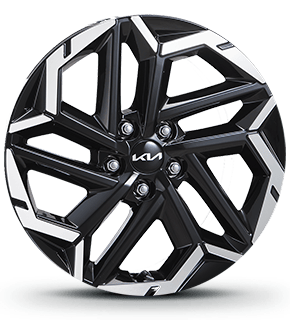

  • 235/60R
    Alloy wheel 18"

    235/60R<br>Alloy wheel 18"

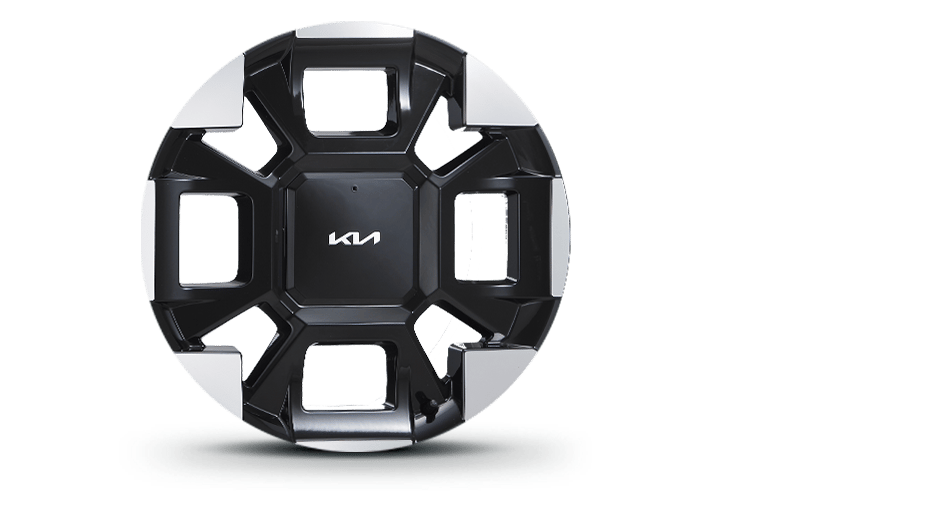

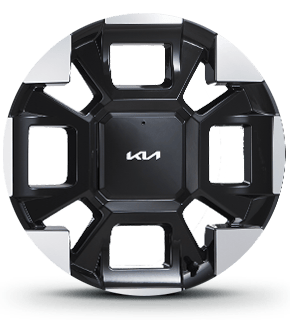

  • 235/55R
    Alloy wheel 19"

    235/55R<br>Alloy wheel 19"
Prev
  • All vehicle models and specification shown are for Malaysia market only. Specification shown may vary from the actual vehicles. Specification may subject to change without prior notice.
  • Pictures shown are for illustration purposes only. It does not depict the actual vehicle.
