Specification

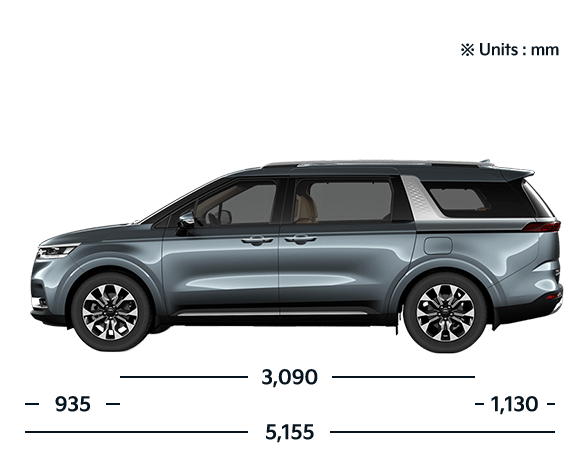

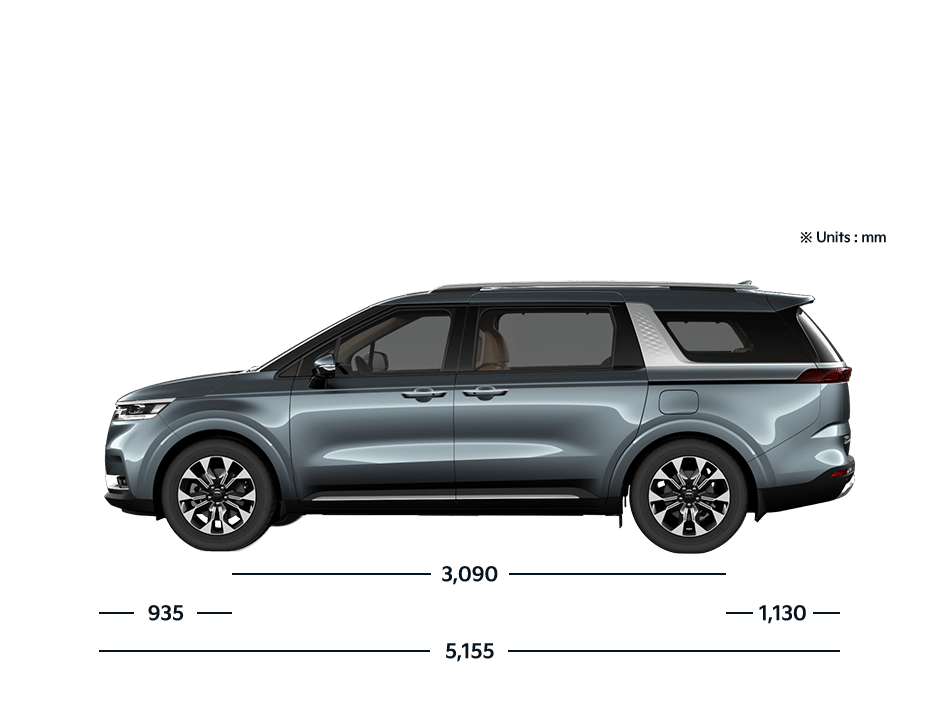

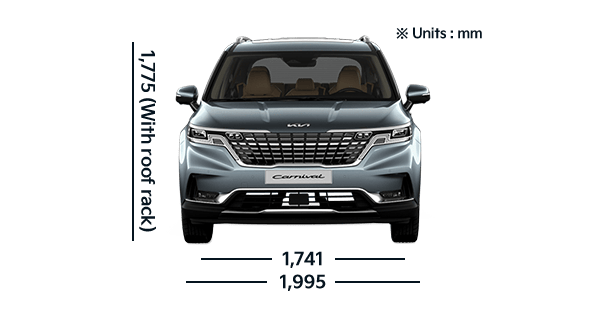

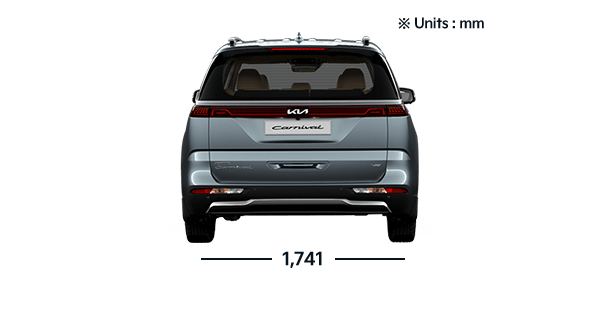

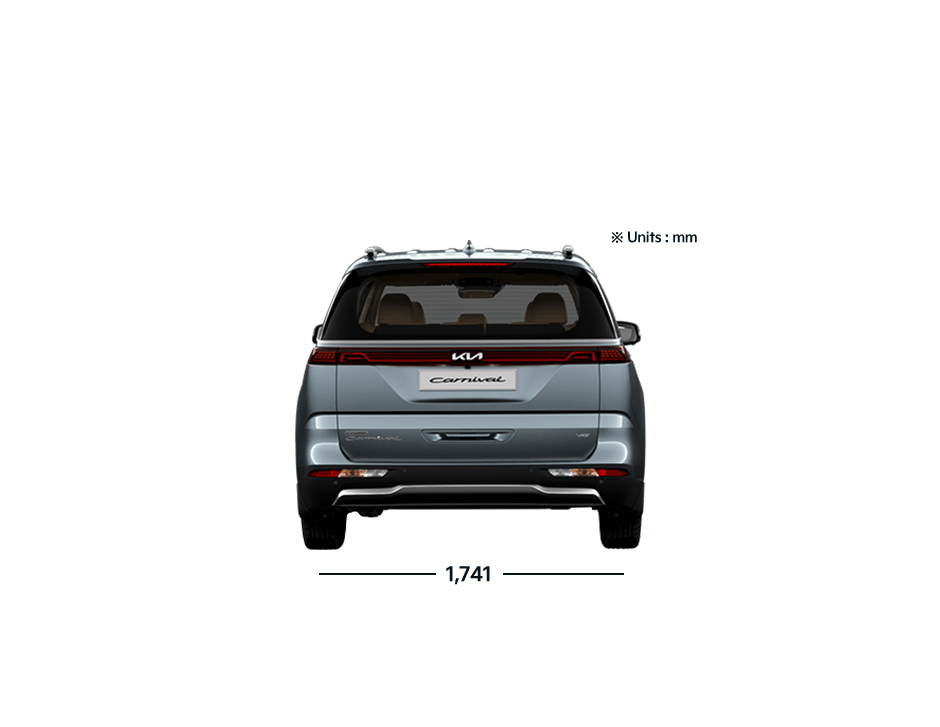

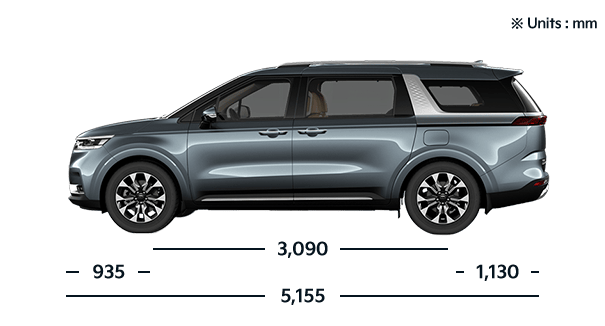

Dimensions (mm)
skip_entry
| Overall length |
|---|
| Overall Width |
| Overall Height |
| Wheelbase |
| Ground Clearance |
| Curb Weight (kg) |
| 2.2D 7-Seater High |
| 5,155 |
| 1,995 |
| 1,775 |
| 3,090 |
| 172 |
| 2,129 |
Powertrain
skip_entry
| Engine Type |
|---|
| Engine Capacity (cc) |
| Maximum Power (Hp / RPM) |
| Maximum Torque (Nm / RPM) |
| Compression Ratio |
| Bore x Stroke (mm) |
| Drivetrain |
| Transmission |
| Fuel Type |
| Recommended Fuel |
| Fuel System |
| Fuel Tank Capacity (Litres) |
| 2.2D 7-Seater High |
| Smartstream 2.2L Turbo, CRDi, 4 Inline Cylinders, DOHC (D4HE) |
| 2,151 |
| 199 / 3,800 |
| 440 / 1,750 - 2,750 |
| 16.0 : 1 |
| 83.0 x 99.4 |
| 2WD |
| 8-Speed Automatic (E-Shift) |
| Diesel |
| Euro 5 (B7) |
| Common Rail Direct Injection (CRDi) |
| 72 |
Chassis
skip_entry
| Brake Type (Front / Rear) |
|---|
| Suspension Type (Front / Rear) |
| Steering Type |
| Wheel Type |
| Wheel Size |
| Tyre Size |
| Wheel Type (Spare) |
| 2.2D 7-Seater High |
| Ventilated Discs / Solid Discs |
| MacPherson Struts / Multi-link |
| Motor Driven Power Steering (MDPS) |
| Alloy |
| 18" x 7.0J |
| 235/60 R18 |
| Temporary |
Exterior
skip_entry
| Front Headlights |
|---|
| Front Headlights On/Off Function |
| Daytime Running Lights |
| Rear Combination Taillights |
| Front Fog Lights |
| Rear Fog Lights |
| Windshield Wipers (Rain Sensing / Intermittent Function) |
| Rear Wiper/Washer |
| Smart Keyless Entry |
| Outer Rearview mirrors (with Power Adjustable / with Power Folding / with Turn Indicators / with Heated Function) |
| Smart Power Sliding Doors |
| Power Sunroof with Sliding & Tilt Glass |
| Smart Power Tailgate |
| Parking Sensors (Front / Rear) |
| Roof Rails |
| 2.2D 7-Seater High |
| Dual LED |
| Auto |
| LED |
| LED |
| LED |
| Bulb |
| • / Variable |
| • |
| • |
| • |
| Dual Power Sliding |
| Dual Power Sunroof |
| • |
| x 4 / x 4 |
| • |
Interior
skip_entry
| Engine Start / Stop Button |
|---|
| Electronic Parking Brake (EPB) |
| Steering Wheel Mounted Switches (Audio Control / Bluetooth® Hands-Free) |
| Cruise Control |
| Rear View Mirror |
| Instrument Cluster |
| One Touch (Up and Down) Power Window with Anti-Pinch |
| Steering Wheel Material |
| Steering Wheel Adjustment |
| Paddle Shifters |
| Drive Mode Selection Switch |
| Front Air-Conditioning |
| Rear Air-Conditioning |
| 12-Volt Power Outlets |
| Wireless Charger |
| Interior Lighting (Map Lights / Cabin Light / Cargo Area Light) |
| Center Console Armrest with Covered Storage Bin |
| Seatback Pockets |
| Sunvisor with Vanity Mirror |
| Rear Sunshade |
| 2.2D 7-Seater High |
| • |
| • |
| • |
| • |
| with Auto-Dimming |
| 12.3" Digital Instrument Cluster |
| All Windows |
| Leather |
| Tilt & Telescopic |
| • |
| • |
| Dual-Zone Auto |
| Single-Zone Auto |
| x 2 |
| • |
| LED |
| • |
| Driver & Passenger |
| with Light |
| 2nd & 3rd Row |
Seats
skip_entry
| Seating Capacity |
|---|
| Front Seats - Driver - Adjustment |
| Front Seats - Driver - Memory Function |
| Front Seats - Driver - Heated Function |
| Front Seats - Driver - Ventilation Function |
| Front Seats - Front Passenger - Adjustment |
| Rear Seats - 2nd Row - Adjustment |
| Rear Seats - 3rd Row |
| Rear Seats - 4th Row |
| Seat Material |
| 2.2D 7-Seater High |
| 7 |
| 8-Way Power Adjustment, with 4-Way Lumbar Adjustment |
| • |
| Front & Rear |
| Front & Rear |
| 8-Way Power Adjustment |
Premium Relaxion Seats with Center Walk Through, and Long/Lateral Sliding |
| 60:40 Pop-Up & Sinking Seats |
| - |
| Leather |
Infotainment
skip_entry
| Infotainment System with Voice Recognition |
|---|
| Apple CarPlay® & Android Auto™ Function ** |
| AM / FM Tuner |
| Bluetooth® Hands-Free Phone and Audio Capability |
| Audio Speakers |
| Speaker Technology |
| USB Ports |
| Surround View Monitor (SVM) |
| 2.2D 7-Seater High |
| 12.3" Capacitive Touch-Screen |
| • |
| • |
| • |
| x 12 |
| Bose® |
x 7 |
| • |
Safety
skip_entry
| SRS Airbags (Front (Driver & Passenger) / Side (Front) / Curtain (Front & Rear) / Knee (Driver Only)) |
|---|
| Anti-Lock Braking System (ABS) |
| Electronic Brake-Force Distribution (EBD) |
| Brake Assist (BA) |
| Electronic Stability Control (ESC) |
| Traction Control System (TCS) |
| Multi-Collision Brake Control (MCB) |
| Hill-Start Assist Control (HAC) |
| Auto Hold Function |
| Auto Door Lock |
| Rear Occupant Alert (ROA) |
| Safe Exit Asisst (SEA) |
| ISOFIX Child Restraint Anchor Points and Top Tethers |
| Engine-Immobilizer |
| 2.2D 7-Seater High |
| • |
| • |
| • |
| • |
| • |
| • |
| • |
| • |
| • |
| • |
| • |
| • |
| • |
| • |
Advanced Safety Technologies
skip_entry
| High Beam Assist (HBA) |
|---|
| Blind-Spot Collision Warning (BCW) |
| Blind-Spot Collision-Avoidance Assist (BCA) |
| Rear Cross-Traffic Collision-Avoidance Assist (RCCA) |
| Lane Keeping Assist (LKA) |
| Driver Attention Warning (DAW) |
| Forward Collision-Avoidance Assist (FCA) |
| Lane Following Assist (LFA) |
| Smart Cruise Control (SCC) |
| 2.2D 7-Seater High |
| • |
| • |
| • |
| • |
| • |
| • |
| • (with Junction Turning) |
| • |
| • |
- Specifications of the vehicle may vary by region.
-
All information and illustrations are based on data available at the time of publication and subject to change without notice.
Contact your local Kia dealer for current information.
