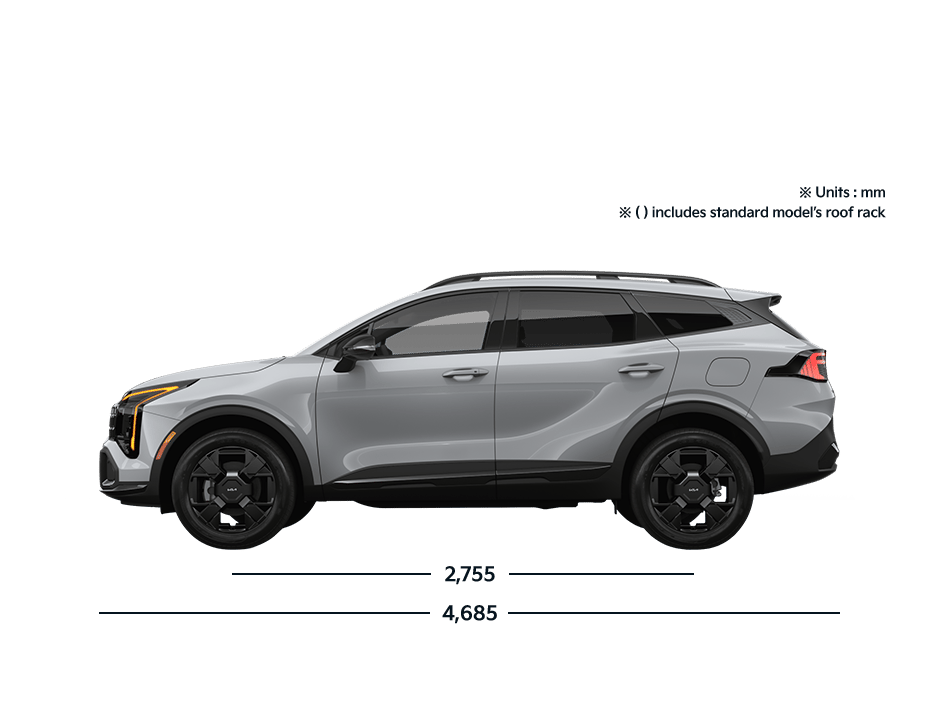

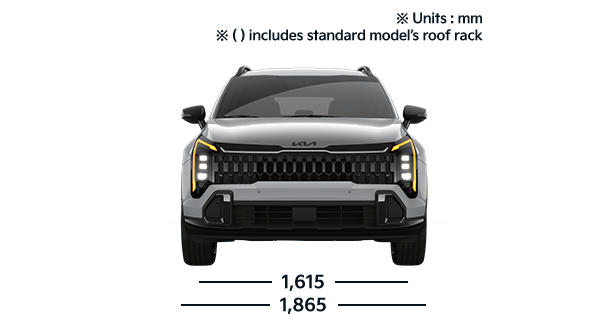

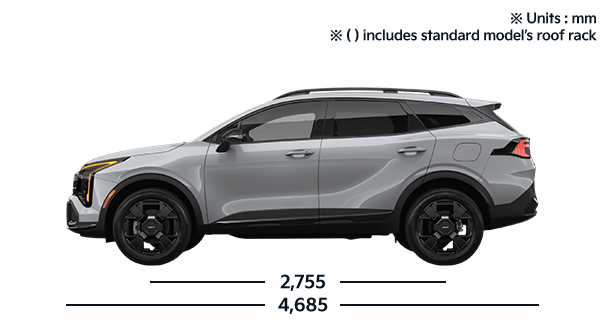

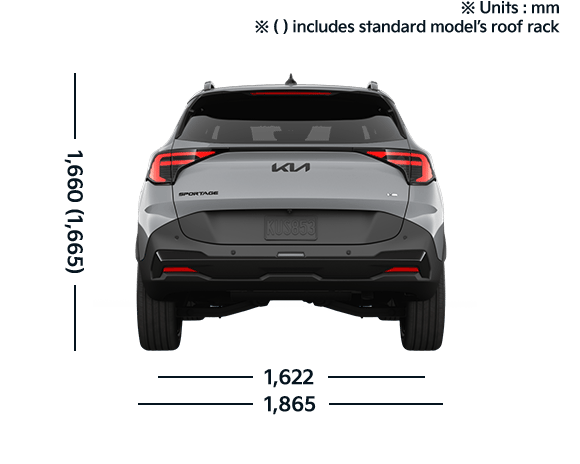

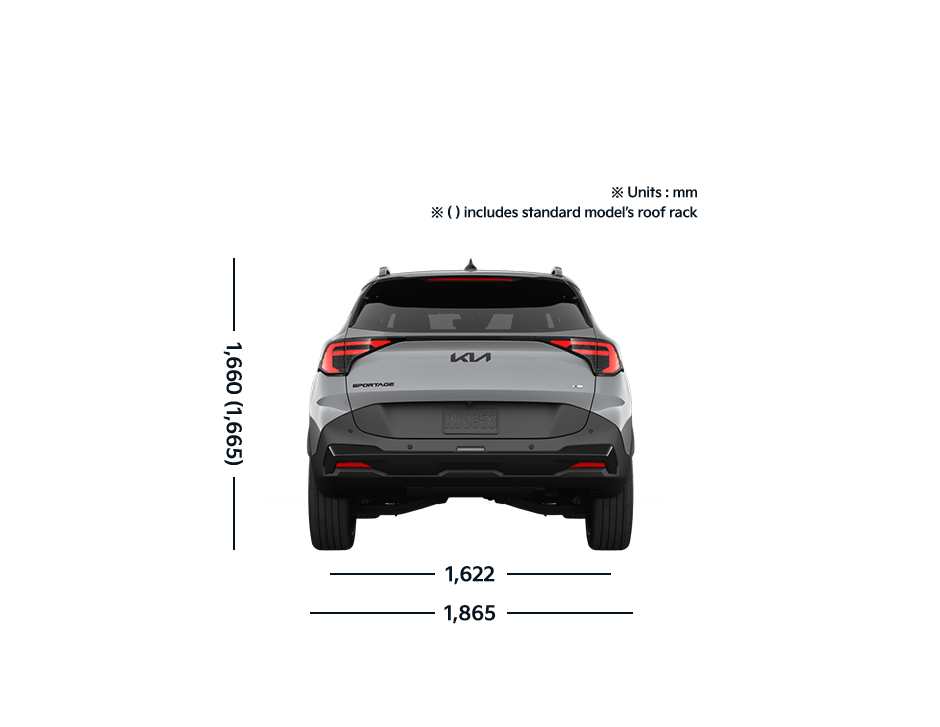

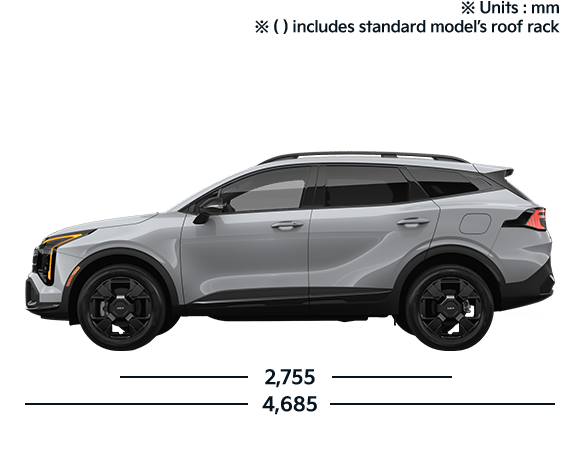

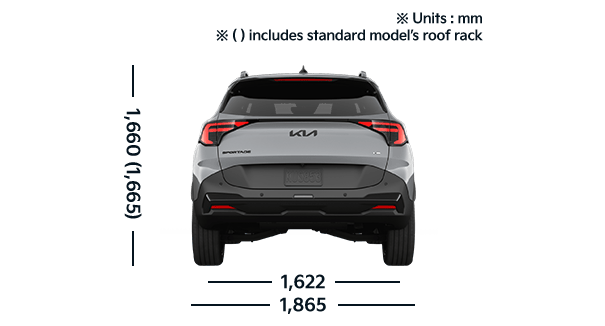

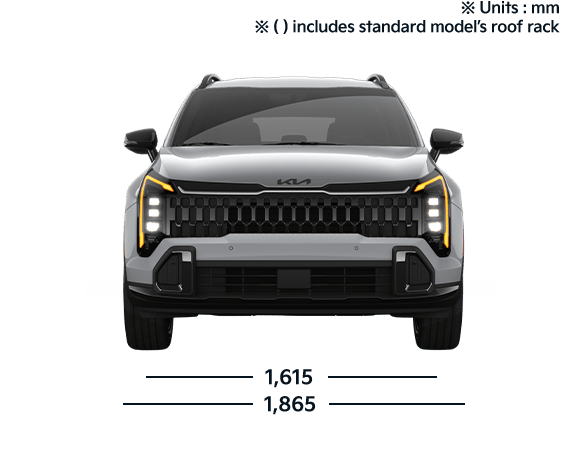

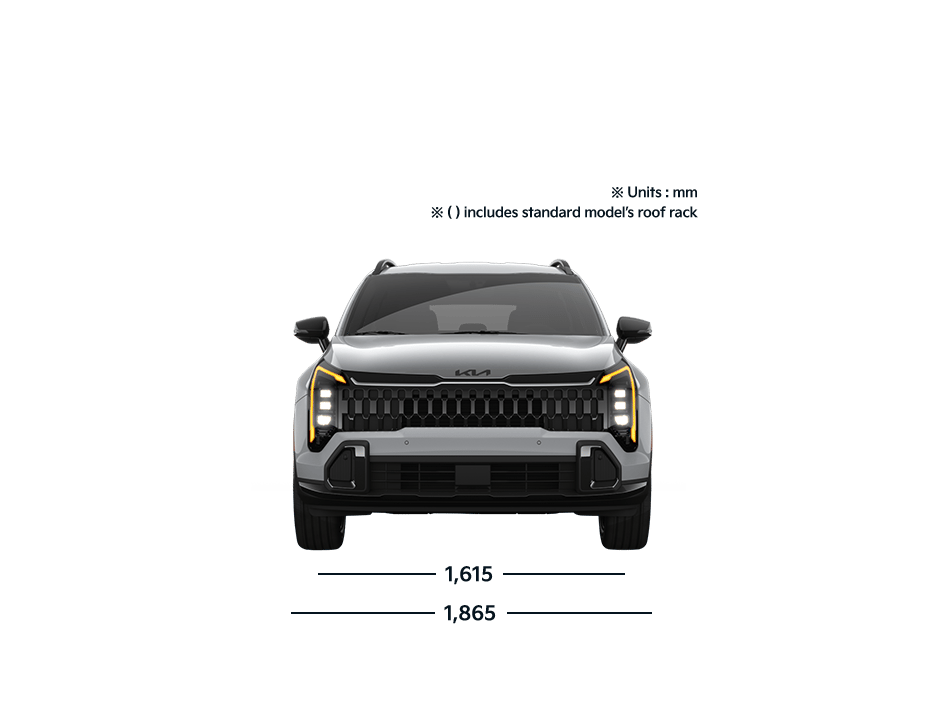

Dimensions
table fix area
Car
Overall length
Overall width
Overall height
Wheelbase
Wheelbase (Front)
Wheelbase (Rear)
Overhang (Front)
Overhang (Rear)
Headroom (1st/2nd)
Legroom (1st/2nd)
Fuel tank (ℓ)

Sportage

4,440

1,855

1,635

2,640

1,597 (18")

1,598 (18")

890

910

992/977 (Normal roof)

1,051/963

55

Engine

Next

  • Theta II 2.4 D-CVVT gasoline engine

    Engine Type
    • Displacement(cc) 2,359cc
    • Max. Power (ps / rpm) 177/6,000 (ps/rpm)
    • Max. Torque (kg·m / Rpm) 23.1/4,000 (kg·m / Rpm)
    • 0 - 100 kph (sec.) (sec.)
    Theta II 2.4 D-CVVT gasoline engine

  • NU 2.0 D-CVVT gasoline engine

    Engine Type
    • Displacement(cc) 1,999cc
    • Max. Power (ps / rpm) 158/6,200 (Euro 2) (ps/rpm)
    • Max. Torque (kg·m / Rpm) 19.6/4,000 (Euro 2) (kg·m / Rpm)
    • 0 - 100 kph (sec.) (sec.)
    NU 2.0 D-CVVT gasoline engine
  • R 2.0 VGT diesel engine
    Engine Type
    • Displacement(cc) 1,995cc
    • Max. Power (ps / rpm) 177/4,000 (Euro 2/3) (ps/rpm)
    • Max. Torque (kg·m / Rpm) 39.0/1,800~2,500 (Euro 2/3) (kg·m / Rpm)
    • 0 - 100 kph (sec.) (sec.)
    R 2.0 VGT diesel engine
Prev
Engine
table fix area
Displacement(cc)
Max. Power (ps/rpm)
Max. Torque (kg • m/rpm)

Theta II 2.4 D-CVVT Gasoline engine

Nu 2.0 D-CVVT Gasoline engine

R 2.0 VGT Diesel engine
2,359 1,999 1,995

177/6,000

158/6,200 (Euro 2)

154/6,200 (Euro 3/4/5)

177/4,000 (Euro 2/3)
184/4,000 (Euro 4/5)

23.1/4,000

19.6/4,000 (Euro 2)

19.5/4,700 (Euro 3/4/5)

39.0/1,800~2,500 (Euro 2/3)
40.0/1,800~2,500 (Euro 4/5)

Wheel

Next

  • 16-inch alloy wheel

    16-inch alloy wheel

  • 17-inch alloy wheel

    17-inch alloy wheel
Prev
  • All information and illustrations are based on data available at the time of publication and subject to change without notice.
    Contact your local Kia dealer for current information.
