Specifications

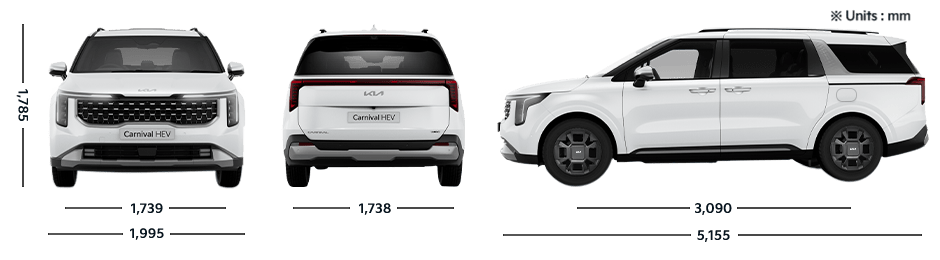

Dimensions

R1_W_Specification_The-new-Kia-Carnival_9 R1_T_Specification_The-new-Kia-Carnival_6 R1_Mo_Specification_The-new-Kia-Carnival_3
R1_T_Specification_The-new-Kia-Carnival_5 R1_Mo_Specification_The-new-Kia-Carnival_2
R1_W_Specification_The-new-Kia-Carnival_10 R1_T_Specification_The-new-Kia-Carnival_7 R1_Mo_Specification_The-new-Kia-Carnival_4
Dimensions(mm)
table fix area
Overall Length (mm)
Overall Width (mm)
Overall Height (mm)
Wheelbase (mm)
Wheel tread (FR/RR)
Overhang (FR/RR)
Minimum Ground Clearance (mm)
HEV 7-seat Premium HEV 7-seat Luxury
5,155
1,995
1,785
3,090
1,739 / 1,738
935 / 1,130
172
Powertrain
table fix area
Combined HEV System Output: Max. power (ps)
Combined HEV System Output: Max. torque (Nm)
Engine Type
Displacement (cc)
Max Power, HP (PS) / rpm
Max Torque, Kg-m / rpm
Bore x Stroke (mm)
Compression ratio
Motor Type
Motor, Max. power (kW)
Motor, Max. torque (Nm)
Drive Mode
Hybrid Battery System Type
Fuel tank capacity (l)
Transmission Type
HEV 7-seat Premium HEV 7-seat Luxury
245
367
Smartstream Turbocharged GDi 4-Cylinder
1,598
180/ 5,500
265/ 1,500-4,500
75.6 X 89.0
10.5 : 1
Permanent Magnet Synchronous Motor
54
304
ECO/ SPORT/ SMART
Lithium-Ion Battery
72
6-speed Automatic Transmission
Chassis
table fix area
Undercarriage system
Rear suspension
Front brake system
Wheel Type
Tyre size
Temporary Mobility Kit
HEV 7-seat Premium HEV 7-seat Luxury
McPherson strut Coil spring
Multi-Link Coil Spring
Disc brakes with heat sinks
Alloy
235/55 R19
● ●
Exterior
table fix area
LED Headlamps with Auto light function and LED Day Time Running Lights
LED front fog lamps
LED Rear Combination Lamp
Rear Spoiler with stop lamp
Dual Sunroof
Sliding Doors Left - Right with Smart Power Sliding Door
Smart electric trunk lid (automatic opening-closing) with Smart Tailgate system
Roof rack
Automatic Wiper System (Rain Sensor)
Electric adjustment and folding outside mirrors
Smart Key
HEV 7-seat Premium HEV 7-seat Luxury
Multi Focus Reflector Type Projection Type
- ●
● ●
● ●
- ●
● ●
● ●
● ●
● ●
● ●
● ●
Interior
table fix area
Seats
Leather seat
Driver and Front passenger power adjustment seat with 8-direction
Lumbar support for driver's seat
Driver memory seat and Welcome seat for driver
Power switch for driver and 2nd row passengers to adjust front passenger seat
2nd Row Relaxation Seats with power reclining, Leg Support, with one-touch relaxation mode
Front and 2nd Row Relaxation Ventilated and Heated Seats
2nd Row Captain Seat
2nd Row Detachable Seats
Sunshade on 2nd row and 3rd row windows
Flat Folding 3rd Row Seats (60:40 Split)
Digital Supervision Display, 12.3" TFT LCD Display
Head-Up Display (HUD 11")
Cabin Ambient Mood lamp
Leather wrapped steering wheel
Multi-function steering wheel with audio switch
Tilt and Telescopic adjustment steering wheel
Shift by Wire geat selector with Paddle shifter for Regenerative barking control
Auto dimming rear view mirror
Digital rear view mirror
Automatic Climate Control System (2 zones - Front Dual) with A/C vents for 2nd row seats
Rear Climate Control panel
Sunvisor (Cloth type) with Vanity mirror and illumination lamps
Auto Up&Down power windows with Jam protection
Interior room lamp
HEV 7-seat Premium HEV 7-seat Luxury
7 7
Black Artificial Leather Seat Black & Tuscan Umber Two-Tone Leather Seats
● ●
2-direction 4-direction
- ●
● ●
- ●
- ●
● -
● -
● ●
● ●
● ●
- ●
- ●
● ●
● ●
● ●
● ●
● ●
- ●
● ●
● ●
● ●
● ●
● LED
Infotainment
table fix area
Infotainment : 12.3” TFT LCD display with touchscreen
6 Audio speakers
12 Bose speakers
Wireless phone connection Android AutoTM / Apple Carplay®
Wireless phone connection (Bluetooth)
Voice Control (Connect via Android Auto/Apple Carplay)
USB Type-C Charger
Wireless Charger
HEV 7-seat Premium HEV 7-seat Luxury
● ●
● -
- ●
● ●
● ●
● ●
6 6
● ●
Safety
table fix area
Dual front and side airbags
Side Curtain airbags
Driver knee protection airbag
Center Side airbag
ABS+EBD brake system
BAS (Brake Assist System)
Electronic Stability Control (ESC)
Auto Brake Hold
Electric Parking Break (EPB)
Hill-start Assist Control (HAC)
Surround View Monitor (SVM)
Parking Distance Warning: Front, Side and Rear
Immobilizer
Central locking control switch
3-point front seat belt ELR adjustable high - low level
2nd row seat belt and 3rd row seat belt
Child seat hook (ISOFIX) on 2nd row seats and 3rd row seat belt
Rear Occupant Alert
HEV 7-seat Premium HEV 7-seat Luxury
● ●
● ●
● ●
● ●
● ●
● ●
● ●
● ●
● ●
● ●
● ●
● ●
● ●
● ●
● ●
● ●
● ●
● ●
ADAS
table fix area
Smart Cruise Control with Stop & Go (SCC)
High Beam Assist (HBA)
Forward Collision Avoidance Assist (FCA)
Blind-Spot Collision-Avoidance Assist (BCA)
Blind-Spot View Monitor (BVM)
Rear Cross Traffic Collision Avoidance (RCCA)
Lane Following Assist and Lane Keeping Assist (LFA & LKA)
Reverse Parking Collision-Avoidance Assist (PCA-R)
Safe Exit Assist (SEA)
HEV 7-seat Premium HEV 7-seat Luxury
● ●
● ●
● ●
● ●
● ●
● ●
● ●
● ●
● ●

Wheels

Next

  • 19" Alloy Wheels

    19" Alloy Wheels
Prev
  • Contact your local Kia dealer for current information.
  • All information and illustrations are based on data available at the time of publication and subject to change without notice.
