PV5 Cargo

The Kia PV5 Cargo

Bigger space. Faster charge. Smart cargo space.
Contact usDownload a Brochure
  • BiggerBigger Cargo Space419mm low step-in, 4,420L capacity.
  • FasterFaster Charging Power384km* range. 30-min* fast charge.
  • SmarterDesigned for efficient operation

  • Top view of the Kia PV5 Cargo driving on highwayTop view of the Kia PV5 Cargo driving on highway
Built for every business.
The Kia PV5 Cargo adapts to logistics, small businesses, and service entrepreneurs alike.

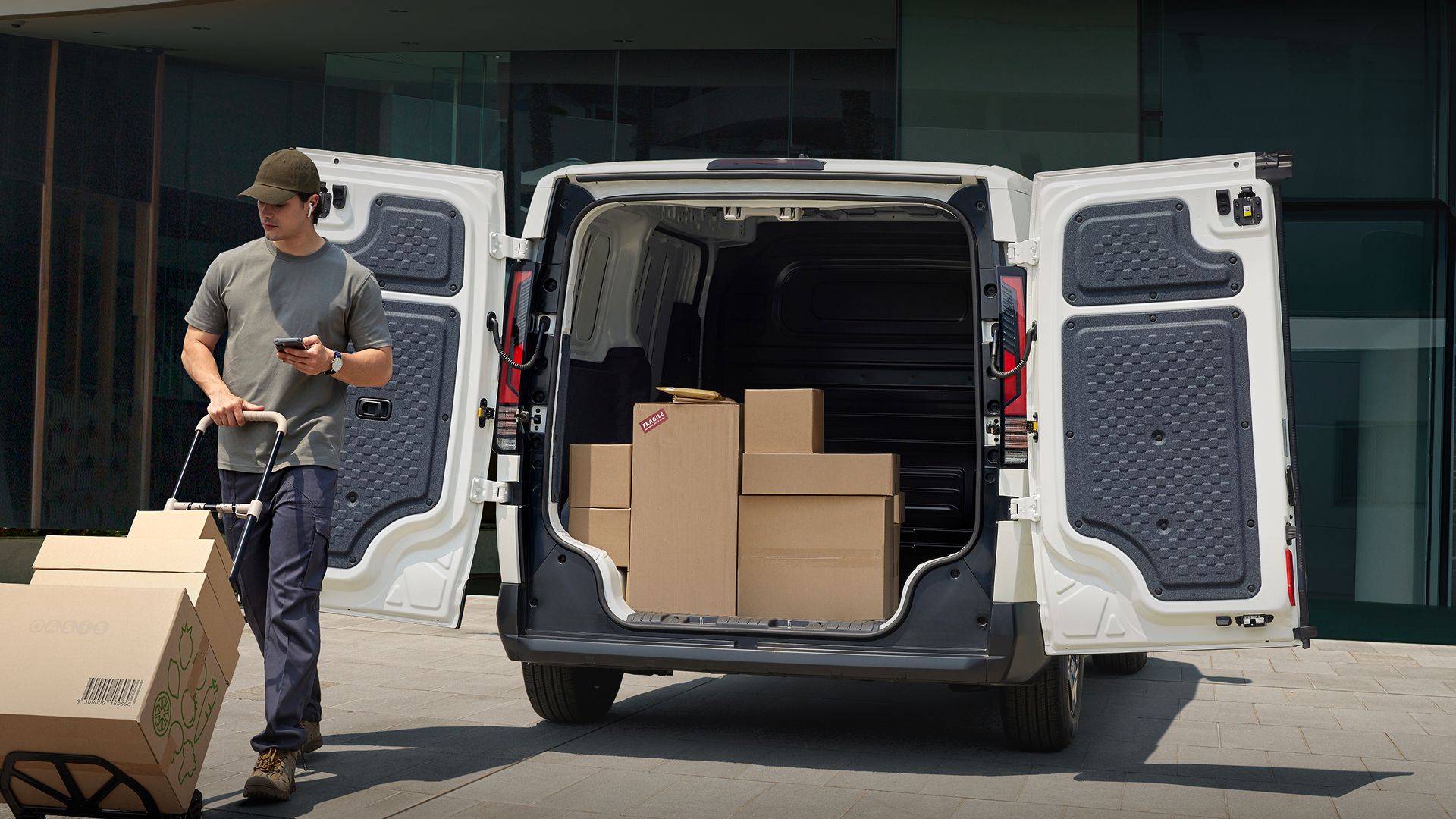

Delivery worker unloading boxes from the Kia PV5 Cargo rear
Smarter logistics, faster last-mile.

From parcels at dawn to express at dusk, PV5 Cargo keeps deliveries flowing smooth. Up to 4,420 L—fits two Euro pallets, 419 mm low step-in for faster loading, 30-min fast charging for uptime.

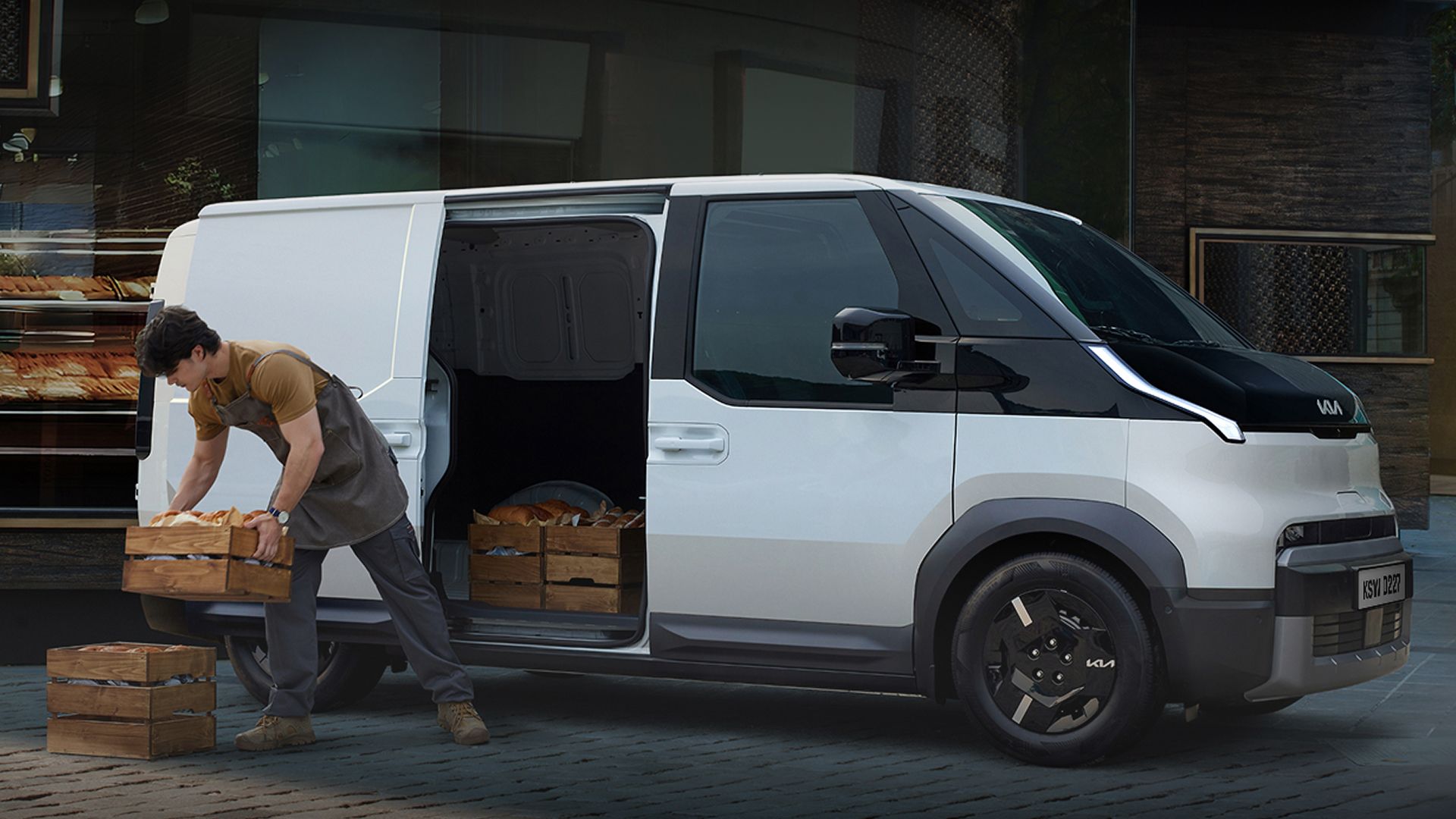

Worker unloading bread crates from the Kia PV5 Cargo side door
Your everyday delivery partner.

With a flat floor cargo space and 1,520 mm height, PV5 Cargo adapts. 51.5 kWh battery, with an 8-year or 160,000 km High Voltage Battery Warranty, whichever comes first.

Female worker carrying toolbox beside the Kia PV5 Cargo with rear storage open
Secured, packed, and ready to work.

The Kia PV5 Cargo interior converted into mobile workshop with tools and equipment
Power anywhere, work everywhere.

Turn PV5 Cargo into a mobile workshop with V2L power and long-hour batteries. Side sliding door ease access, with up to 4,420 L of cargo space for every job.

01
04
  • Rear view of the Kia PV5 Cargo in low light, emphasizing the tail lampsRear view of the Kia PV5 Cargo in low light, emphasizing the tail lamps
Designed for work, styled for tomorrow.
Modern, practical design for today’s business meets
the style of tomorrow’s EVs in PV5 Cargo.

Bold front, clear identity.

Futuristic Tiger Face with a clean upper and robust lower. Signature Star Map lighting flows into the A-pillar for a sleek and extended profile.
Full front view of the Kia PV5 CargoFull front view of the Kia PV5 Cargo

Maximized Space, Cargo Room.

Versatile space of 4,420 L with a 419 mm low step-in and up to 790 kg payload—plus LED lighting and protective trims.

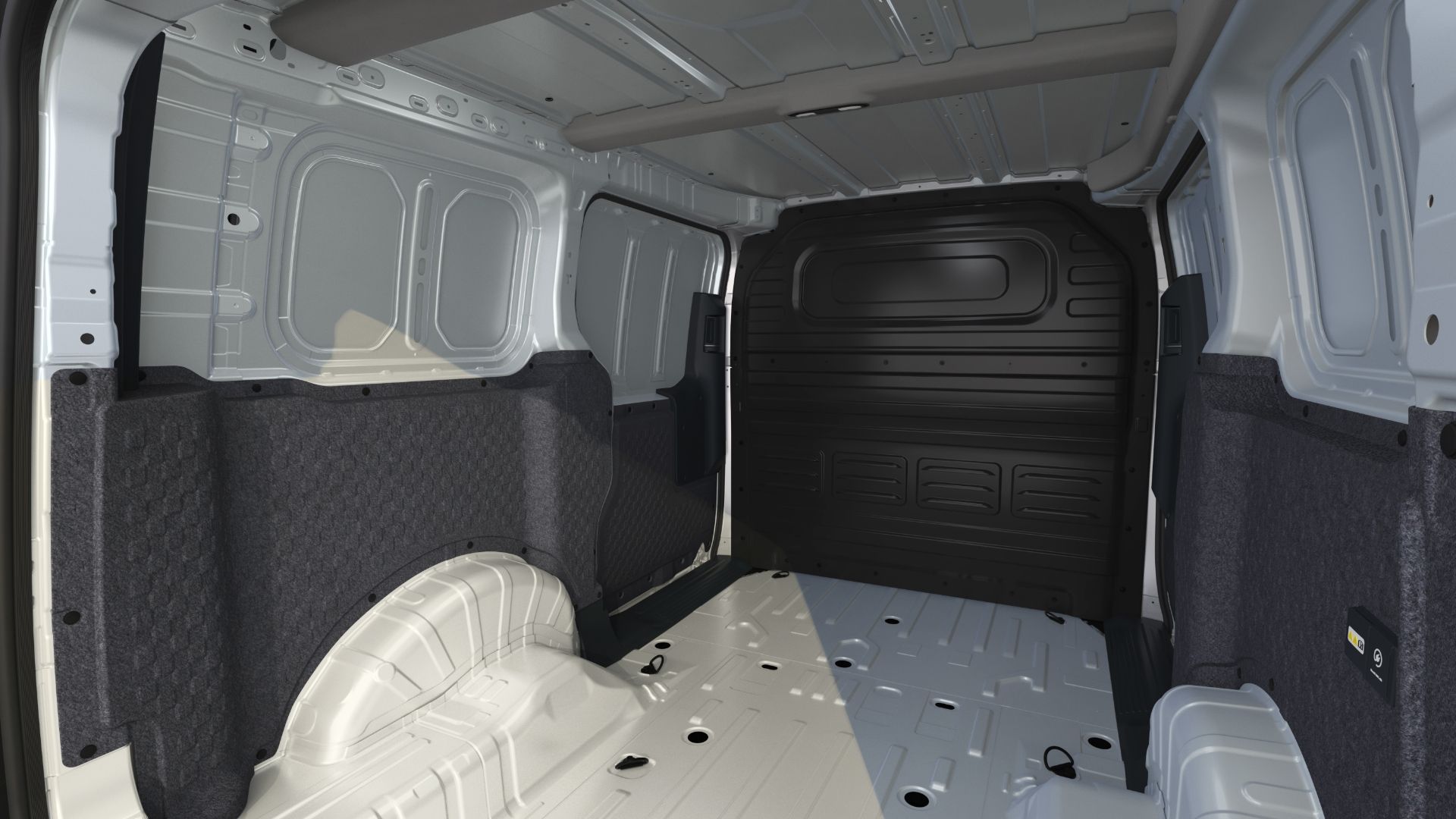

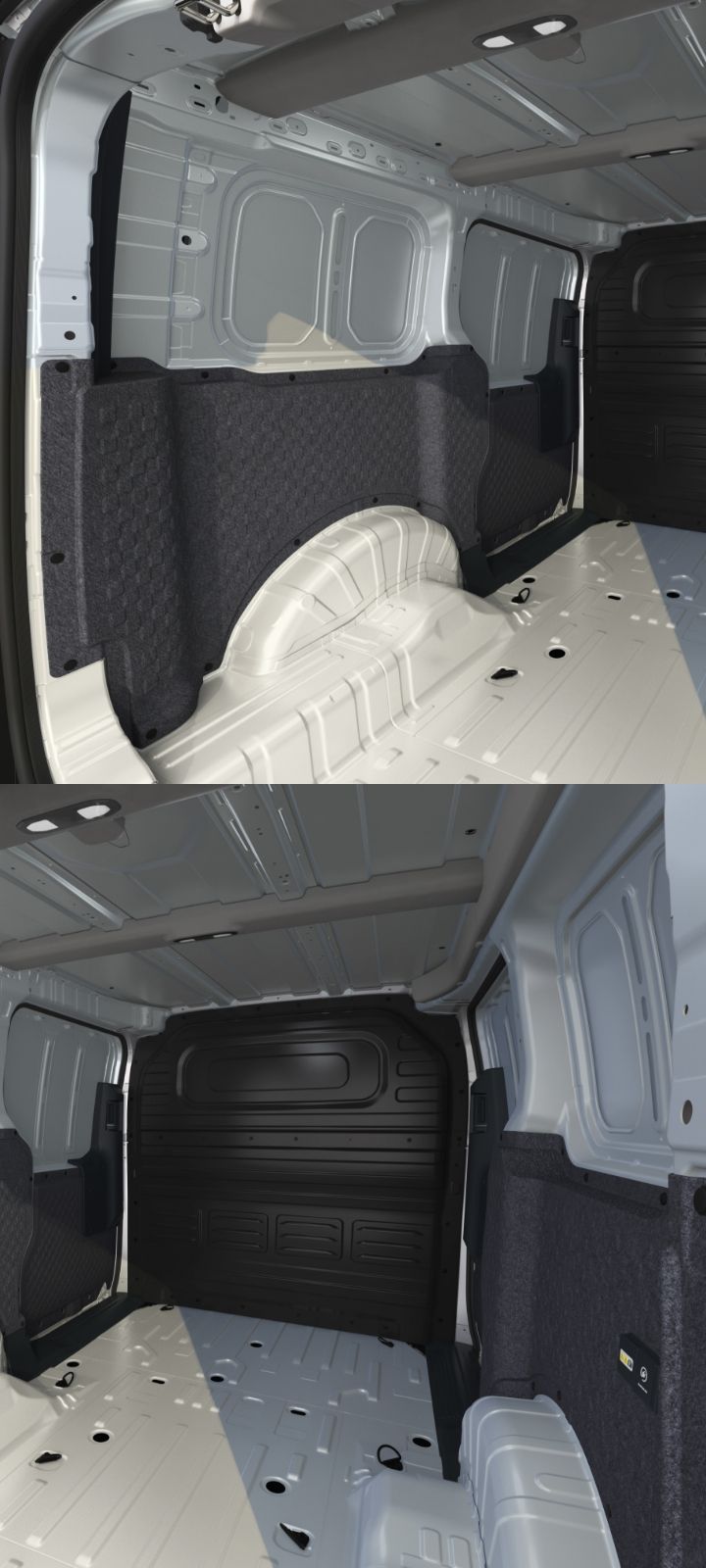

Interior view of the Kia PV5 Cargo spacious cargo roomInterior view of the Kia PV5 Cargo spacious cargo room

Rear view of the Kia PV5 Cargo with opened cargo doorsRear view of the Kia PV5 Cargo with opened cargo doors

Experience The Kia PV5 Cargo in 3D.

View every detail of PV5 Cargo—explore exterior, interior, and cargo space. Tap infopins for more information.
33

Built to go smarter, faster, farther.

An integrated electric drive for smooth acceleration and longer range.
Kia PV5 electric vehicle platform with chassis and wheels
  • Low battery ground clearance175mmOptimized structure to protect the system from physical impact.
  • Peak motor output89.4 kWStrong performance with 89.4 kW power and 250 Nm torque.
  • High-capacity battery51.5 kWhLong-range efficiency with up to 51.5 kWh NCM battery system.

Built to last and ready to go.

Long-term coverage. Lasting durability. Flexible charging. Battery built for everyday reliability.
  • High Voltage Battery warranty8 yearsor 160,000 km. whichever comes first¹
  • Max range (NEDC)384 km²Drive farther on a single charge with confidence.
  • 10% - 80% charging speed30 min³Recharge fast. Ready to go.

Safety and driving dynamics.

The Kia PV5 Cargo brings confidence to every drive with advanced safety and assist features. Collision avoidance, lane keeping, parking sensors, and a reversing camera keep you protected, speed limit assist, and regenerative braking paddles add smarter, safer control.

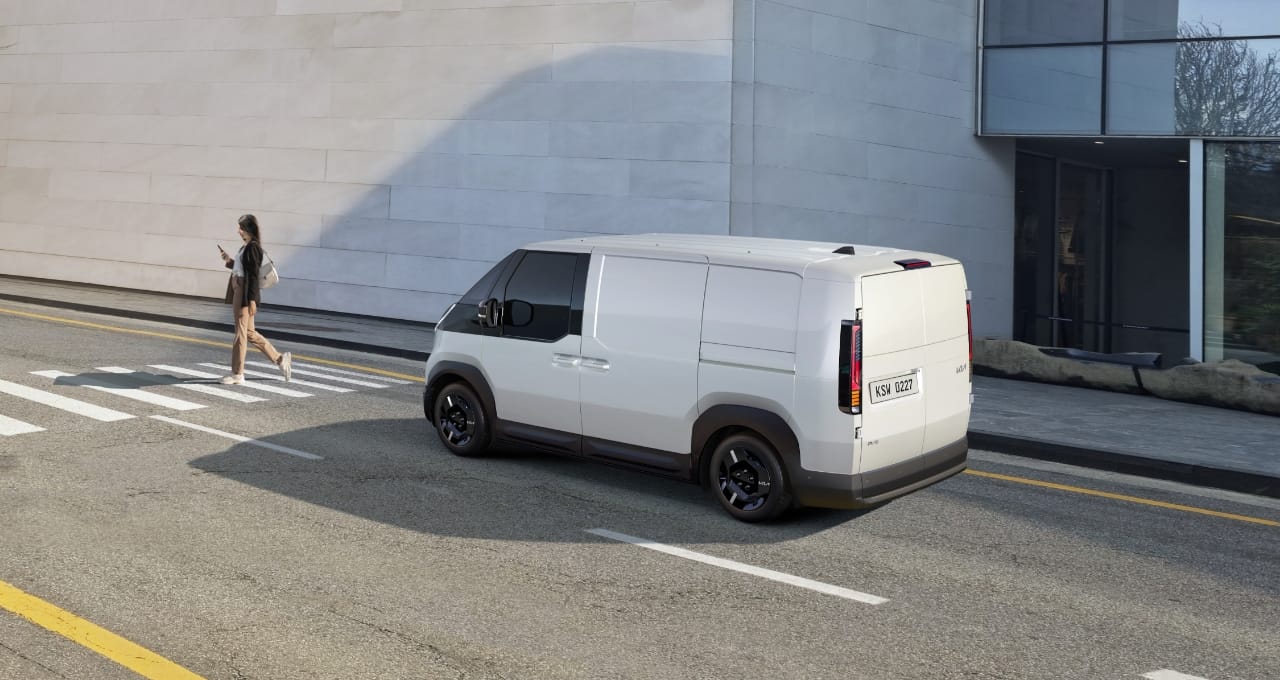

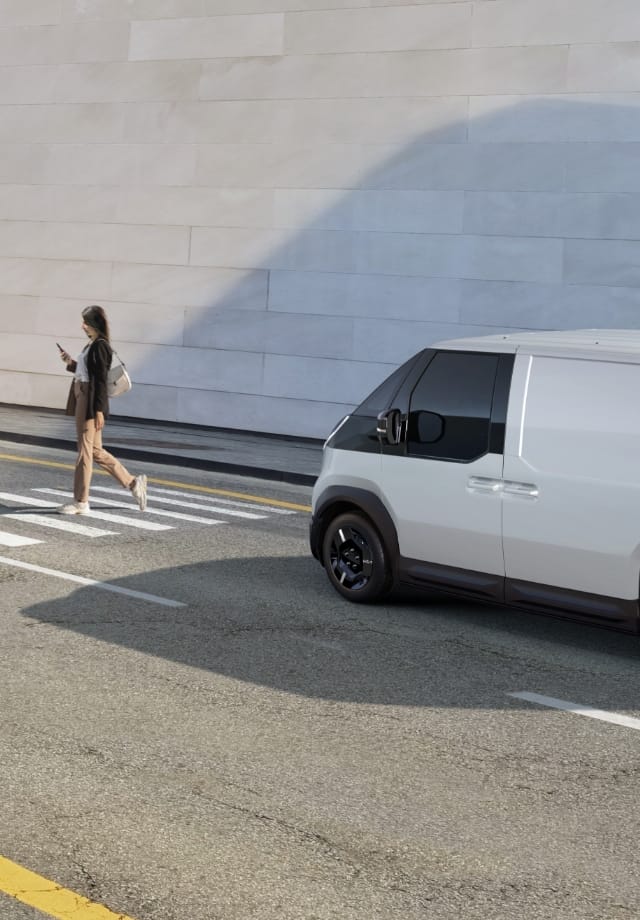

The Kia PV5 Cargo stopped at crosswalk while a pedestrian walks byThe Kia PV5 Cargo stopped at crosswalk while a pedestrian walks by
FCA, Forward Collision-Avoidance Assist

Helps detect vehicles or obstacles ahead and assists with braking or steering control to reduce collision risks—especially during lane changes or right turns at intersections.

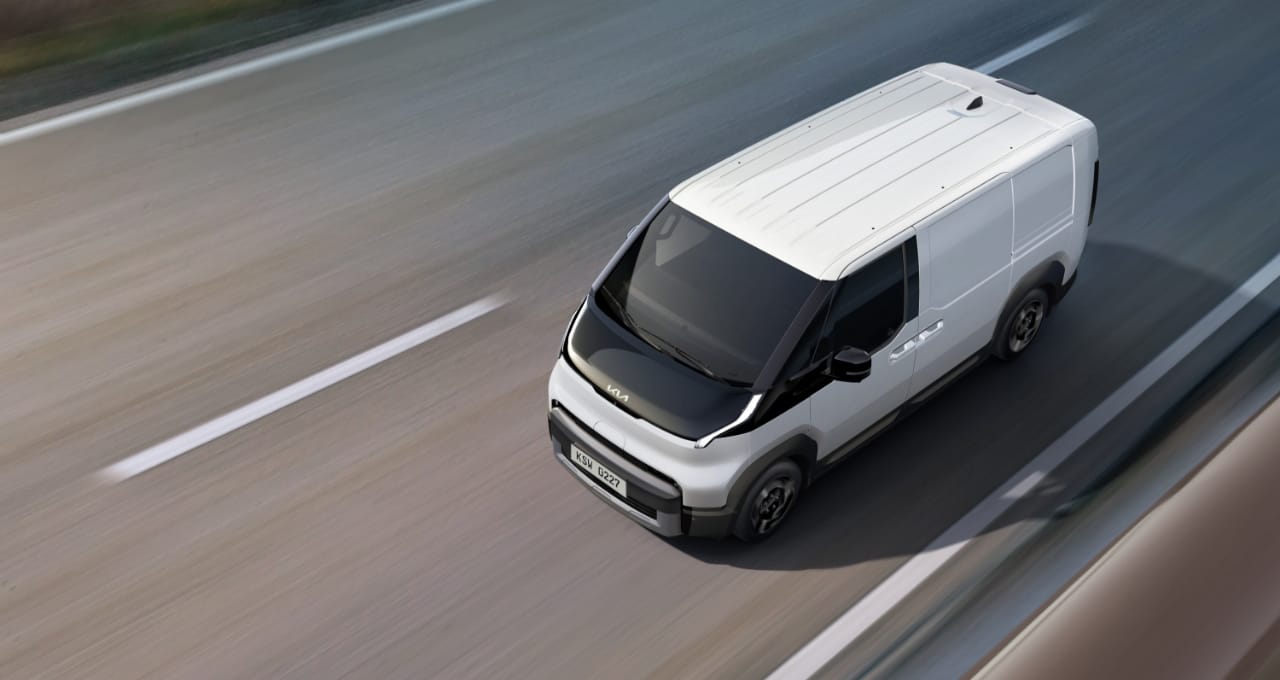

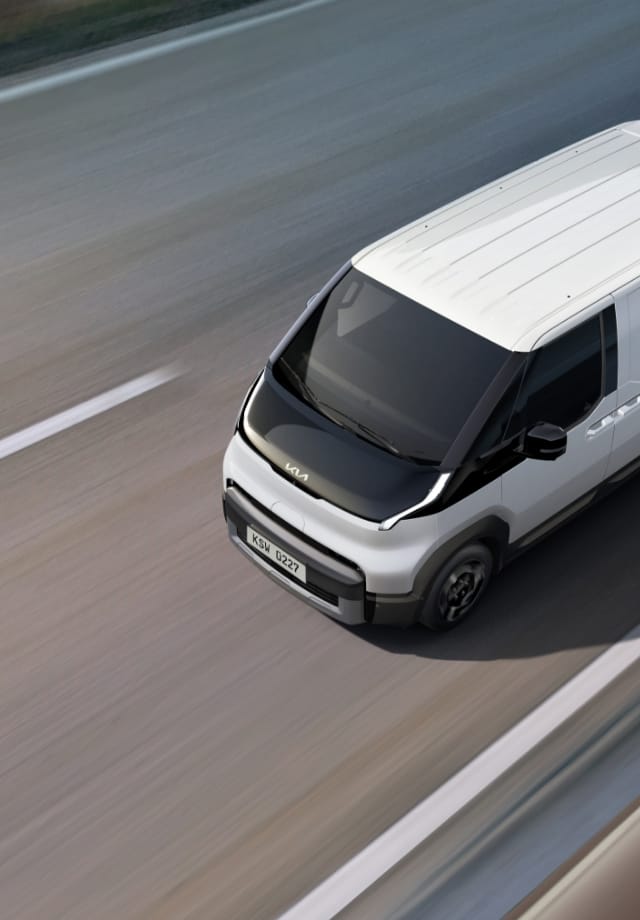

Top view of the Kia PV5 Cargo driving on highwayTop view of the Kia PV5 Cargo driving on highway
LFA, Lane Following Assist

Lane-keeping assist with steering angle control—now with improved lane-centering.

The Kia PV5 Cargo stopped at crosswalk while a pedestrian walks byThe Kia PV5 Cargo stopped at crosswalk while a pedestrian walks by
FCA, Forward Collision-Avoidance Assist

Helps detect vehicles or obstacles ahead and assists with braking or steering control to reduce collision risks—especially during lane changes or right turns at intersections.

Top view of the Kia PV5 Cargo driving on highwayTop view of the Kia PV5 Cargo driving on highway
LFA, Lane Following Assist

Lane-keeping assist with steering angle control—now with improved lane-centering.

Top view of the Kia PV5 Cargo driving on highwayTop view of the Kia PV5 Cargo driving on highway
The Kia PV5 Cargo stopped at crosswalk while a pedestrian walks byThe Kia PV5 Cargo stopped at crosswalk while a pedestrian walks by
Top view of the Kia PV5 Cargo driving on highwayTop view of the Kia PV5 Cargo driving on highway
The Kia PV5 Cargo stopped at crosswalk while a pedestrian walks byThe Kia PV5 Cargo stopped at crosswalk while a pedestrian walks by

Connected technology for every task.

Smart access, on-site power, PV5 Cargo gives you the flexibility to keep work moving forward.
Exterior V2L
External V2L

The PV5 Cargo is equipped with an external V2L feature that delivers 220V power. This allows you to power laptops or small appliances, effortlessly expanding your EV’s utility into a mobile power source.
※ V2L voltage type (110V/220V) follows the standard of the country of purchase.

Full support, wherever you drive.

Front view of PV5 Cargo charging at a public EV charging station
Public Charging
Access public chargers everywhere—at shops, rest stops, or near work. Get back on the road with ease.
Side view of a PV5 Cargo, parked next to a home charger
Home Charging
Install a wallbox. Plug in at night. Wake up ready.
Mechanic working underneath a vehicle
Service Network
Access Kia’s professional service network. From routine care to repairs, to expert diagnostics, help is always near.

Specifications

The Kia PV5 Cargo

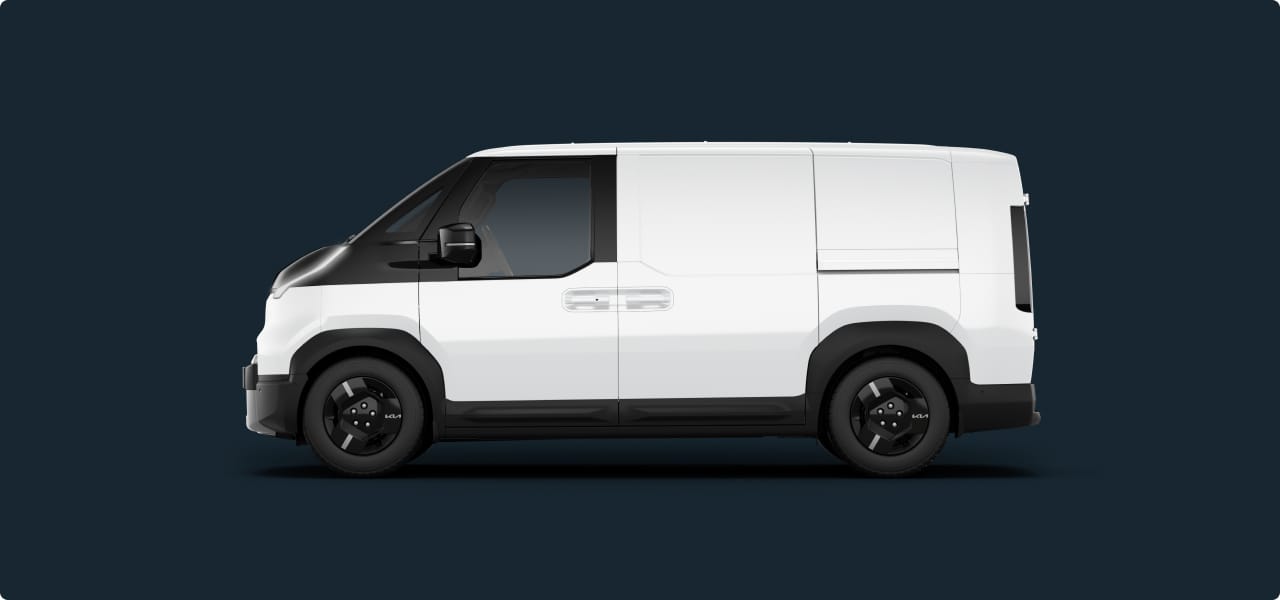

Side view of grey Kia PV5 CargoSide view of grey Kia PV5 Cargo
  • FWD (51.5 kWh)
    Motor Output, kW (PS)
    89.4 (122 PS)
    Max. Torque, Nm
    250
    Front Suspension
    Double Wishbone
    Rear Suspension
    Coupled Torsion Beam Axle
    16" Tyres
    215/65R16
    Battery
    51.5 kWh Li-ion battery
    Electric Motor Type
    Permanent Magnet Synchronous Motor (PMSM)
    Nominal Voltage (V)
    400
    AC Charge Time 11 kW (10% - 100%) ※
    4 hours and 45 minutes
    DC Charge Time (10% - 80%) - 50 kW ※
    57 mins
    DC Charge Time (10% - 80%) - 350 kW ※
    30 mins
  • Maximum Speed (km/h)
    135
    Range (km) - Combined
    384
  • Gross Vehicle Weight (kg)
    2,650
    Maximum Payload (kg)
    790
    Minimum Turning Radius (m)
    5.5
  • Length (mm)
    4,695
    Width (mm)
    1,895
    Height (mm)
    1,899 (Include Antenna 1,923)
    Wheelbase (mm)
    2,995
  • Length (mm)
    2,255
    Width (between wheelarches) (mm)
    1,330
    Width (above wheelarches) (mm)
    1,565
    Height (mm)
    1,520
    Cargo volume (L)
    4,420
    Rear Step Height (mm)
    419
    Opening Width (Rear) (mm)
    1,343
    Opening Width (Side) (mm)
    775
    Boarding height (Side) (mm)
    399
  • 16" Steel Wheels with Wheel Cover
    ✓
    Automatic Headlight Control
    ✓
    LED Headlights
    ✓
    High Beam Assist
    ✓
    LED Daytime Running Lights
    ✓
    LED Rear Lights
    ✓
    LED Rear Fog Lights
    ✓
    Electrically Adjustable, Heated Door Mirrors with LED Indicators
    ✓
    Electric Folding Mirrors
    ✓
    Gloss Black Wing Mirror Housing
    ✓
    Single Manual Sliding Door (Left side)
    ✓
  • Fabric and Artificial Leather seat
    ✓
    Number of seats: 2
    ✓
    Manual Driver's Seat Height Adjustment
    ✓
    Manual Passenger's Seat Height Adjustment
    ✓
    Driver's Seat Armrest
    ✓
    7.5" Driver Display Screen
    ✓
    2-Spoke Bio-Artificial Leather Steering Wheel
    ✓
    Manual Tilt & Telescopic Steering Wheel Adjustment
    ✓
    Electric Front Windows
    ✓
    Automatic Air Conditioning
    ✓
    Start/Stop Button with Smart Entry System
    ✓
    Fabric Headlining
    ✓
    LED Cabin Light
    ✓
    LED Cargo Light
    ✓
  • Console Box
    ✓
    Driver Seat Under Tray
    ✓
    Passenger Seat Under Tray
    ✓
    Tyre Mobility Kit
    ✓
    Vehicle-to-Load (V2L)
    ✓
  • 12.9" Touchscreen
    ✓
    Wireless Apple CarPlay™ & Android Auto™
    ✓
    Bluetooth® Connection
    ✓
    Remote Audio Controls
    ✓
    USB-C Port: 3
    ✓
    2-Speaker Audio System
    ✓
  • Smart Cruise Control with Stop & Go
    ✓
    Forward Collision-Avoidance Assist - City, Pedestrian, Cyclist & Junction Turning
    ✓
    Lane Keep Assist and Lane Following Assist
    ✓
    Manual Speed Limit Assist
    ✓
    Parking Distance Warning: Front & Rear
    ✓
    Rear View Camera
    ✓
    Regenerative Braking Paddle Shifter
    ✓
    Drive Mode Select
    ✓
    Anti-Lock Braking System with Emergency Stop Signalling
    ✓
    Electronic Stability Control (ESC)
    ✓
    Electric Parking Brake (EPB) with Auto Brake Hold
    ✓
    Hill-start Assist Control (HAC)
    ✓
    Tyre Pressure Monitoring System (TPMS)
    ✓
    Height Adjustable Front Seatbelts
    ✓
    Seatbelt Reminder Warning
    ✓
    3-Point Seatbelts
    ✓
    Front, Side & Curtain Airbags
    ✓
  • Clear White (Exterior color)
    ✓
    Deep Navy (Interior color)
    ✓
