Specifications

Dimensions

kia-ab-22my-dimensions-front-w kia-ab-22my-dimensions-front-t kia-ab-22my-dimensions-front-m
kia-ab-22my-dimensions-rear-w kia-ab-22my-dimensions-rear-t kia-ab-22my-dimensions-rear-m
kia-ab-22my-dimensions-side-w kia-ab-22my-dimensions-side-t kia-ab-22my-dimensions-side-m
Dimensions (mm)
table fix area
Car
Overall length
Overall width
Overall height
Wheelbase
Wheeltread (front/rear)
Head room (front/rear)
Leg room (front/rear)
Shoulder room (front/rear)
Fuel tank capacity (L)
Min. ground clearance (mm)
Min. turning radius (m)

4,300
1,700
1,460
2,570
1,509 / 1,515
995 / 952
1,062 / 865
1,365 / 1357
43
150
5.2

Engine

Next

  • 1.0 T-GDi1.4 MPI Gasoline Engine

    • Displacement (cc) 1,368
    • Max. Power(ps/rpm) 120 / 6,000
    • Max. Torque(kg•m/rpm) 17.5 / 1,500~4,000
    • Top speed(km/h) 170

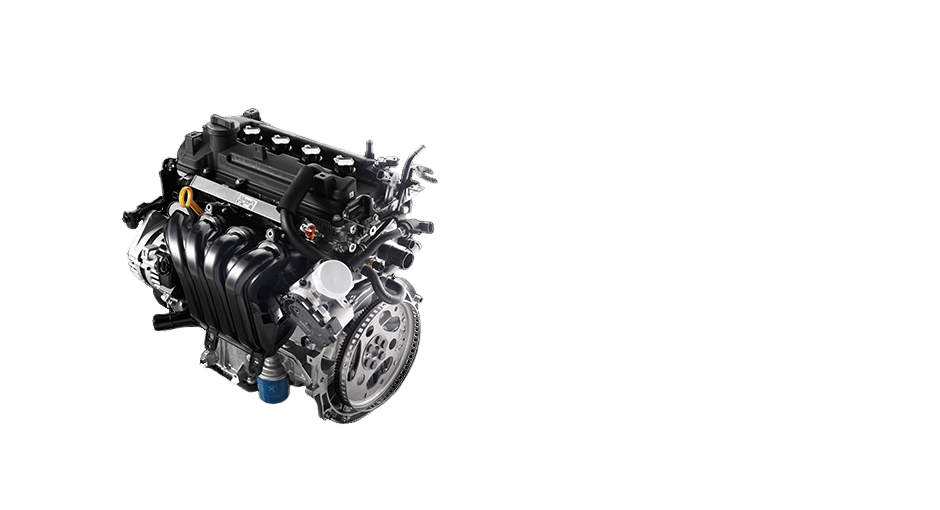

    Gasoline Engine
Prev
Engine
table fix area
Engine name
Displacement (cc)
Max. Power (ps/rpm)
Max. Torque (kg•m/rpm)
Mated transmission

1.0 T-GDi1.4 MPI Gasoline Engine
1,368
120 / 6,000
17.5 / 1,500~4,000
6 M/T

Wheel

Next

  • 14-inch Alloy Wheel

    14-inch Alloy Wheel

  • 14-inch Steel Wheel

    14-inch Steel Wheel
Prev
  • Specifications of the vehicle may vary by region.
  • All information and illustrations are based on data available at the time of publication and subject to change without notice.
    Contact your local Kia dealer for current information.
