Spesifikasi

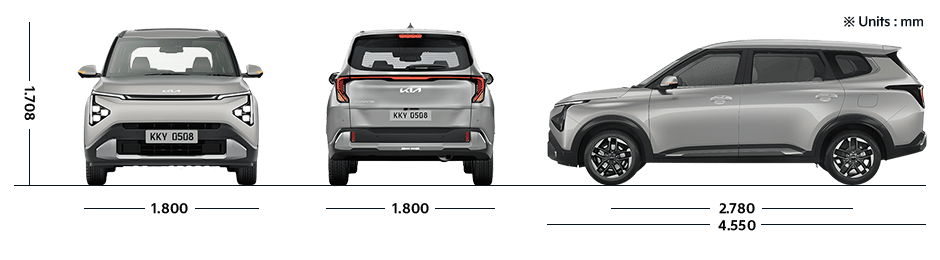

Dimensions

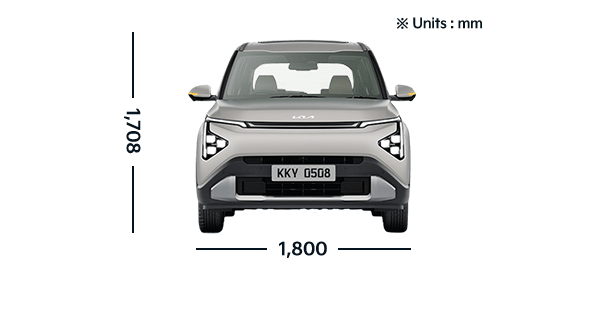

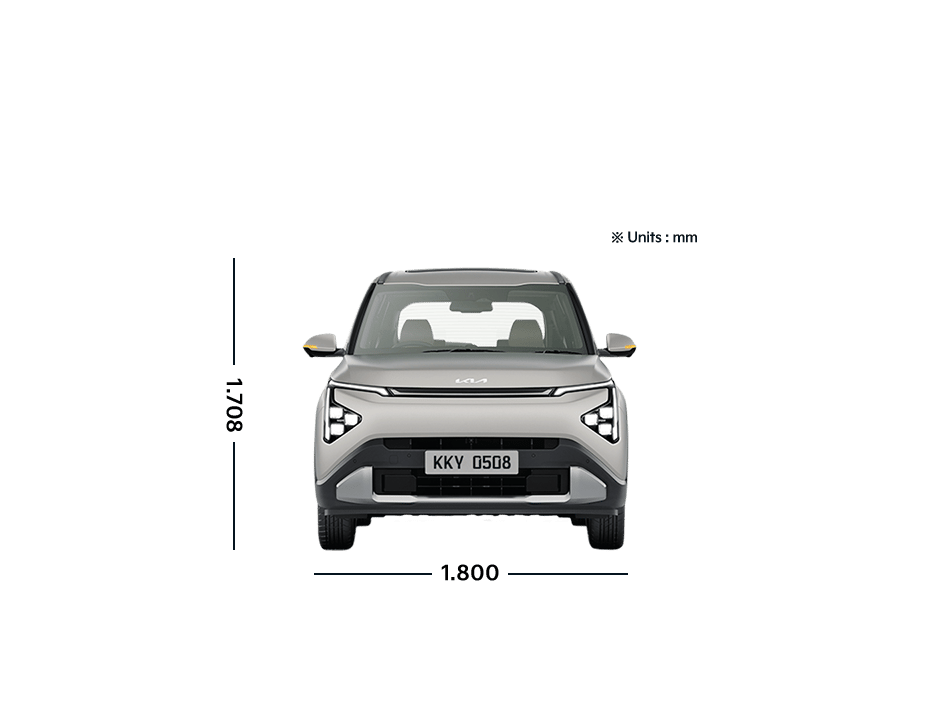

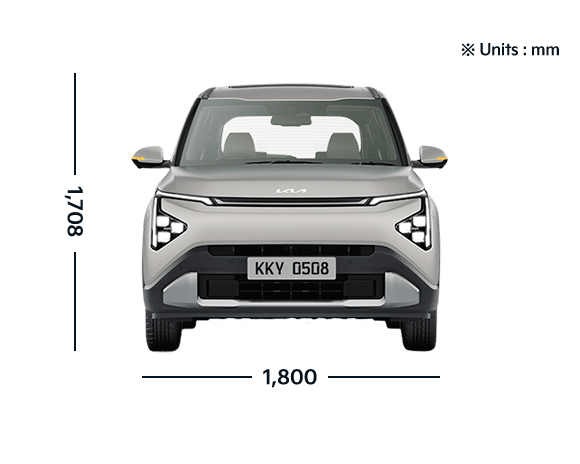

kia-dimensions-940x727px_Front carens-dimensions-front-t carens-dimensions-front-m

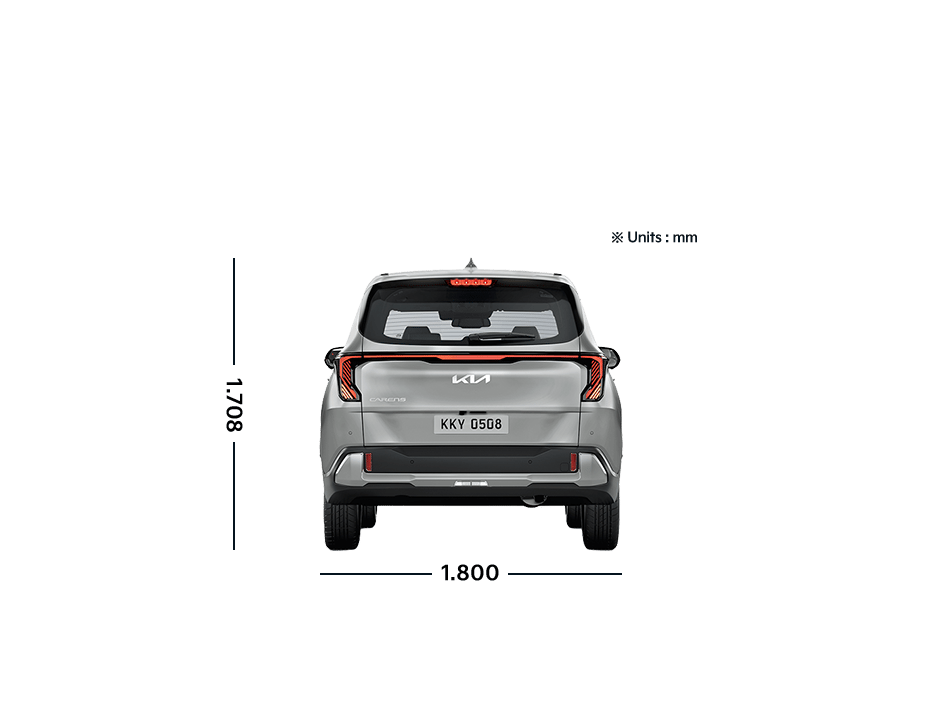

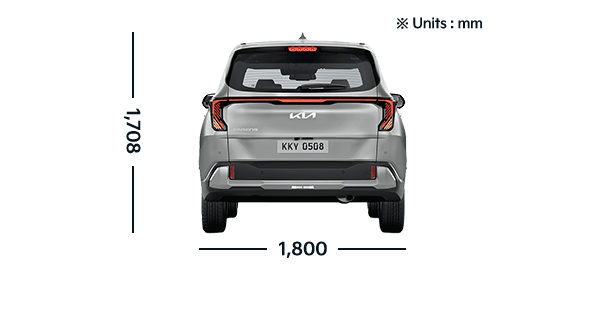

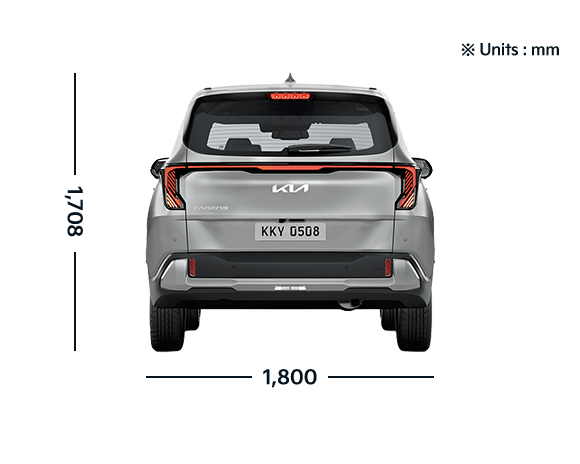

carens-dimensions-back-t carens-dimensions-back-m

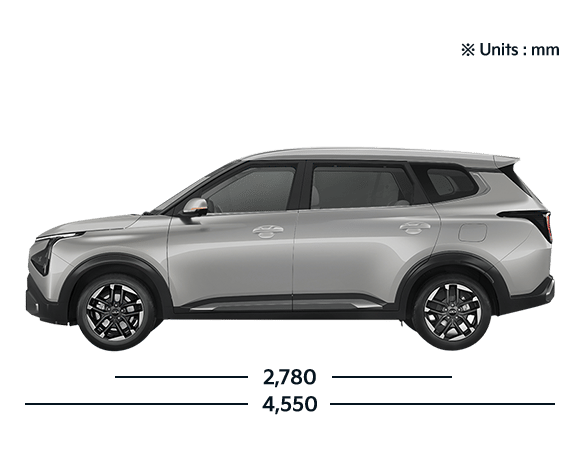

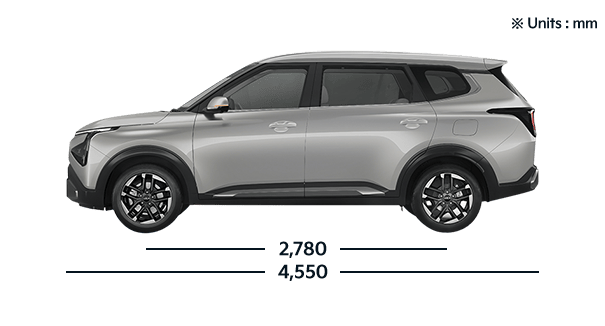

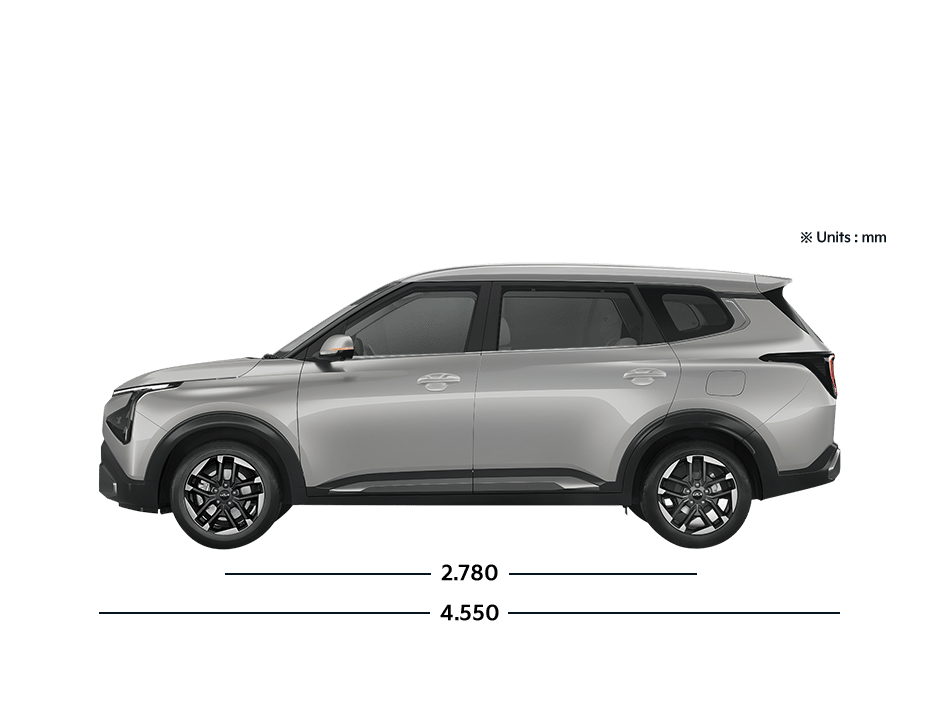

kia-dimensions-940x727px_Side carens-dimensions-side-t carens-dimensions-side-m
Power Train
table fix area
Engine Type
Displacement (cc)
Maximum Power (PS/rpm)
Maximum Torque (Nm/rpm)
Emission
Fuel Tank Capacity (L)
M/T Trendy Motion Signature
Smartstream, Gamma II, DOHC, Dual CVVT
1.497
115 / 6.300
144 / 4.500
Euro 4
45
Transmission
table fix area
Type
Gear Ratio (:1)
Gear Ratio (:1)
Gear Ratio (:1)
Gear Ratio (:1)
Gear Ratio (:1)
Gear Ratio (:1)
Gear Ratio (:1)
Gear Ratio (:1)
  M/T Trendy Motion Signature
  M/T 6-Speed Inteligent VT
1ST 3.833 2.680 - 0.385
2ND 2.143 2.680 - 0.385
3RD 1.370 2.680 - 0.385
4TH 1.036 2.680 - 0.385
5TH 0.794 2.680 - 0.385
6TH 0.667 2.680 - 0.385
Reverse 3.700 2.822 - 1.822
Final 4.882 6.483
Steering
table fix area
Type
Adjustable
Power Steering
M/T Trendy Motion Signature
Rack & Pinion
Tilt & Telescopic
Motor Driven Power Steering (MDPS)
Suspension
table fix area
Front
Rear
M/T Trendy Motion Signature
MacPherson Strut
Coupled Torsion Beam Axle
Brakes
table fix area
System
Type
Type
Parking Brake
Electronic Stability Control
(ESC)
Hill Start-assist Control
(HAC)
Downhill Brake Control
(DBC)
  M/T Trendy Motion Signature
  Anti-lock Brake System (ABS),
Electronic Brakeforce Distribution (EBD)
Front Ventilated Disc
Rear Disc
  Hand Brake Electronic Parking Brake (EPB)
  ●
    ●
    ●
Dimensions
table fix area
Length / Width / Height
(mm)
Wheelbase (mm)
Front/Rear Tread (mm)
Front/Rear Over Hang (mm)
Ground Clearance (mm)
Cargo Capacity (L)
M/T Trendy Motion Signature
4.550 / 1.800 / 1.708
2.780
1.563 / 1.587
830 / 940
108 205
216
Wheels & Tires
table fix area
Type
Tire Size
M/T Trendy Motion Signature
15" Alloy Wheels 17" Diamond Cut Alloy Wheels
195/65 R15 215/55 R17
Exterior
table fix area
Head Lamp
Daytime Running Light (DRL)
Electric Folding Mirror
Rear Upper Spoiler with
High Mount Stop Lamp
Sun Roof
M/T Trendy Motion Signature
Projector Hologen Multi Reflector LED
Bulb Star Map LED
  ●
●
  ●
Interior
table fix area
26.6" Dual Panoramic Display
with 12.3" Digital LCD Cluster
Supervision with 4.2" TFT
LCD Cluster
Power Window
Seat Material
Front Manual Ajdustable
Seat with Height Adjusment
Front Console
with Two Cup Holder
2nd Row Captain Seat with
Sliding, Reclining, & Arm Rest
2nd Row 60:40 Split Double
Folding & Reclining
Climate Control
Rear Air Conditioner
M/T Trendy Motion Signature
  ●
●
Auto Up & Down Driver Side with Safety
Artificial Leather & Cloth
●
●
  ●
●
Manual Auto
●
Comfort & Convenience
table fix area
Push Start Stop Button
Remote Start Engine
1st, 2nd, 3rd Row
USB Charging Ports
12V Power Outlet
Wireless
Charging
Seatback Table
Drive Mode Select
M/T Trendy Motion Signature
  ●
  ●
●
●
  ●
  ●
  ●
Infotaiment
table fix area
12.3" Infotainment Display
with Android Auto & Apple
CarPlay
8" Infotainment Display with
Android Auto & Apple
CarPlay
Audio Speaker
M/T Trendy Motion Signature
  ●
●
6-speakers  BOSE 8-speakers
Safety
table fix area
Airbags
Tire Presure Monitoring
System (TPMS)
Parking Distance Warning
(PDW)
Surround View Monitor
Rear View Monitor
M/T Trendy Motion Signature
2 Air Bags 6 Air Bags
  ●
Reverse Forward & Reverse
  ●
●
ADAS
table fix area
Smart Cruise Control (SCC)
with Stop & Go
Forward Collision-avoidance Assist (FCA)
Lane Following Assist
(LFA)
Lane Keeping Assist
(LKA)
Blind-spot View Monitor
(BVM)
Blind-spot Collision-
avoidance Assist
(BCA)
Manual Speed Limited Assist
(MSLA)
High Beam Assist
(HBA)
M/T Trendy Motion Signature
  ●
  ●
  ●
  ●
  ●
  ●
  ●
  ●

Wheel

Selanjutnya

  • R17 Crystal Cut Dual Tone Alloy Wheels

    R17 Crystal Cut Dual Tone Alloy Wheels
Sebelumnya
  • Spesifikasi kendaraan dapat berbeda-beda tergantung wilayah/negara.
  • Semua informasi dan ilustrasi didasarkan pada data yang tersedia pada saat publikasi dan dapat berubah sewaktu-waktu tanpa pemberitahuan.
    Hubungi dealer Kia terdekat Anda untuk informasi terkini.
