Specifications

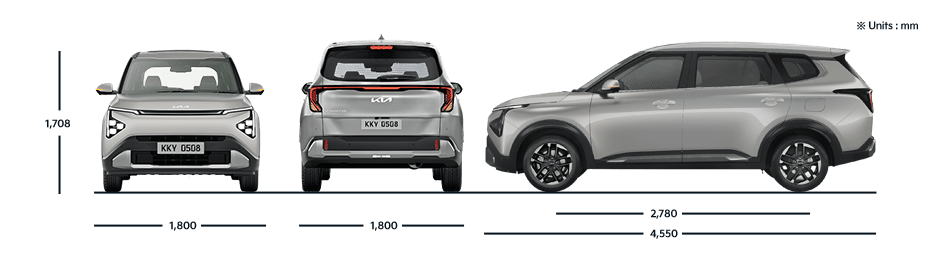

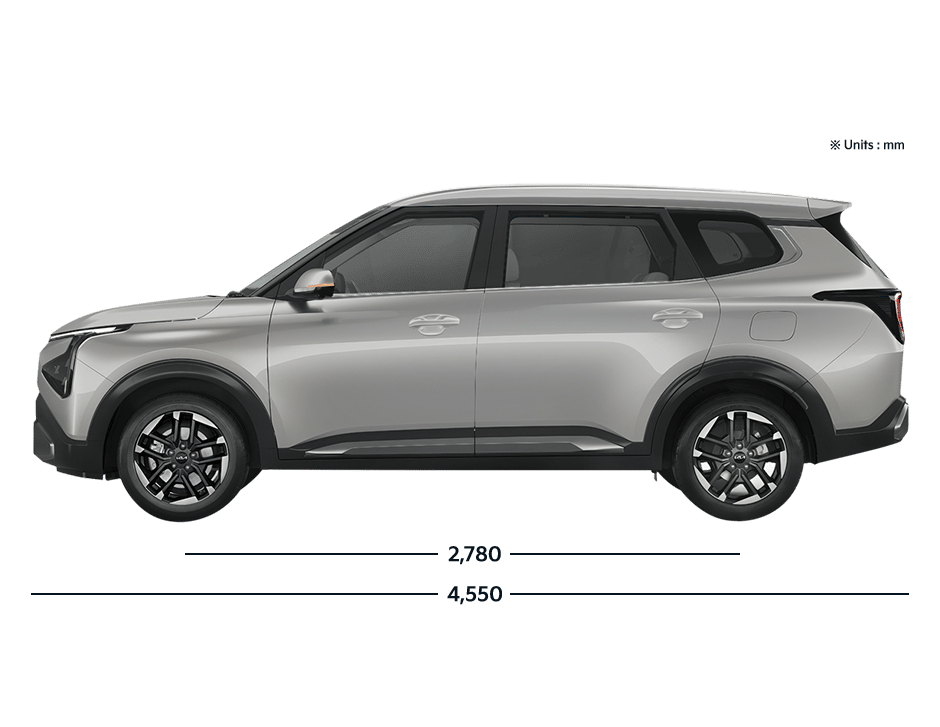

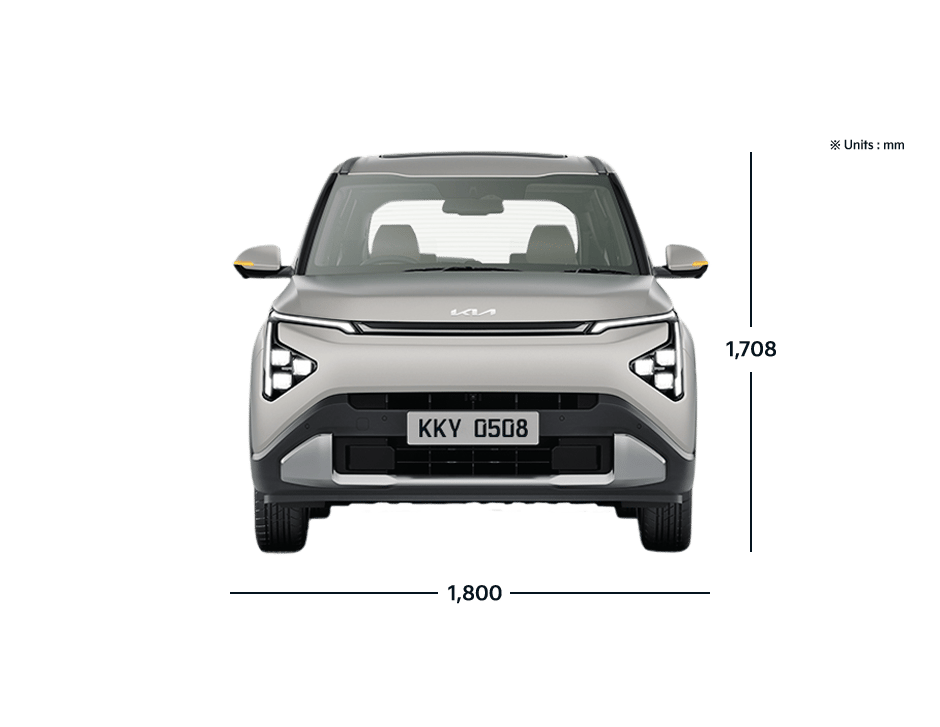

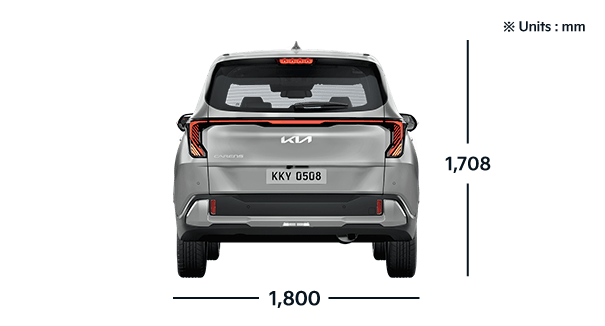

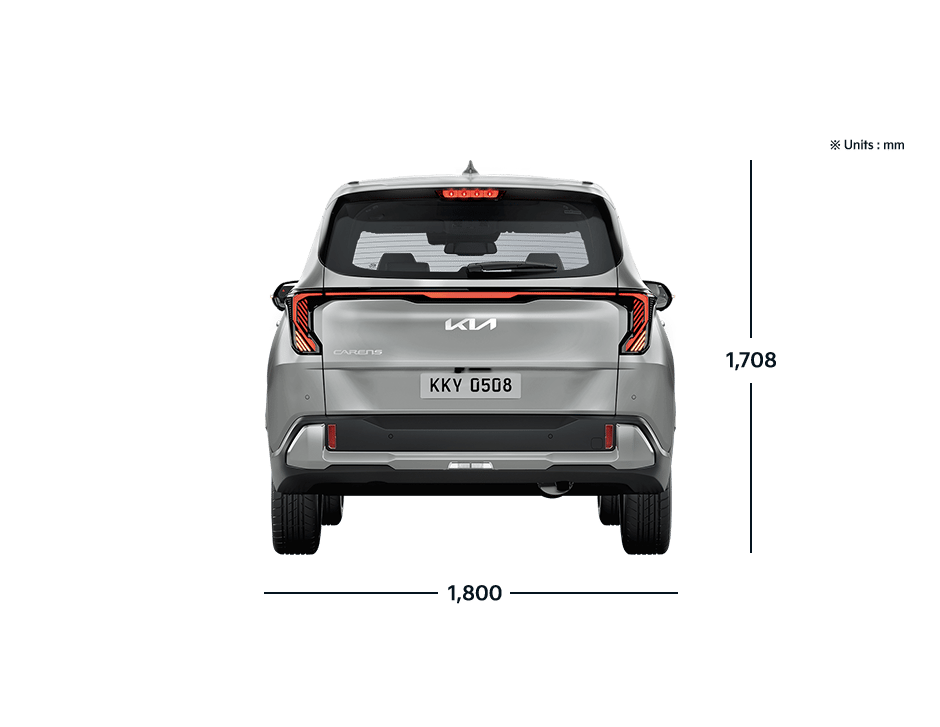

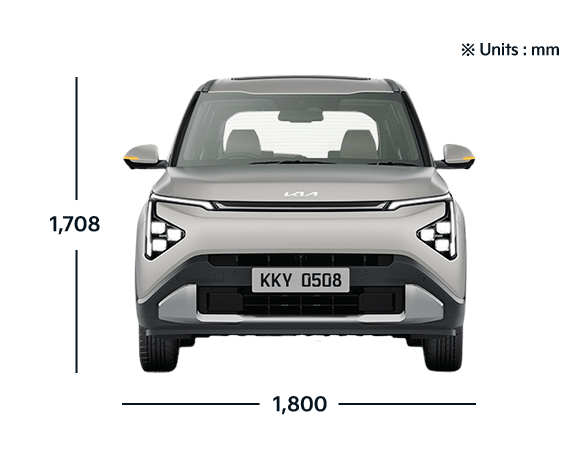

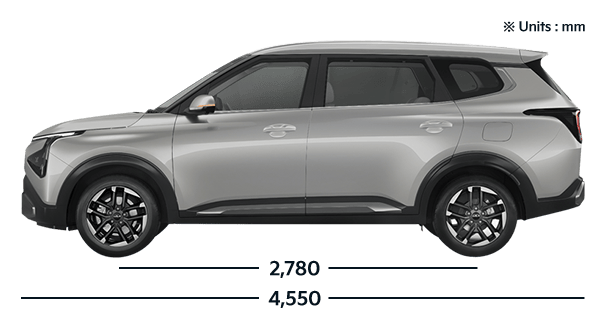

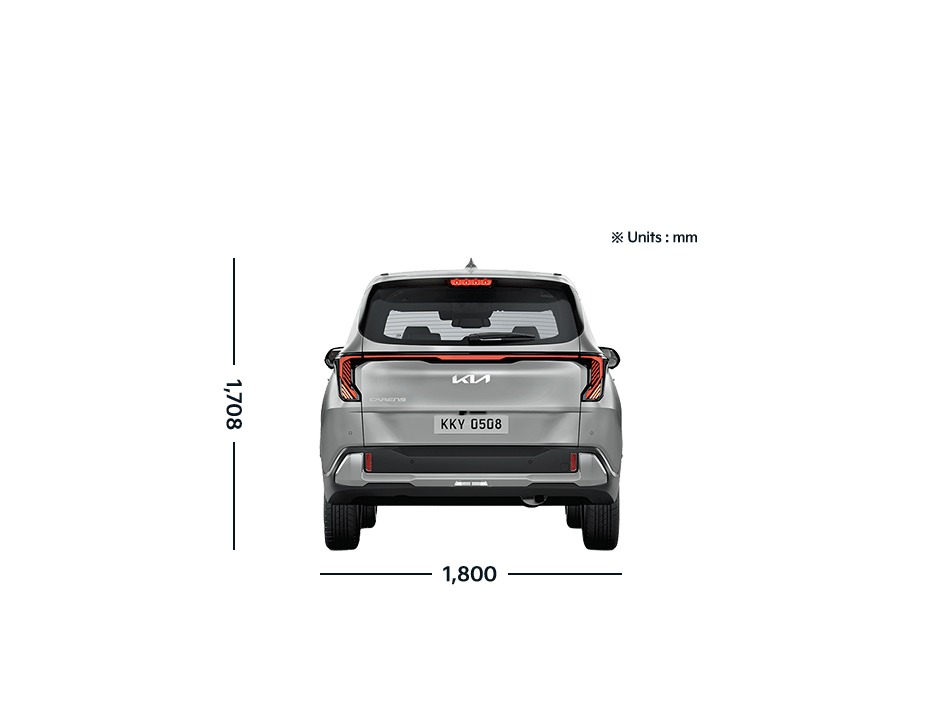

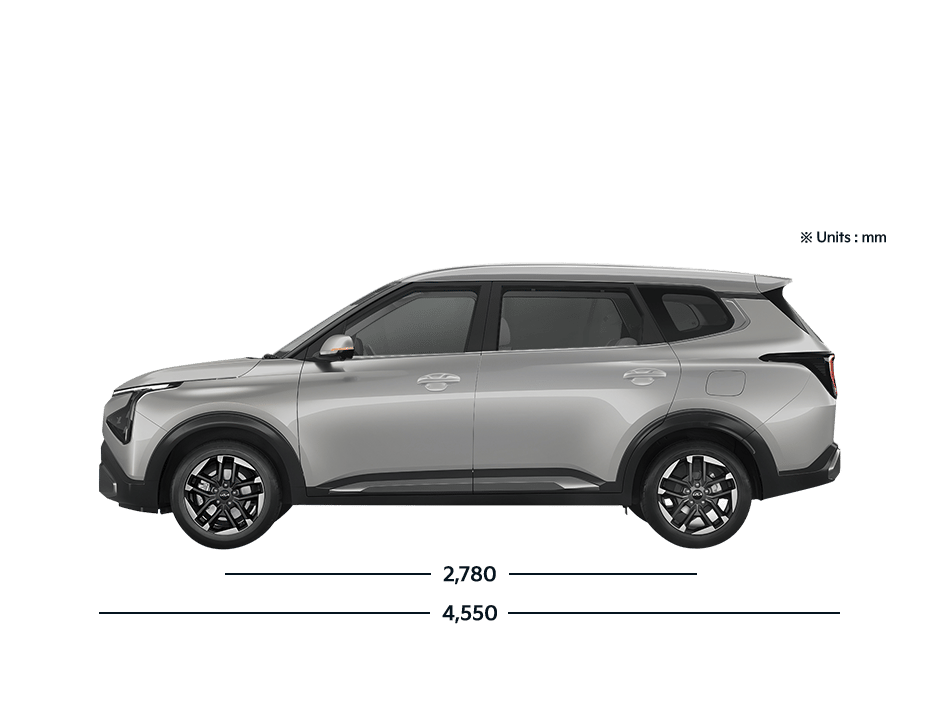

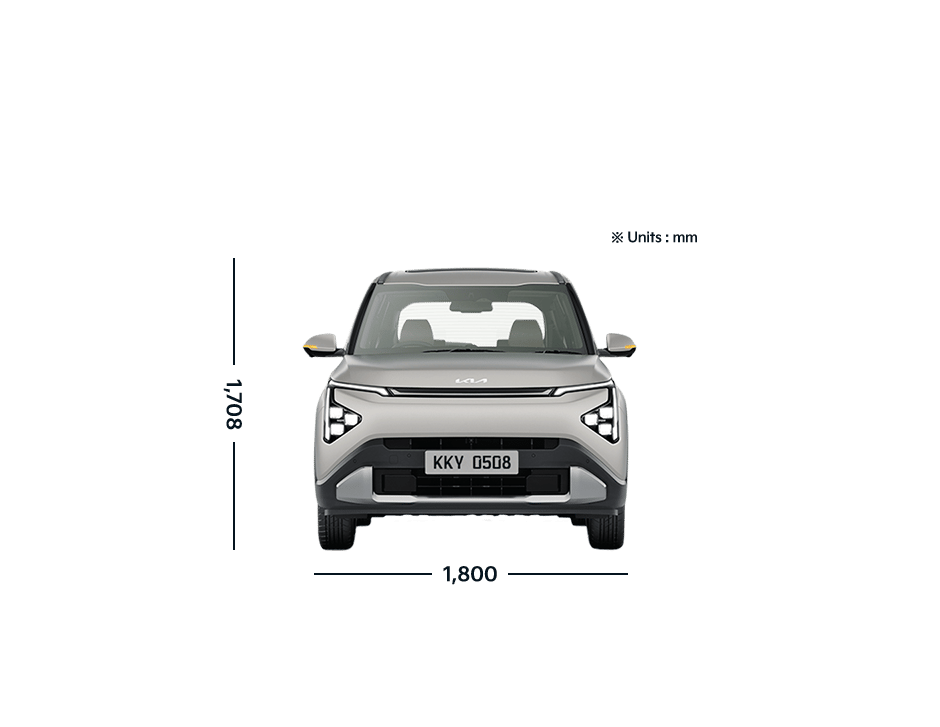

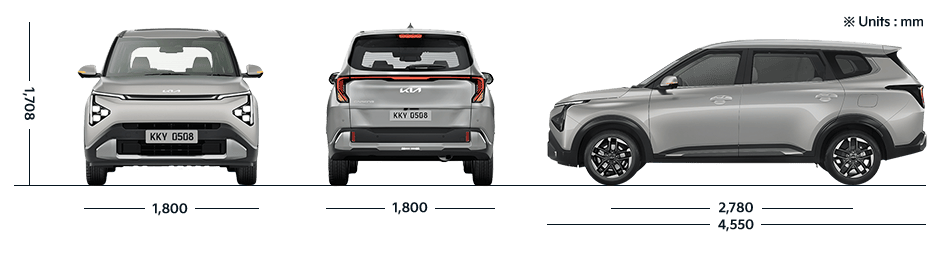

Dimensions

carens-dimensions-front-w carens-dimensions-front-t carens-dimensions-front-m
carens-dimensions-back-t carens-dimensions-back-m
carens-dimensions-side-w carens-dimensions-side-t carens-dimensions-side-m
Power Train
table fix area
Engine Type
Displacement (cc)
Maximum Power (PS/rpm)
Maximum Torque (Nm/rpm)
Emission
Fuel Tank Capacity (L)
M/T Trendy Motion Signature
Smartstream, Gamma II, DOHC, Dual CVVT
1,497
115 / 6,300
144 / 4,500
Euro 4
45
Transmission
table fix area
Type
Gear Ratio (:1)
Gear Ratio (:1)
Gear Ratio (:1)
Gear Ratio (:1)
Gear Ratio (:1)
Gear Ratio (:1)
Gear Ratio (:1)
Gear Ratio (:1)
  M/T Trendy Motion Signature
  M/T 6-Speed Inteligent VT
1ST 3,833 2,680 - 0,385
2ND 2,143
3RD 1,370
4TH 1,036
5TH 0,794
6TH 0,668
Reverse 3,700 2,822-1,822
Final 4,882 6,483
Steering
table fix area
Type
Adjustable
Power Steering
M/T Trendy Motion Signature
Rack & Pinion
Tilt & Telescopic
Motor Driven Power Steering (MDPS)
Suspension
table fix area
Front
Rear
M/T Trendy Motion Signature
MacPherson Strut
Coupled Torsion Beam Axle
Brakes
table fix area
System
Type
Type
Parking Brake
Electronic Stability Control
(ESC)
Hill Start-assist Control
(HAC)
Downhill Brake Control
(DBC)
  M/T Trendy Motion Signature
  Anti-lock Brake System (ABS),
Electronic Brakeforce Distribution (EBD)
Front Ventilated Disc
Rear Disc
  Hand Brake Electronic Parking Brake (EPB)
  ●
    ●
    ●
Dimensions
table fix area
Length / Width / Height
(mm)
Wheelbase (mm)
Front/Rear Tread (mm)
Front/Rear Over Hang (mm)
Ground Clearance (mm)
Cargo Capacity (L)
M/T Trendy Motion Signature
4,550 / 1,800 / 1,708
2,780
1,563 / 1,587
830 / 940
108 205
216
Wheels & Tires
table fix area
Type
Tire Size
M/T Trendy Motion Signature
15" Alloy Wheels 17" Diamond Cut Alloy Wheels
195/65 R15 215/55 R17
Exterior
table fix area
Head Lamp
Daytime Running Light (DRL)
Electric Folding Mirror
Rear Upper Spoiler with
High Mount Stop Lamp
Sun Roof
M/T Trendy Motion Signature
Projector Hologen Multi Reflector LED
Bulb Star Map LED
  ●
●
  ●
Interior
table fix area
26.6" Dual Panoramic Display
with 12.3" Digital LCD Cluster
Supervision with 4.2" TFT
LCD Cluster
Power Window
Seat Material
Front Manual Ajdustable Seat
with Height Adjusment
Front Console with Two
Cup Holder
2nd Row Captain Seat with
Sliding, Reclining, & Arm Rest
2nd Row 60:40 Split Double
Folding & Reclining
Climate Control
Rear Air Conditioner
M/T Trendy Motion Signature
  ●
●
Auto Up & Down Driver Side with Safety
Artificial Leather & Cloth
●
●
  ●
●
Manual  Auto
●
Comfort & Convenience
table fix area
Push Start Stop Button
Remote Start Engine
1st, 2nd, 3rd Row
USB Charging Ports
12V Power Outlet
Wireless Charging
Seatback Table
Drive Mode Select
M/T Trendy Motion Signature
  ●
  ●
●
●
  ●
  ●
  ●
Infotaiment
table fix area
12.3"Infotainment
Display with
Android Auto &
Apple CarPlay
8" Infotainment
Display with
Android Auto &
Apple CarPlay
Audio Speaker
M/T Trendy Motion Signature
  ●
●
6-speakers BOSE 8-speakers
Safety
table fix area
Airbags
Tire Presure Monitoring
System (TPMS)
Parking Distance Warning
(PDW)
Surround View Monitor
Rear View Monitor
M/T Trendy Motion Signature
2 Air Bags 6 Air Bags
  ●
Reverse Forward & Reverse
  ●
●
ADAS
table fix area
Smart Cruise
Control (SCC)
with Stop & Go
Forward Collision-avoidance Assist (FCA)
Lane Following
Assist (LFA)
Lane Keeping
Assist (LKA)
Blind-spot View Monitor
(BVM)
Blind-spot
Collision-avoidance Assist
(BCA)
Manual Speed Limited Assist
(MSLA)
High Beam Assist (HBA)
M/T Trendy Motion Signature
  ●
  ●
  ●
  ●
  ●
  ●
  ●
  ●

Wheel

Next

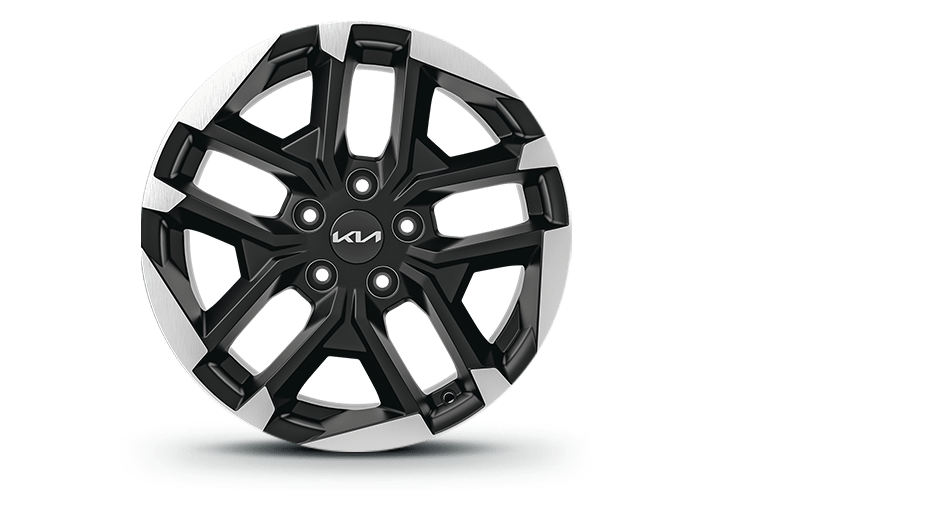

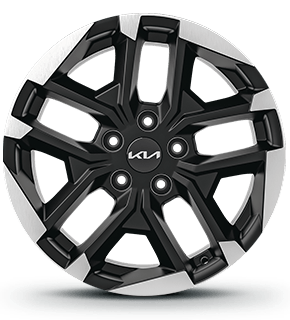

  • R17 Crystal Cut Dual Tone Alloy Wheels

    R17 Crystal Cut Dual Tone Alloy Wheels
Prev
  • Specifications of the vehicle may vary by region.
  • All information and illustrations are based on data available at the time of publication and subject to change without notice.
    Contact your local Kia dealer for current information.
