Specifications

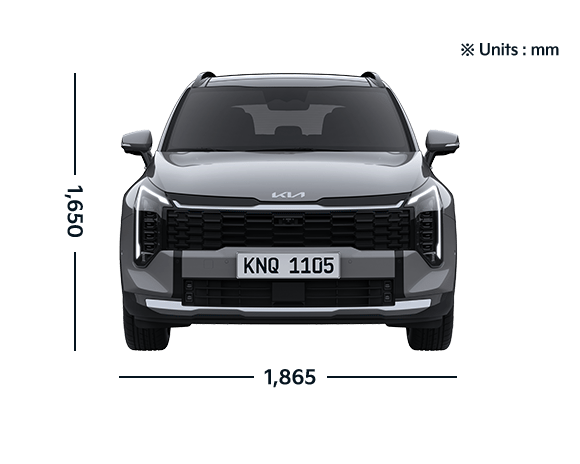

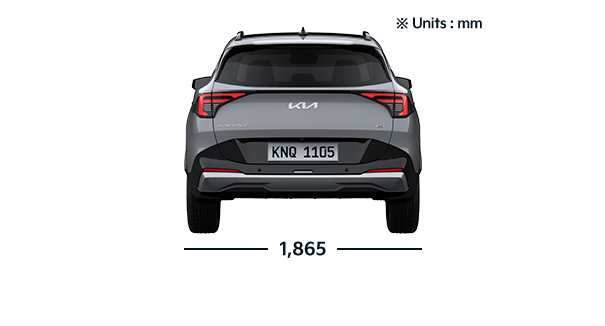

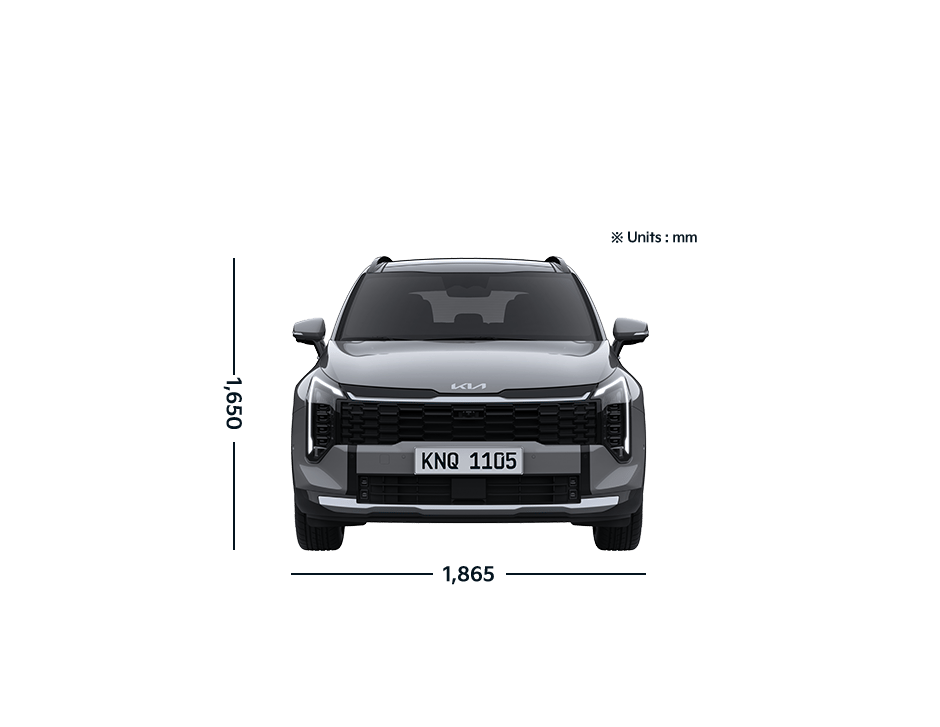

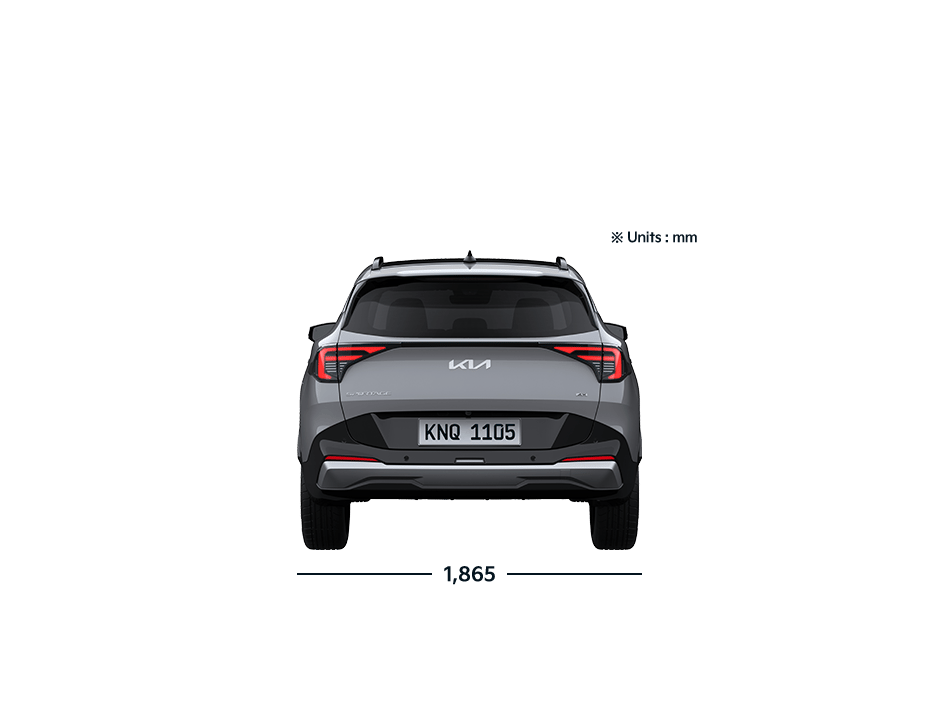

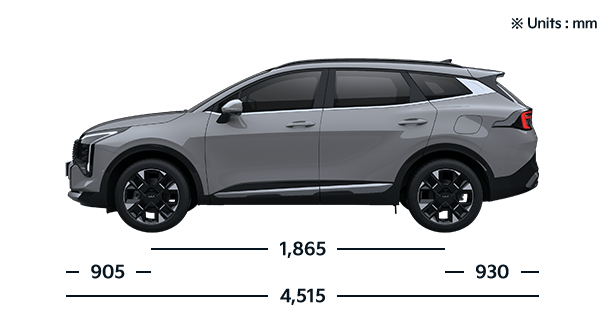

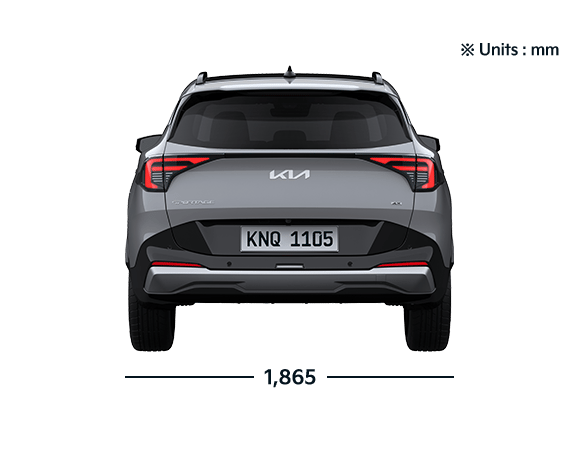

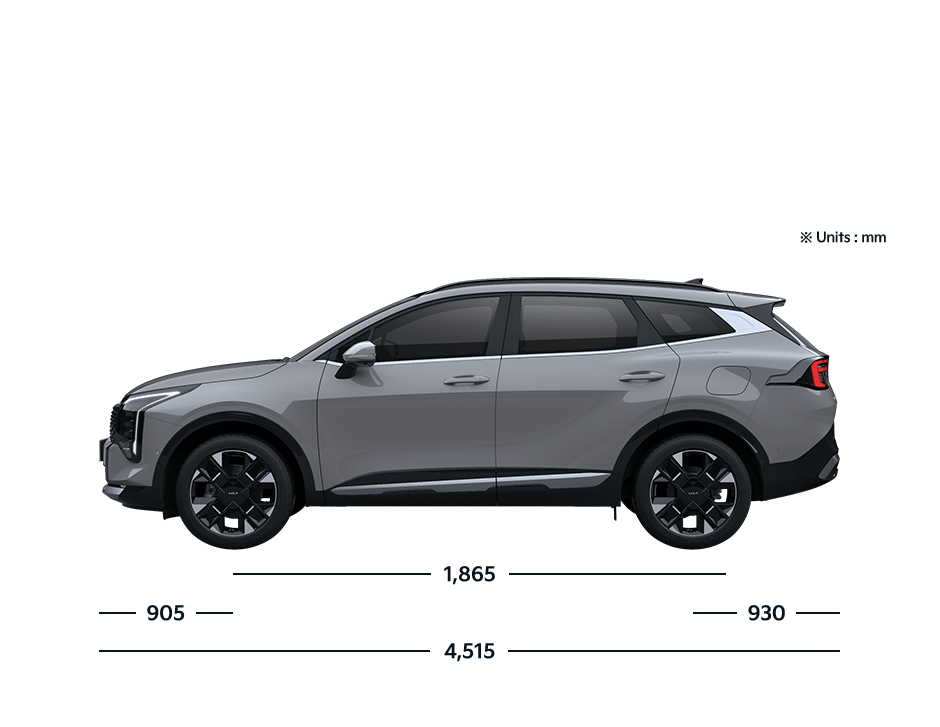

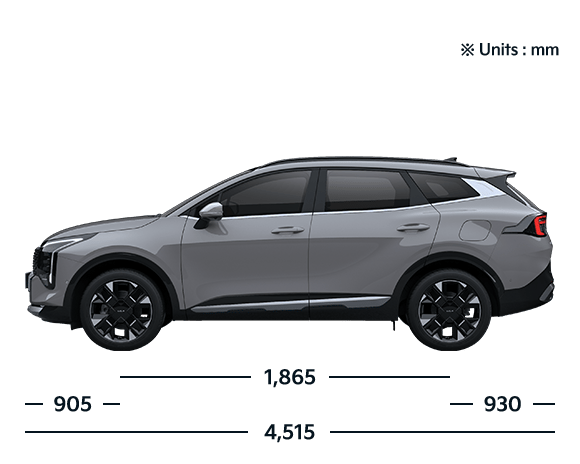

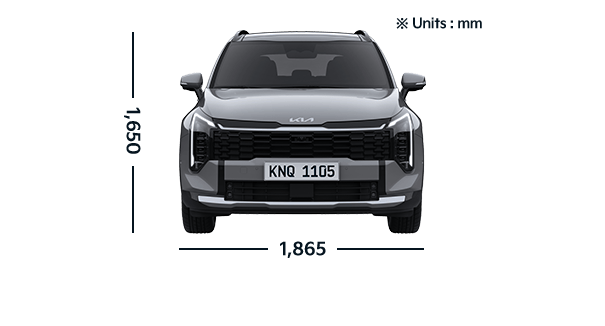

Dimensions

kia-sportage-dimensions-front-w kia-sportage-dimensions-front-t kia-sportage-dimensions-front-m
kia-sportage-dimensions-rear-w kia-sportage-dimensions-rear-t kia-sportage-dimensions-rear-m
kia-sportage-dimensions-side-w kia-sportage-dimensions-side-t kia-sportage-dimensions-side-m
Engine
table fix area
Type
Fuel Type
Fuel Injection System
Displacement (cc)
Bore x Stroke (mm)
Compression Ratio
Max. Power (ps/rpm)
Max. Torque (Nm/rpm)
GL GLS X-LINE HEV
16-Valve Hydraulic Lash Adjuster CVVT 16-Valve Hydraulic Lash Adjuster CVVT 16-Valve Hydraulic Lash Adjuster CVVT 16-Valve Hydraulic Lash Adjuster
Petrol Petrol Petrol HEV
MPi (Multi Point Injection) Gdi (Gasoline Direct Injection) Gdi (Gasoline Direct Injection) Gdi (Gasoline Direct Injection)
1,999 1,598 1,598 1,598
81 x 97 75.6 x 89 75.6 x 89 75.6 x 89
10.8 10.5 10.5 10.5
156 / 6,200 180 / 5,500 180 / 5,500 180 / 5,500
192 / 4,500 265 / 1,500~4,500 265 / 1,500~4,500 265 / 1,500~4,500
Drive / Transmission
table fix area
Transmission
Drive System
GL GLS X-LINE HEV
6-speed Automatic 8-speed Automatic 8-speed Automatic 6-speed Automatic
2WD
Steering
table fix area
Type : Motor Driven Power Steering
Manual Tilt & Telescopic
GL GLS X-LINE HEV
● ● ● ●
● ● ● ●
Suspension / Brakes
table fix area
Suspension - Front
Suspension - Rear
Brakes
GL GLS X-LINE HEV
McPherson Strut type
Multi-link Type
Disc Brake - All Wheels
Tyres and Wheels
table fix area
Tyre Size
Wheel Size
Spare Wheel & Tyre
GL GLS X-LINE HEV
235/60 R18 235/60 R18 235/55 R19 235/60 R18
7.5J x 18" 7.5J x 18" 7.5J x 19" 7.5J x 18"
Alloy Alloy Alloy Temporary (Steel)
Exterior
table fix area
Head Lamp
Daytime Running Light (DRL)
Position Lamp (Indirect Type)
Rear Combination Lamp
Fog Lamp - Front
Fog Lamp - Rear
Auo Light Control
Outside Mirror - Folding & Electric adjustable (Heated)
Outside Mirror - Side Repeater Lamp
Rear Spoiler with High Mounted Stop Lamp (HSML)
Roof Rack
Power Sunroof
Windshield Glass + Front Door Glass
GL GLS X-LINE HEV
LED (MFR 3 Cell) LED (MFR 3 Cell) LED (4 CUBE Projection) LED (MFR 3 Cell)
LED LED LED LED
LED LED LED LED
LED LED LED LED
- LED LED -
LED LED LED LED
● ● ● ●
● ● ● ●
● ● ● ●
LED LED LED LED
● ● ● ●
- - - -
Solar Solar Solar Solar
Interior
table fix area
Front Power Seat - Driver & Passenger
Memory Seat - Driver
Lumbar Support (Driver)
Ventilated Seat - Front
Heated 3-steps Button (FR) + Heated (RR)
Remote Folding (2nd Row)
Upholstery
Ambient Light
Air Conditioning
Power Window - Driver only (Auto Down & Safety)
Power Window - Front (Auto Up/Down & Safety)
Steering Wheel & TGS Knob
Luggage Screen
Door Scuff - Deluxe
Pedals - Metal
GL GLS X-LINE HEV
- - ● -
- - ● -
- - ● -
- - ● -
- - ● -
● ● ● ●
Cloth Cloth Leather Cloth
- ● ● -
Manual Auto Auto Auto
● ● - ●
- - ● -
PU Leather Leather Leather
● ● ● ●
- - ● -
- - ● -
Multimedia
table fix area
Infotainment System
Speaker Brand - Harman/Kardon
Tweeter + External Amp + Center (Front)
Audio Remote Control
Bluetooth w/ Voice Recognition
Connectivity (USB)
Speaker - Harman/Kardon
GL GLS X-LINE HEV
12.3" 12.3" 12.3" 12.3"
- - ● -
- - ● -
● ● ● ●
● ● ● ●
● ● ● ●
- - ● -
Convenience
table fix area
Cluster - Integrated Display
Electric Chromic Mirror (ECM)
Drive Mode Select
Cruise Control (Conventional)
Smart Cruise Control w/ Stop & Go
Paddle Shifter (Lever type)
Wireless Phone Charger
Rain Sensor
Door Lock System
Power Tailgate Device
GL GLS X-LINE HEV
4.2" TFT LCD 12.3" TFT LCD 12.3" TFT LCD 12.3" TFT LCD
- ● ● ●
● ● ● ●
● ● - -
- - ● ●
● ● ● ●
● ● ● -
- ● ● ●
Smartkey with Button Start Smartkey with Button Start Smartkey with Button Start Smartkey with Button Start
- ● ● -



Safety
table fix area
Driver's & Passenger's Airbags
Front Thorax + Curtain Airbags
Child Anchor - Upper & Lower (Rear)
E-Shift for SBW
Electric Parking Brake (EPB) with Autohold
Anti-lock Brake System (ABS)
Electronic Stablility Control (ESC)
Down-Hill Brake Control (DBC)
Hill-start Assist Control (HAC)
Trailer Stability Assist (TSA)
Blind-Spot View Monitor (BVM)
Blind-Spot Collision-Avoidance Assist (BCA)
Lane Keeping Assist (LKA)
Lane Following Assist (LFA)
Forward Collision Avoidance Assist (FCA)
Manual Speed Limit Assist (MSLA)
Rear View Monitor (RVM)
Surround View Monitor (AVM)
Tyre Pressure Monitoring System (TPMS)
Parking Distance Assist (PWD)
Parking Collision-Avoidance Assist (PCA) - Reverse
Rear Seat Alert (w/o Sensor)
Immobilizer
GL GLS X-LINE HEV
● ● ● ●
- - ● ●
● ● ● ●
- ● ● ●
● ● ● ●
● ● ● ●
● ● ● ●
● ● ● ●
● ● ● ●
● ● ● ●
- ● ● -
● ● ● ●
- - ● -
- - ● ●
- - - ●
● ● ● ●
● - - ●
- ● ● -
● ● ● ●
Reverse Forward / Side / Reverse Forward / Side / Reverse Reverse
- ● ● -
● ● ● ●
● ● ● ●

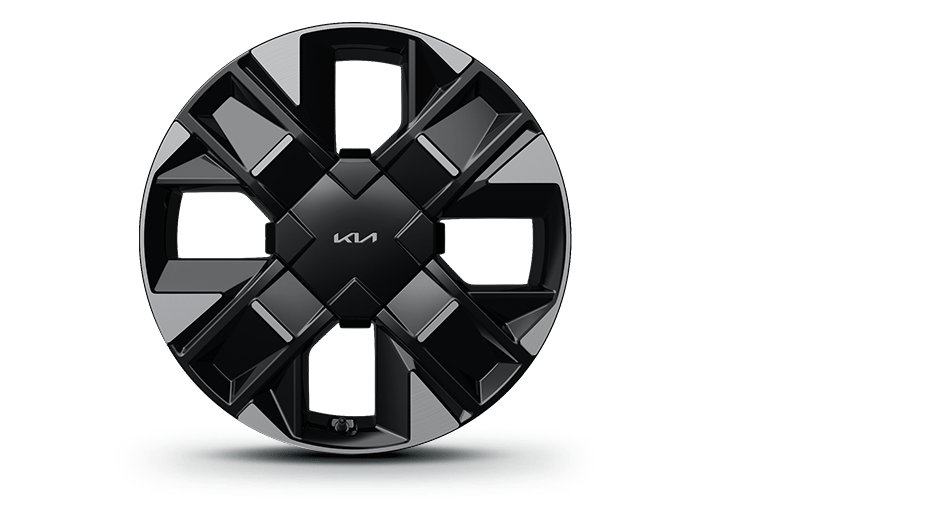

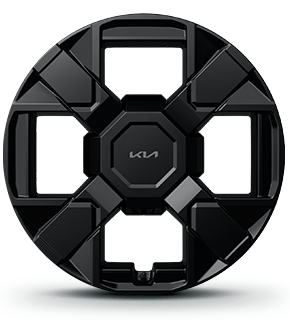

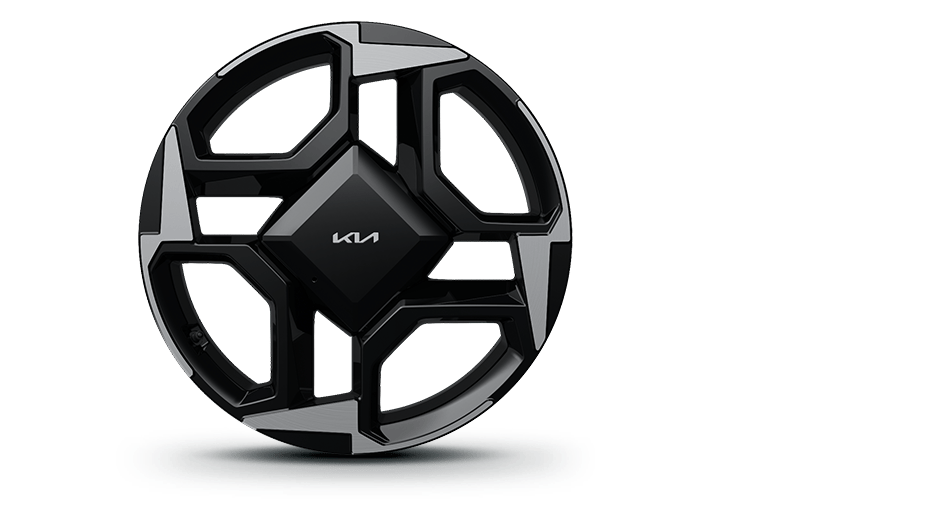

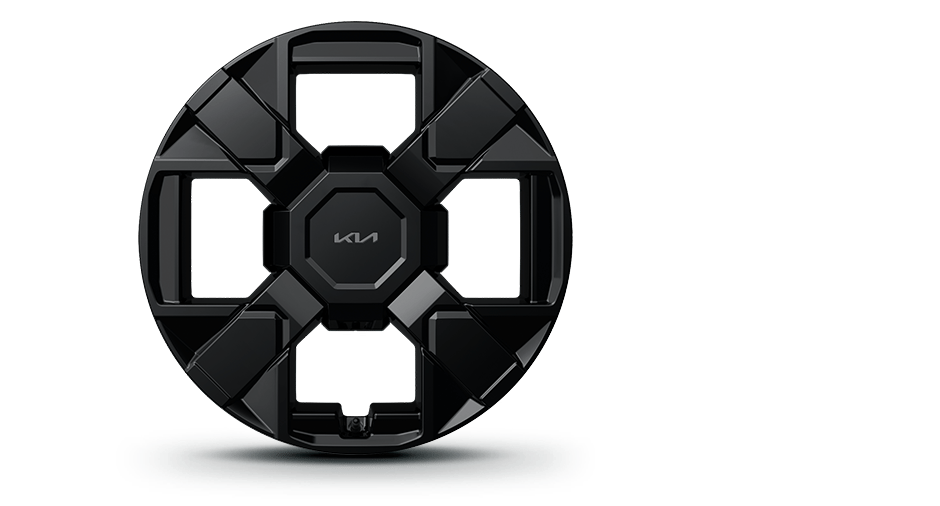

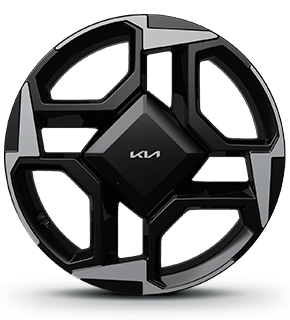

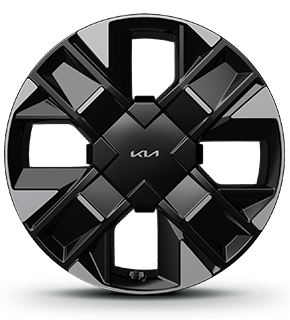

Wheel

Next

  • 18" Alloy wheels

  • 19" Alloy wheels

  • 19" Alloy wheels (Black)

Prev
  • Specifications of the vehicle may vary by region.
  • All information and illustrations are based on data available at the time of publication and subject to change without notice.
    Contact your local Kia dealer for current information.
