specification
Sales Kit

Specification

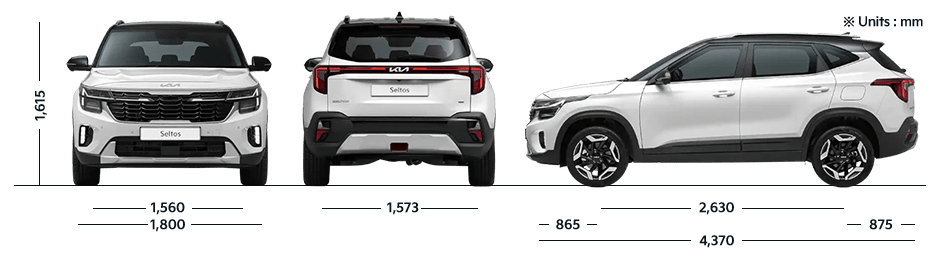

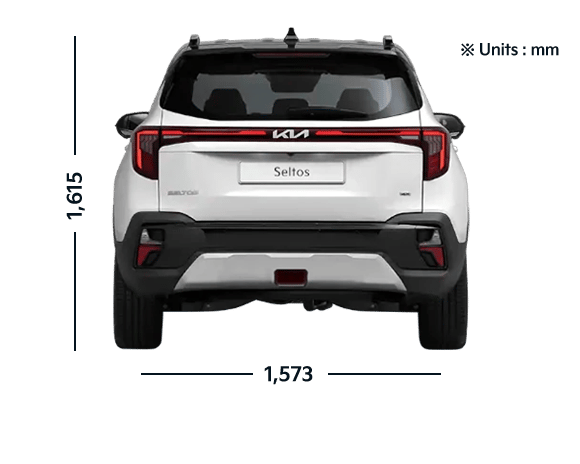

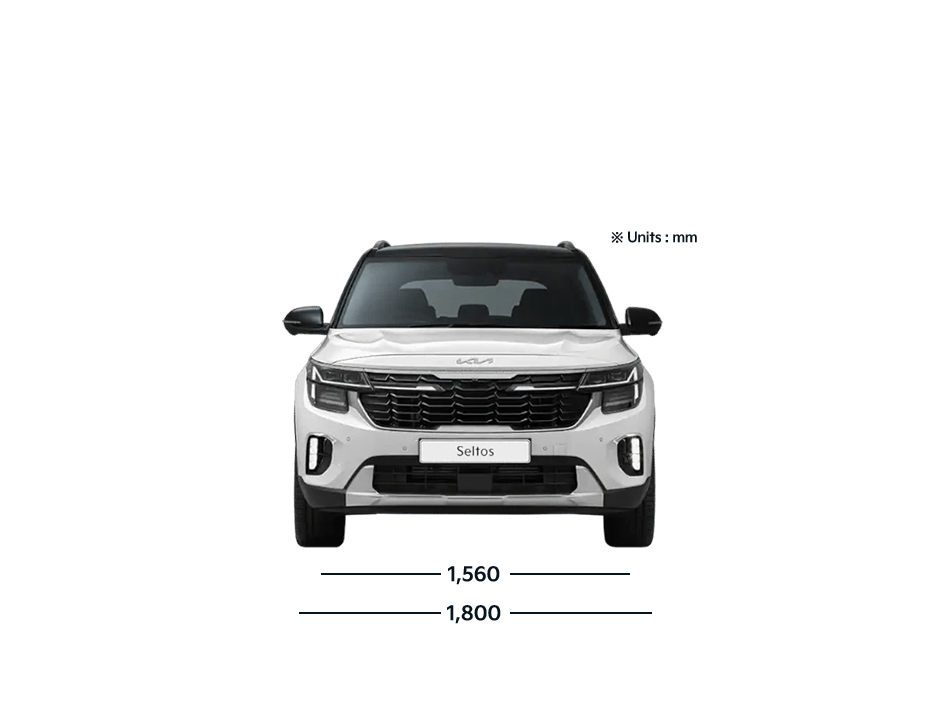

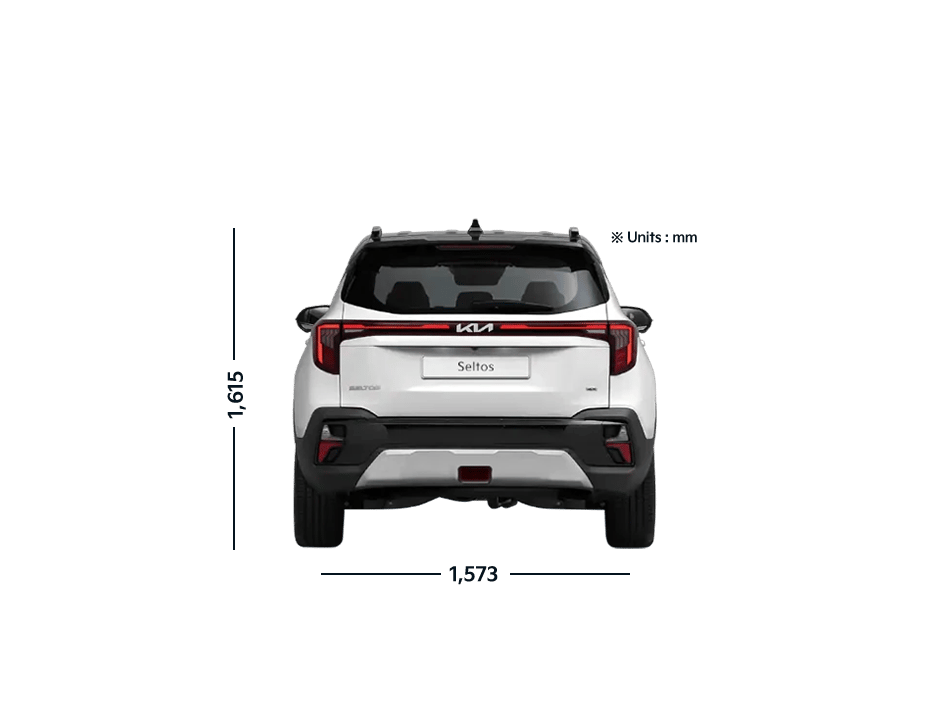

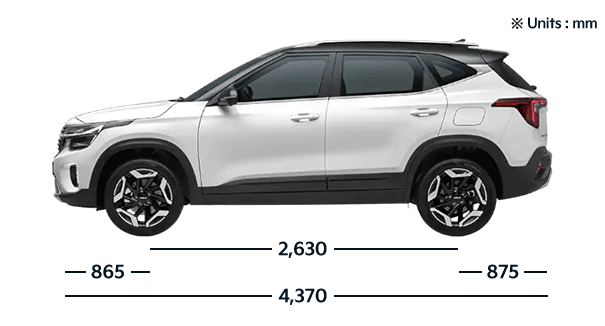

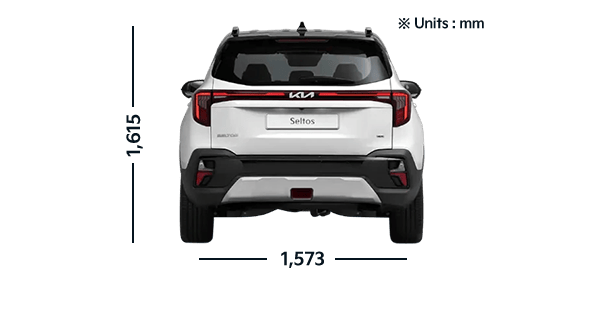

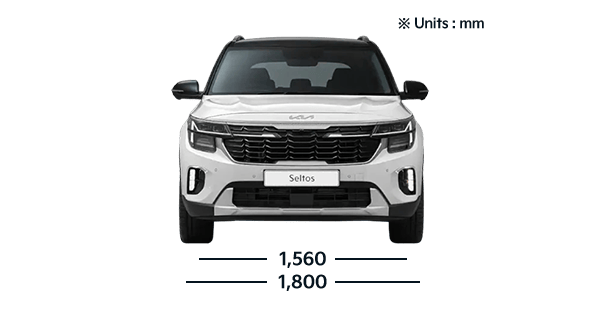

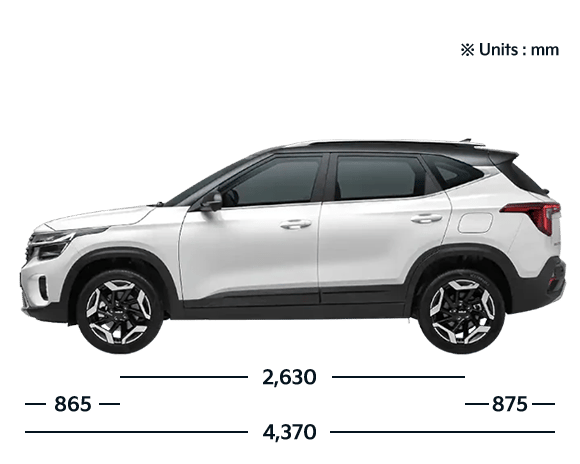

Dimensions

kia-fj-seltos-dimensions-front-w kia-fj-seltos-dimensions-front-t kia-fj-seltos-dimensions-front-m
kia-fj-seltos-dimensions-back-t kia-fj-seltos-dimensions-back-m

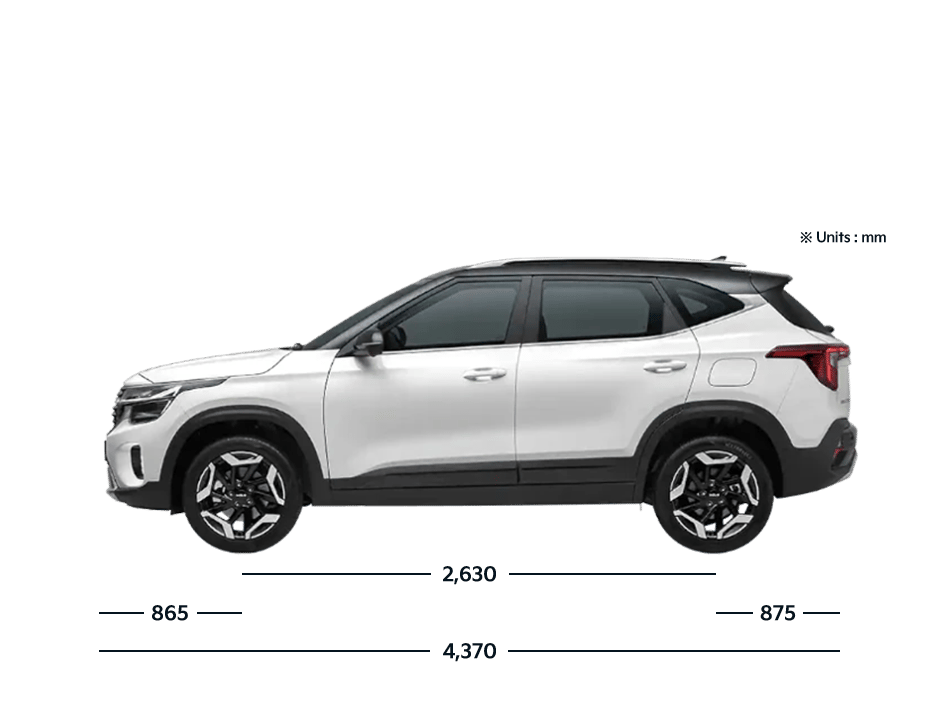

kia-fj-seltos-dimensions-side-w kia-fj-seltos-dimensions-side-t kia-fj-seltos-dimensions-side-m
Dimensions (mm)
table fix area
Car
Overall length
Overall width
Overall height
Wheelbase
Wheel tread (front/rear)
Overhang (front/rear)
Leg room (front/rear)
Head room (front/rear)
Shoulder room (front/rear)
Min. ground clearance
Seltos
4,370
1,800
1,615
2,630
1,560* / 1,573*
865 / 875
1,051 / 965
1,017 / 975
1,409 / 1,395
183*
Engine
table fix area
Type
Fuel Injection System
Displacement (cc)
Bore x Stroke (mm)
Compression Ratio
Maximum Horsepower
(ps/rpm)
Maximum Torque (kg.m/rpm)
GL GT LINE GTLX
DOHC D-CVVT
MPI (Multi Point Injection)
1,591
77 x 85.44
10.3
123 / 6,300
15.4 / 4,850
Transmission
table fix area
Type
DriveType
GL GT LINE GTLX
6-speed Automatic
2WD
Steering
table fix area
Type :
Motor Driven Power Steering
Manual Tilt & Telescopic
GL GT LINE GTLX
●
●
Braking System
table fix area
Brake Type (Front / Rear)
GL GT LINE GTLX
Disc / Drum Disc / Disc
Suspension
table fix area
Suspension Type
(Front / Rear)
GL GT LINE GTLX
McPherson Strut w/ Coil Spring / CTBA (Coupled Torsion Beam Axle)
Tyres and Wheels
table fix area
Tyre Size
Wheel Size
Spare Wheel & Tyre
GL GT LINE GTLX
215/60R17
7.0J x 17"
Steel
Exterior
table fix area
Head Lamps
Rear Combination Lamps
Fog Lamp
Daytime Running Light (DRL)
High Mounted Stop Lamp
(HMSL)
Outside Mirror
(Electric adjustable /
Folding type /
Side Repeater Lamp)
Roof Rack
Rear Spoiler
GL GT LINE GTLX
Bulb LED
Bulb LED
- LED
Bulb LED
Bulb
● / Electric / ●
●
●
Interior
table fix area
Cluster
Front Power Seat - Driver
Ventilated Seat
Upholstery
Air Conditioning
(Front / Rear)
Rear Door Side Curtain
Electric Chromic Mirror
(ECM)
GL GT LINE GTLX
Conventional 3.5" Supervision 7"
- ●
- Front
Cloth Leather
Manual / ● Auto / ●
- ●
- ●
Multimedia
table fix area
Infotainment System - 8" TFT LCD Touch Screen
Bluetooth w/
Voice Recognition
Connectivity (USB)
GL GT LINE GTLX
●
●
●
Convenience
table fix area
Door Lock System
Head Up Display
Cruise Control
Drive Mode Select
Wireless Phone Charger
Sunroof
GL GT LINE GTLX
Keyless Entry Smartkey with Button Start
- ●
- ●
- ●
- ●
- ●
Safety
table fix area
Driver's & Passenger's
Airbags
Front Thorax & Pelvis
+ Curtain Airbags
Child Anch
