Specifications

Dimensions

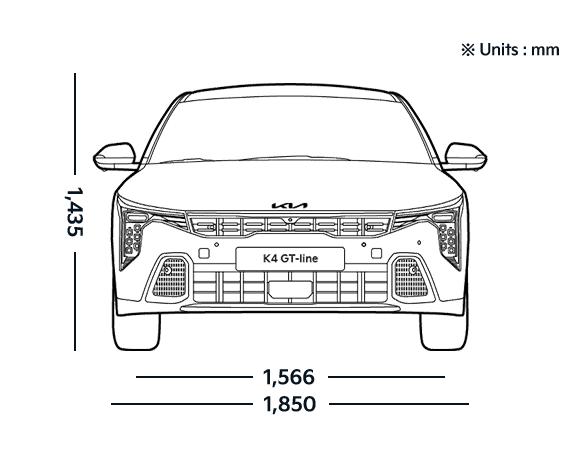

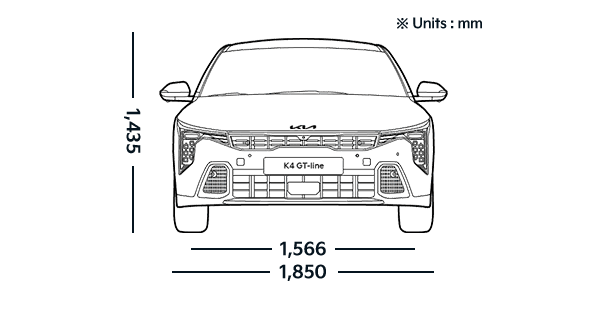

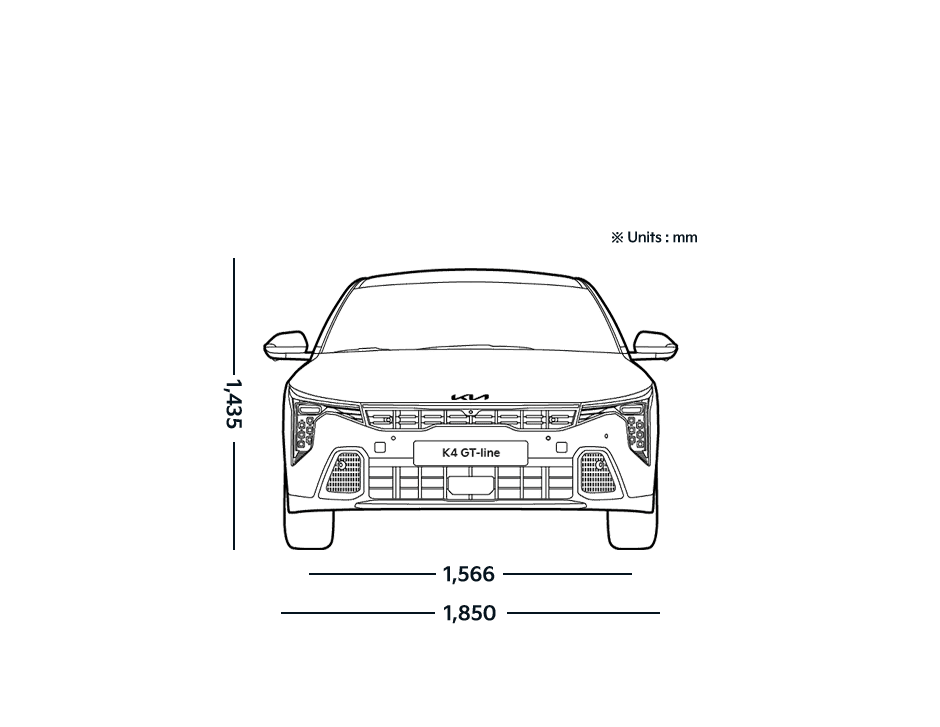

K4 Front K4 Front K4 Front

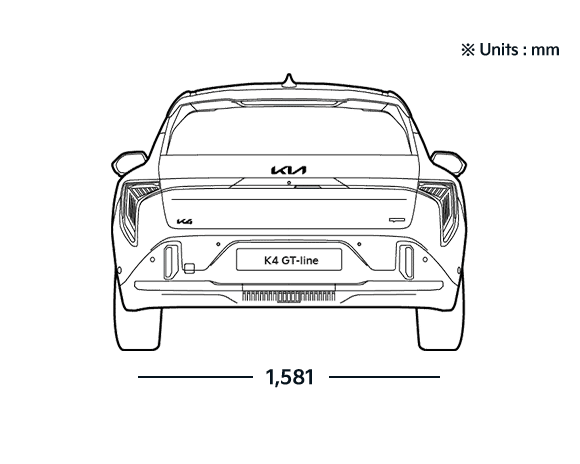

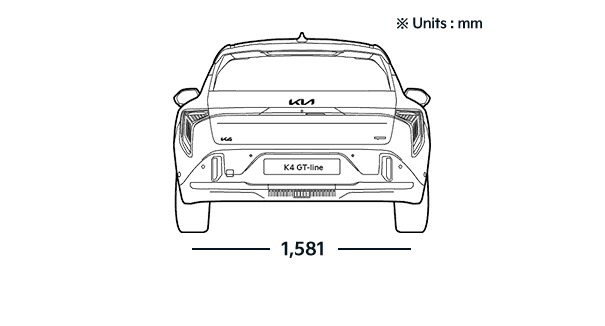

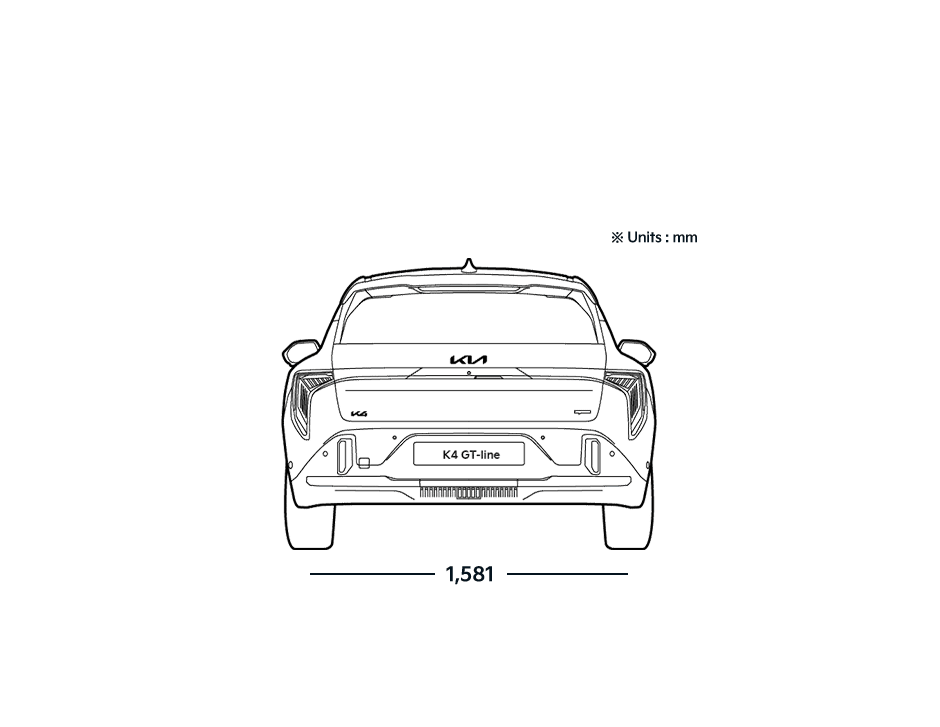

K4 Back K4 Back K4 Back

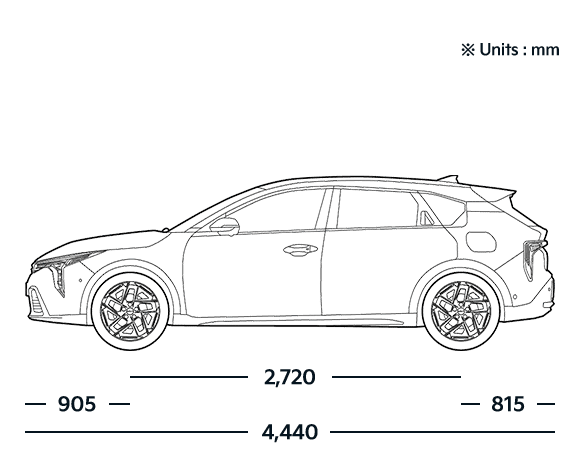

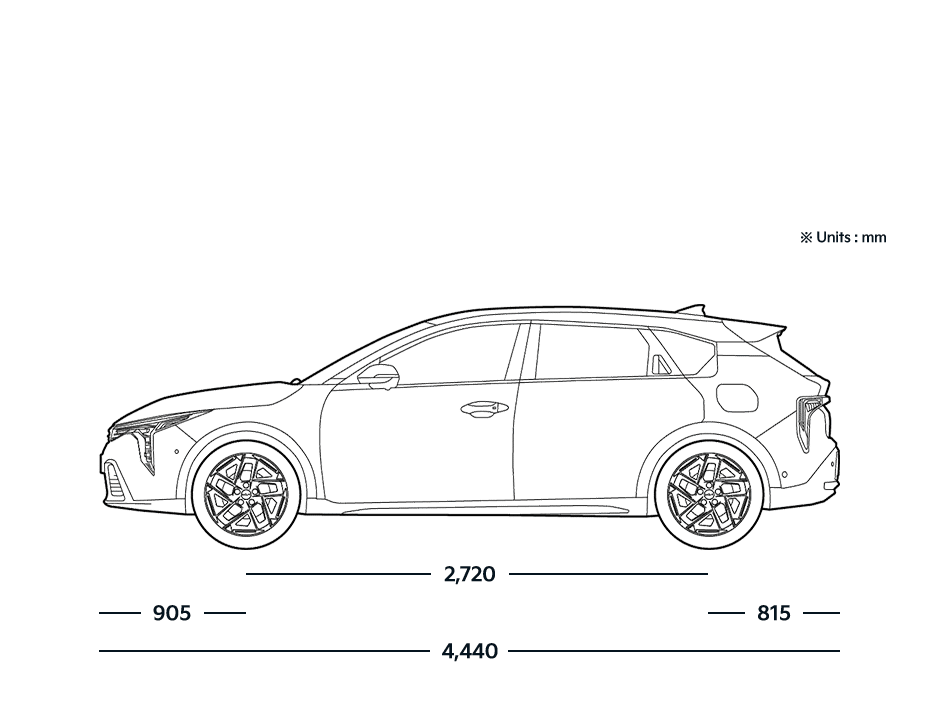

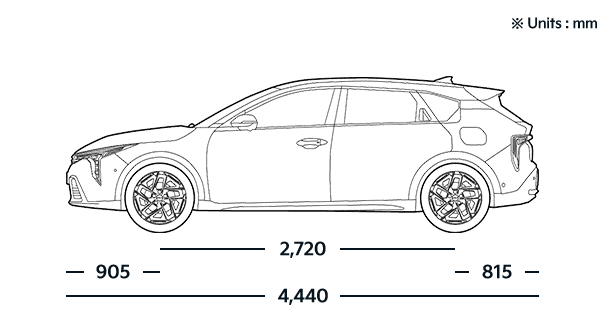

K4 side K4 side K4 side
Dimensions
table fix area
Length x Width x Height (mm)
Wheelbase (mm)
Min Ground Clearance (mm)
Turning Circle Radius (m)
K4 4-DOOR K4 5-DOOR
4,710 x 1,850 x 1,435 4,440 x 1,850 x 1,445
2,720
150
5.36
ENGINE
table fix area
Displacement (cc)
Bore x Stroke (mm)
Compression Ratio
Engine Type
Fuel Injection System
Fuel Tank
1.6L MPI 1.6 T-GDI
1,591 1,598
77.00 X 85.44 75.6 X 89.0
10.5 10.0
DOHC D-CVVT 16 Valve In-line 4-Cylinder MLA DOHC D-CVVT Turbo 16 Valve In-line4-Cylinder MLA
MPI (Multi Point Injection) GDI (Gasoline Direct Injection)
47L
PERFORMANCE
table fix area
Transmission
Maximum Power (ps/rpm)
Maximum Torque (Nm/rpm)
1.6L MPI 1.6 T-GDI
6AT 8AT
123 / 6,300 193 / 6,000
150.7 / 4,850 264.8 / 1,700~4,500
BRAKE SYSTEM
table fix area
Brake Type Front / Rear
Parking Brake Type
1.6L MPI 1.6 T-GDI
Ventilated Disc / Solid Disc 8AT
Electric Parking Brake 193 / 6,000
SUSPENSION
table fix area
Suspension Front
Rear
1.6L MPI 1.6 T-GDI
Macpherson Strut
CTBA Multi-Link
TYRES AND WHEELS
table fix area
Tyre Size
Wheel Size
Spare Tyre
1.6L MPI 1.6 T-GDI
7.0J x 17" 8.0J x 18"
225/45R17 235/40R18
Temporary 125/80D15 Temporary 125/80D16
EXTERIOR
table fix area
LED Headlights
LED Day Running Light (DRL)
LED Position Lamp
High-mount Stop Lamp & Rear Spoiler
Rear Combination Lamp
Fog Lamp
1.6L MPI 1.6 T-GDI
3-Cell Multi-Focus Reflector Cube Projection
● ●
● ●
BULB LED
LED + BULB LED
- ●
INTERIOR
table fix area
Upholstery
Power Windows
Power Driver's Seat
Rear Seat 60/40 Split Back Folding
Steering Wheel & TGS Knob
Pedals
1.6L MPI 1.6 T-GDI
Cloth Artificial leather
Driver Window Auto Up/Down & Safety Driver Window Auto Up/Down & Safety
- ●
● ●
PVC Leather
Rubber Metal
ENTERTAINMENT
table fix area
Infotainment System
Harman/Kardon Speaker
1.6L MPI 1.6 T-GDI
12.3" 12.3"
- ●
CONVENIENCE
table fix area
Digital Instrument Cluster
Smart Key (FOB) & Button Start
Immobilizer
ECM (Electronic Chromic Mirror)
SCC (Smart Cruise Control)
Drive Mode Select (DMS)
Paddle Shifter
Rain Sensor
Air-Conditioner
1.6L MPI 1.6 T-GDI
4"TFT LCD(CLU)+12"TFT LCD 12.3"TFT LCD(CLU)+ 12.3"TFT LCD + RHEOSTAT
● ●
● ●
● ●
- ●
● ●
- ●
- ●
Manual Auto
SAFETY
table fix area
Driver & Passenger Airbags (Front)
Side & Curtain Airbags
Anti-Lock Braking System (ABS)
Electronic Stability Control (ESC)
Hill-Start Assist Control (HAC)
Multi Collision Brake (MCB)
Safety Door Locking - Child Lock (Manual)
Blind-Spot Collision-Avoidance Assist (Rear)
Lane Keeping Assist (LKA)
Manual Speed Limit Assist (MSLA)
Forward Collision-Avoidance Assist (FCA 2)
Lane Following Assist (LFA)
Parking Distance Warning
Rear View Monitor
1.6L MPI 1.6 T-GDI
● ●
- ●
● ●
● ●
● ●
● ●
● ●
● ●
- ●
● ●
- ●
- ●
● ●
● ●

Wheel

Next

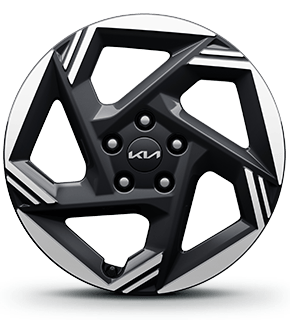

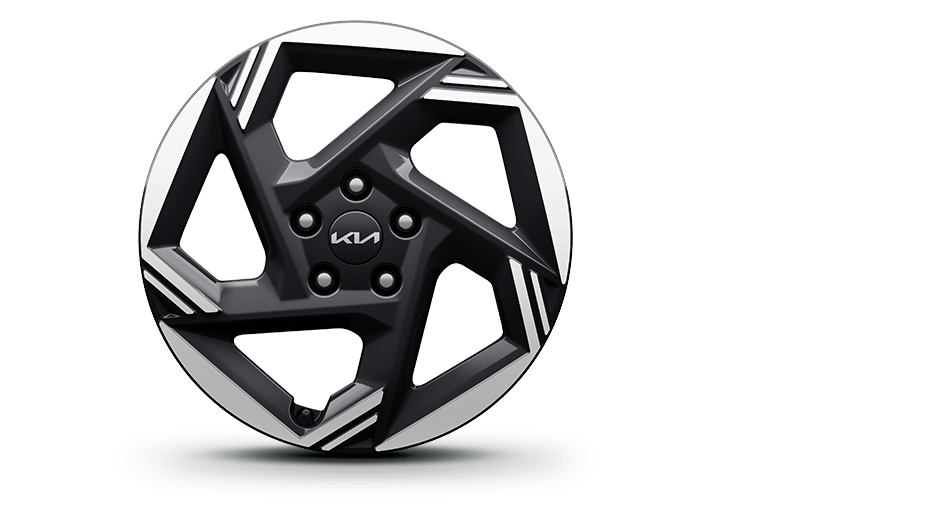

  • 17" Alloy wheels

    17" Alloy wheels

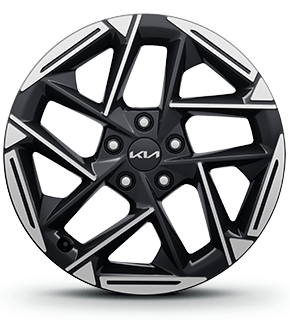

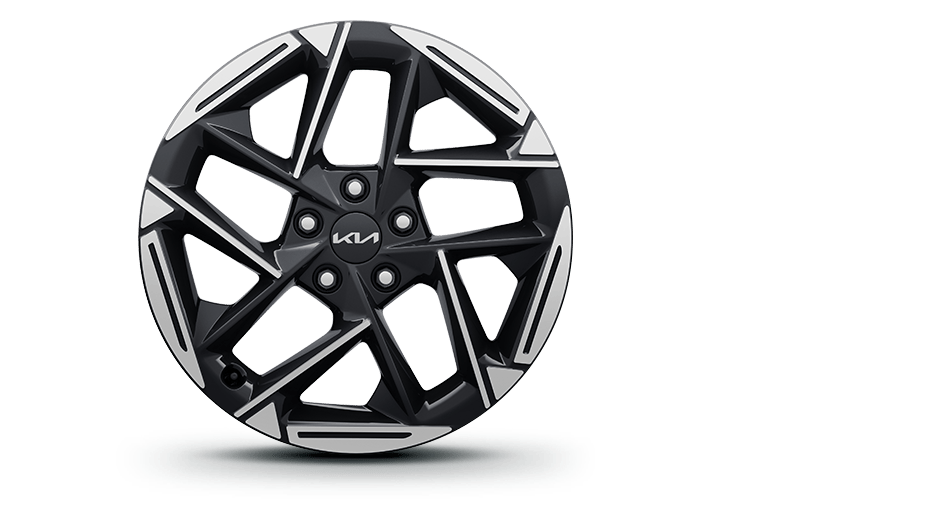

  • 18" Aluminum wheels

    18" Aluminum wheels
Prev
  • Specifications of the vehicle may vary by region.
  • All information and illustrations are based on data available at the time of publication and subject to change without notice.
    Contact your local Kia dealer for current information.
