Specification

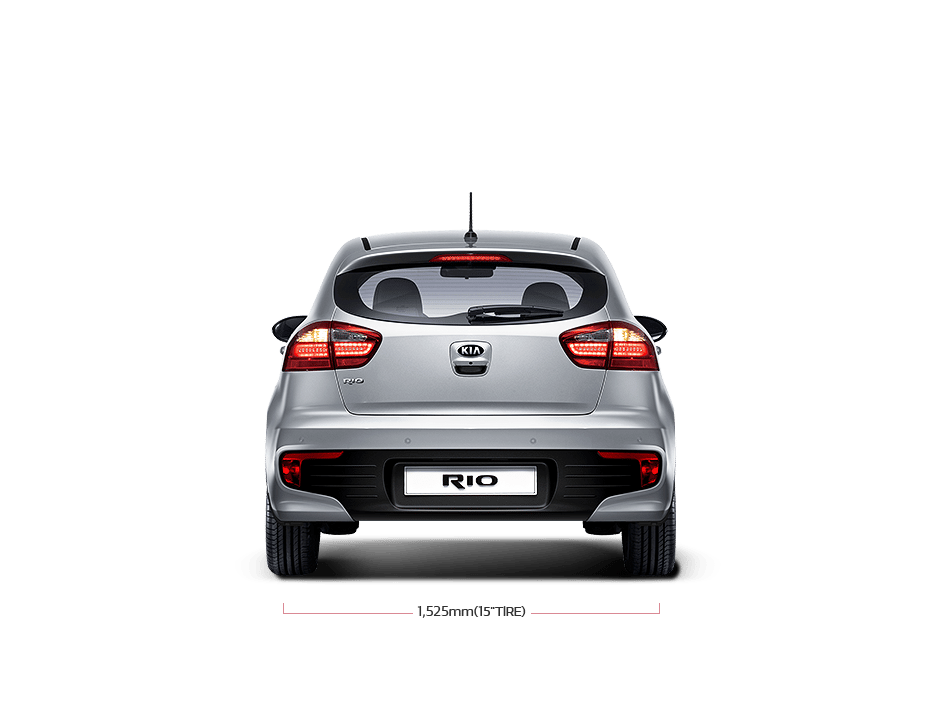

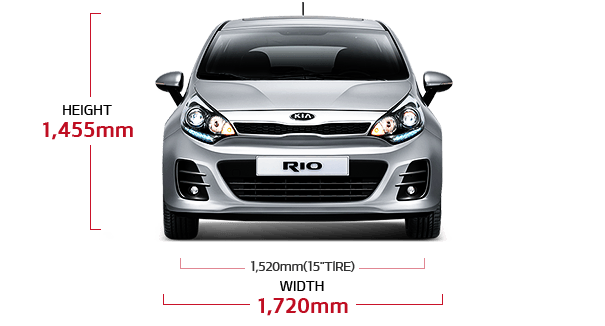

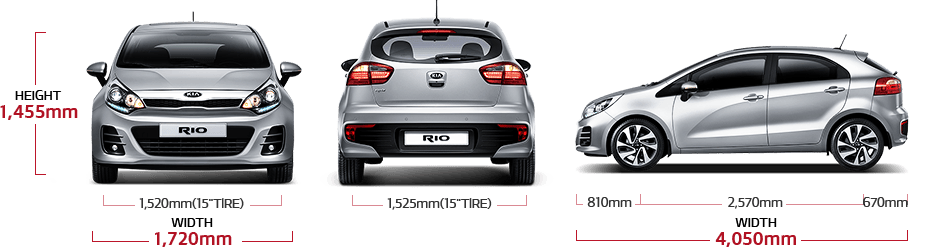

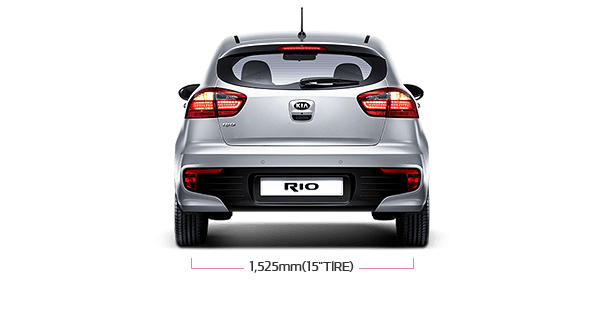

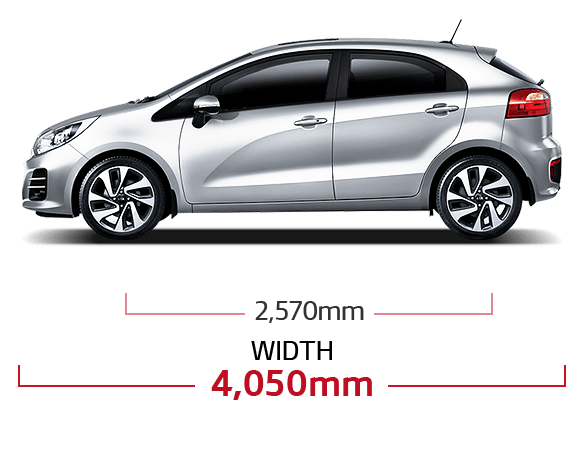

Dimensions

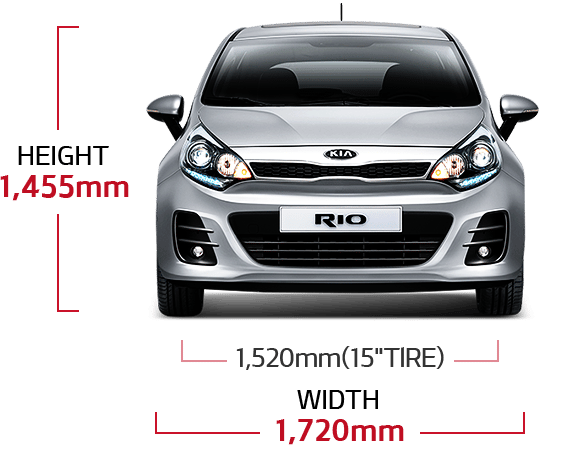

Kia Rio 5 Door Dimensions Kia Rio 5 Door Dimensions Kia Rio 5 Door Dimensions
Kia Rio 5 Door Dimensions Kia Rio 5 Door Dimensions Kia Rio 5 Door Dimensions
Kia Rio 5 Door Dimensions Kia Rio 5 Door Dimensions Kia Rio 5 Door Dimensions
DIMENSIONS(mm)
table fix area
CAR
Overall length
Overall width
Overall height
Wheelbase
Wheeltread (front)
Wheeltread (rear)
Overhang (front)
Overhang (rear)
Leg room (front)
Leg room (rear)
Head room (front)
Head room (rear)
Shoulder room (front)
Shoulder room (rear)
Minimum ground clearance

Rio 5-door

4,050

1,720

1,455

2,570

1,520

1,525

810

670

1,112

790

1,015

960

1,350

1,324

140

Engine

Engine

Next

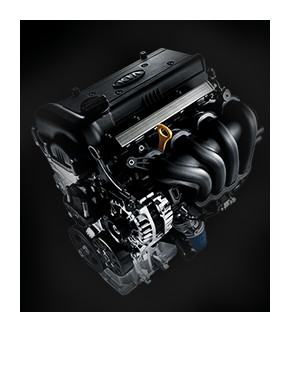

  • Gamma 1.4 Gasoline

    • Displacement(cc) 1,396
    • Max. Power(kg/m) 107(78.5 kW)/6,300
    • Max. Torque(kg • m / rpm) 13.8(135.4 Nm)/4,200

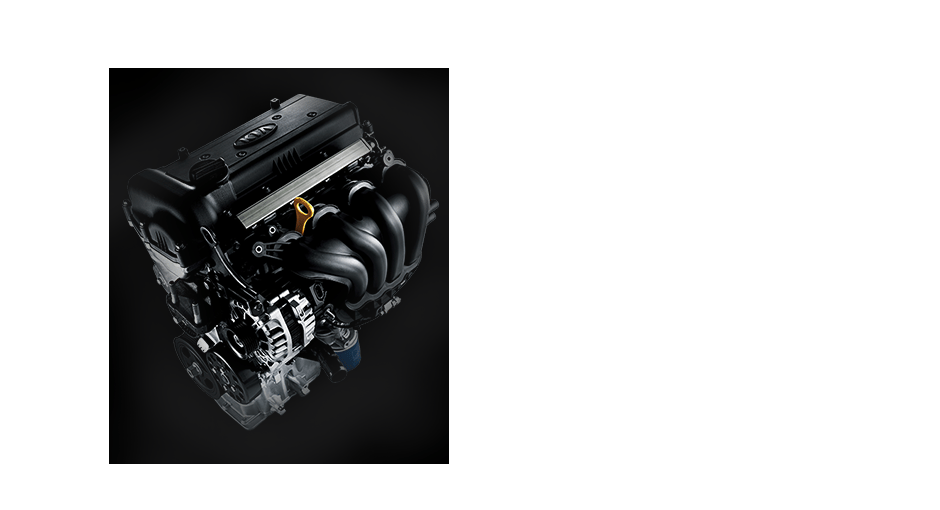

    Gamma 1.4 Gasoline
Prev
ENGINE
table fix area
Displacement (cc)
Max. Power (ps/rpm)
Max. Torque (kg • m / rpm)

Gamma 1.4 Gasoline

1,396

107 (78.5kw)/ 6,300
13.8 (135.4 Nm)/ 4,200
PRICE LIST
table fix area
Grades
Recommended Retail Price (Inclusive 6% GST)
Insurance (Inclusive 6% GST)
(Sum Insured: RM70,000.00)
Registration
Road Tax (1 Year)
HP Ownership Claim Free
ON-THE-ROAD PRICE WITH INSURANCE
(Inclusive 6% GST)
1.4L
82,112.97
2,505.03
150.00
70.00
50.00
84,888.00

Wheel

Next

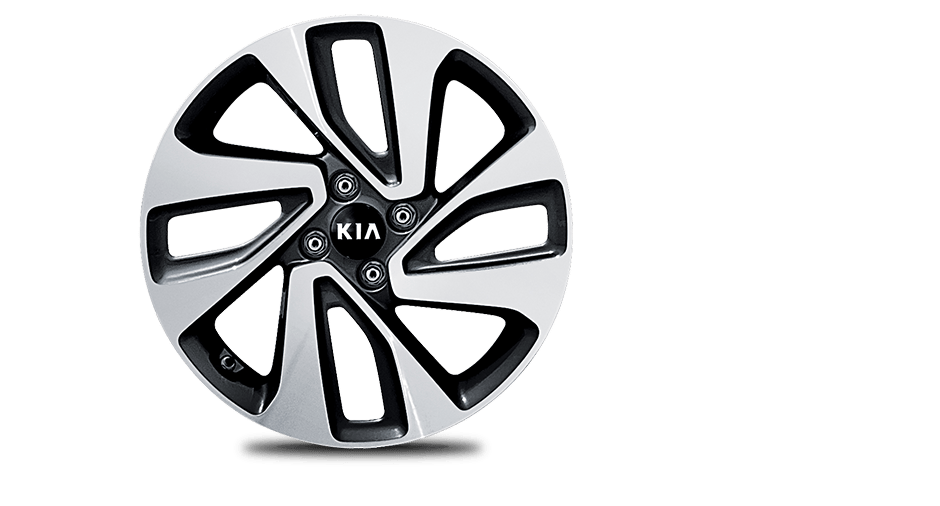

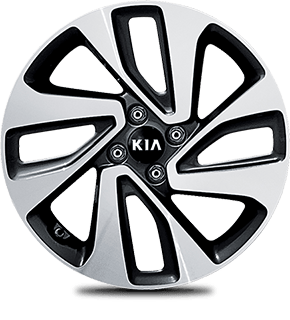

  • 17'' Alloy wheel

    Alloy wheel
Prev
  • All information and illustrations are based on data available at the time of publication and subject to change without notice.
    Contact your local Kia dealer for current information.
