Specifications

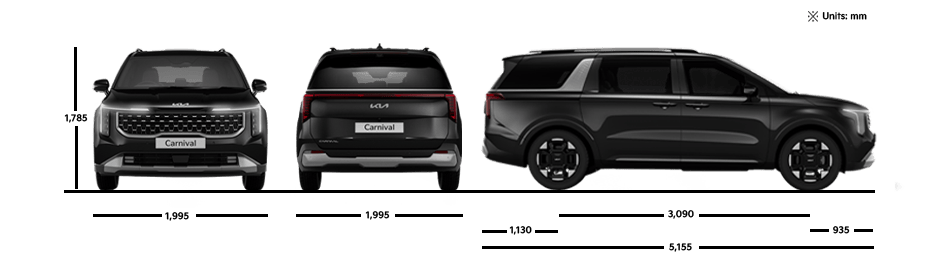

Dimensions

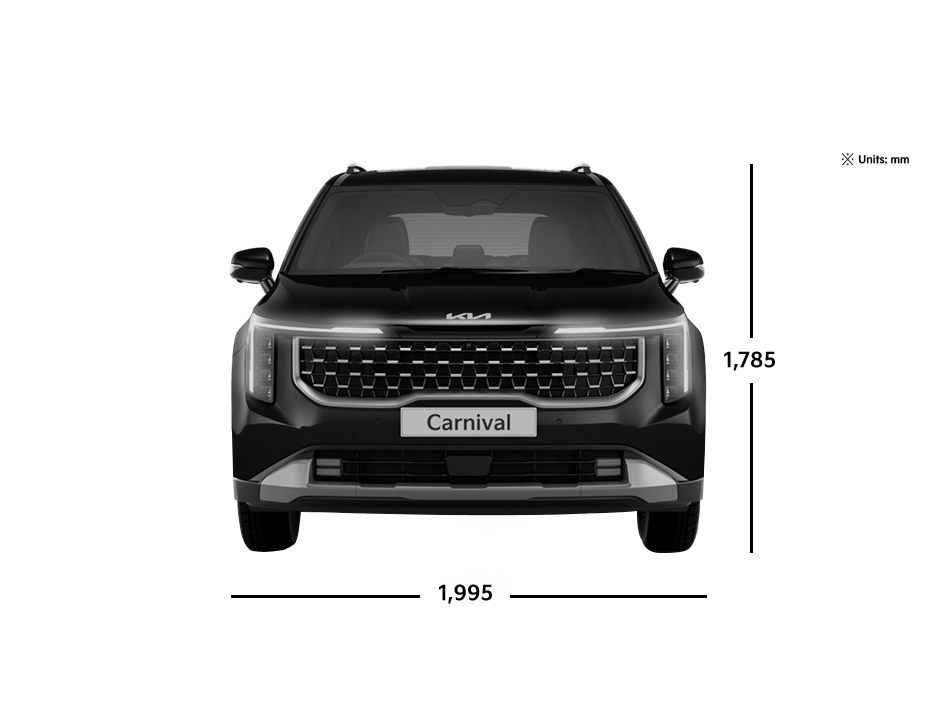

Carnival-front Carnival-front Carnival-front

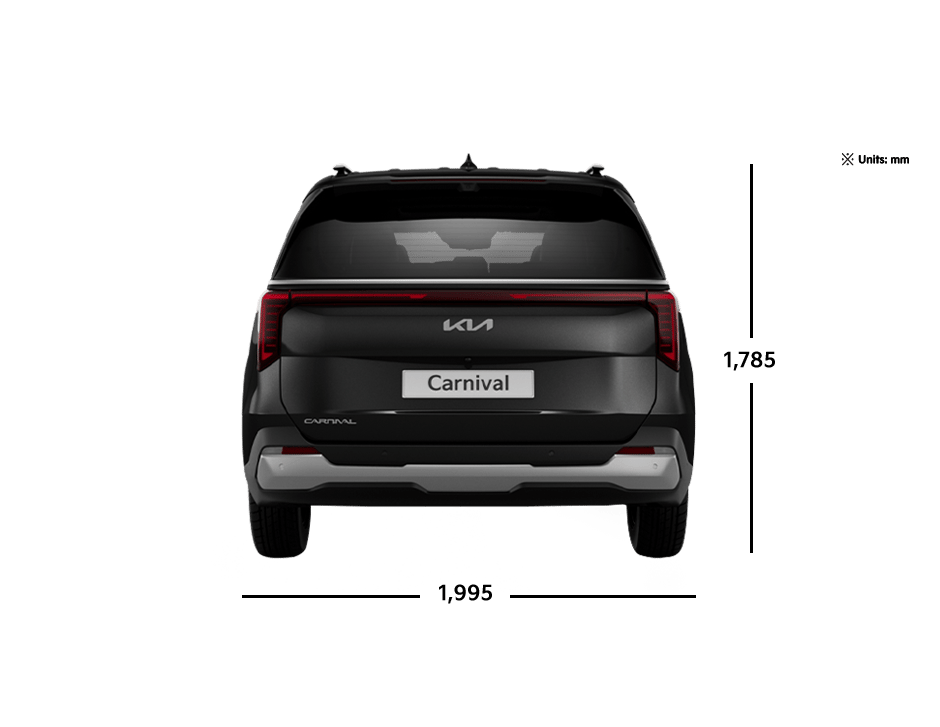

 Carnival-back Carnival-back

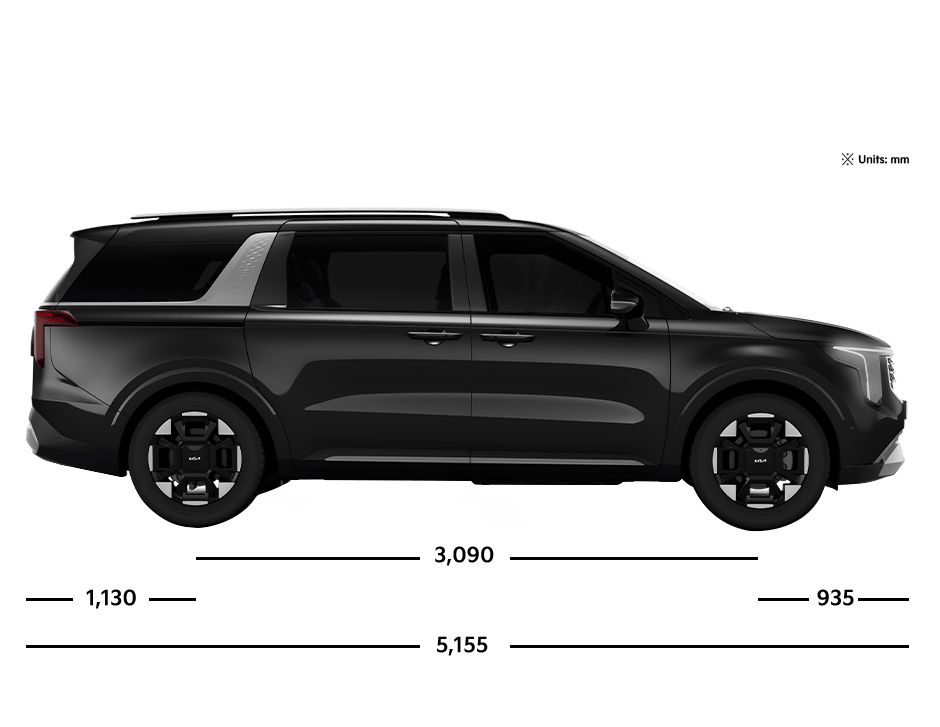

Carnival-Side Carnival-Side Carnival-Side
POWER TRAIN
table fix area
Engine Type
Displacement (cc)
Maximum Power (PS/rpm)
Maximum Torque (Nm/rpm)
Transmision Type
Premiere 7-Seater Premiere 11-Seater Hybrid 7-Seater
Smartstream Engine, D 2.2L, CRDI, DOHC, 16V Smartstream Gamma II, 1.6 T-GDi
2,151 1,598
194 245
441 367
8-Speed AT 6-speed AT
STEERING SYSTEM
table fix area
Type
Power Steering
Premiere 7-Seater Premiere 11-Seater Hybrid 7-Seater
Rack & Pinion
MDPS
BRAKE
table fix area
System
Type (Front / Rear / Parking)
Premiere 7-Seater Premiere 11-Seater Hybrid 7-Seater
ABS, EBD, BA
Ventilated Disc / Disc / Electronic Parking Brake
DIMENSION
table fix area
Length/Width/Height (mm)
Wheel Base (mm)
Wheel , Tire
Fuel Tank Capacity (L)
Premiere 7-Seater Premiere 11-Seater Hybrid 7-Seater
5,155 / 1,995 / 1,775 5,155 /1,995 / 1,785
3090
Alloy Wheel 235/ 60 R18 Alloy Wheel 235/55 R19
80 72
SUSPENSION
table fix area
Front
Rear
Premiere 7-Seater Premiere 11-Seater Hybrid 7-Seater
Mc Pherson Strut
Multi Link
EXTERIOR
table fix area
Sun Roof
Radiator Grill
Rear Spoiler
Outside Mirror
Head Lamp
Day Time Running Light
Fog Lamp
Front Wiper
Rear Combination Lamp
Rear Back Door
Premiere 7-Seater Premiere 11-Seater Hybrid 7-Seater
Wide Dual Sunroof, power sliding & Tilting (F), Power sliding (R)
Chrome Coating
Integrated with HMSL (High Mounted Stop Lamp)
Body Color w/ Electric Mirror, Heated and Power Folding
LED Projector, Auto Light and Leveling
LED and Positioining Lamp
LED Type
Auto Wiper w/ Rain Sensor
LED
Smart Power Tailgate with Auto Close
INTERIOR
table fix area
Steering Wheel
Power Window
Front Console
Interior Lamp
Meter Cluster
Front Seat
Rear Seat
Heated Seat
Ventilated Seat
Premiere 7-Seater Premiere 11-Seater Hybrid 7-Seater
Leather, 4 Spoke Sport with Tilt & Audio Control & Paddle Shift
All Window Auto up & Down with Safety
with Two Cup Holder
LED
12.3" Curve Premium Cluster
4-way Power Seat with Memory (Driver), 4-way Power Seat (Passager)
Sliding and Reclining Premium Relaxation Seats w/ Electric Adjustable and Leg Support
1st & 2nd Row
1st Row 1st & 2nd Row
SAFETY & SECURITY
table fix area
Body Structure
Airbags
1st Row Safety Belt
Rear Safety Belt
Parking Assist
Electronic Brake Control
ADAS System
Camera
Premiere 7-Seater Premiere 11-Seater Hybrid 7-Seater
Advanced High Strength Steel & Press Hot Stamping
8 Airbags, Driver, Knee, Passenger, Center, Side and Curtain Airbags
3 Point ELR
3 Point ELR (Side)  2 point (Center)
8 Sensor and Dynamic Parking Guideline
ABS, ESC, Hill Start Assist
SCC, LFA, LKA, FCA & JX, BCA & BVM
Surround View Monitor
AUDIO & SPEAKER
table fix area
Head Unit
Speakers
Premiere 7-Seater Premiere 11-Seater Hybrid 7-Seater
12.3" Infotainment with Wireless Connection (Apple Car Play & Android Auto)
BOSE Premium Sound System 12-Speakers high performance
COMFORT
table fix area
Air Conditioning
Start Stop and Keyless Entry
Remote Engine Start
Drive Mode
Transmision
Wireless Charging
Premiere 7-Seater Premiere 11-Seater Hybrid 7-Seater
Auto Climate Control (3 zone)
S
S
4 Driving Mode
e-Shift with Paddle Shift
S

Wheel

Next

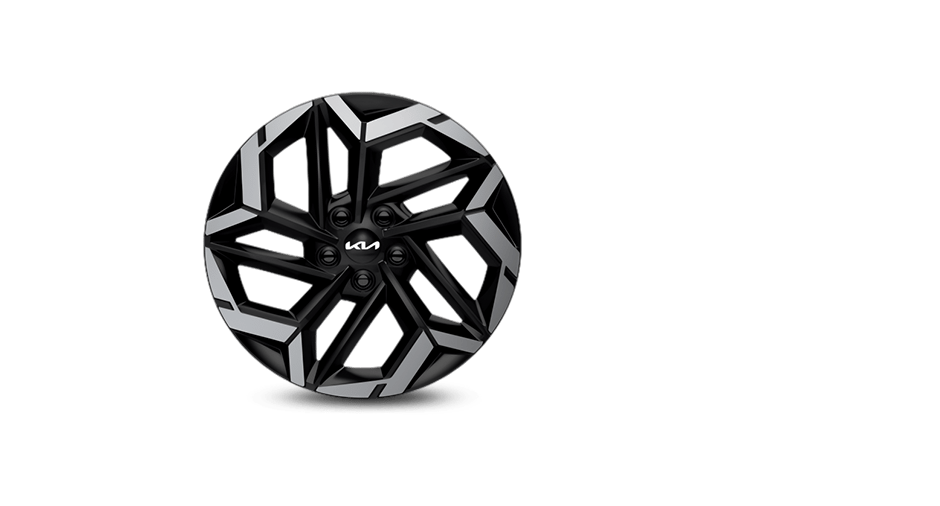

  • 235/60R
    Alloy Wheel 18"

    235/60R<br>Alloy Wheel 18"

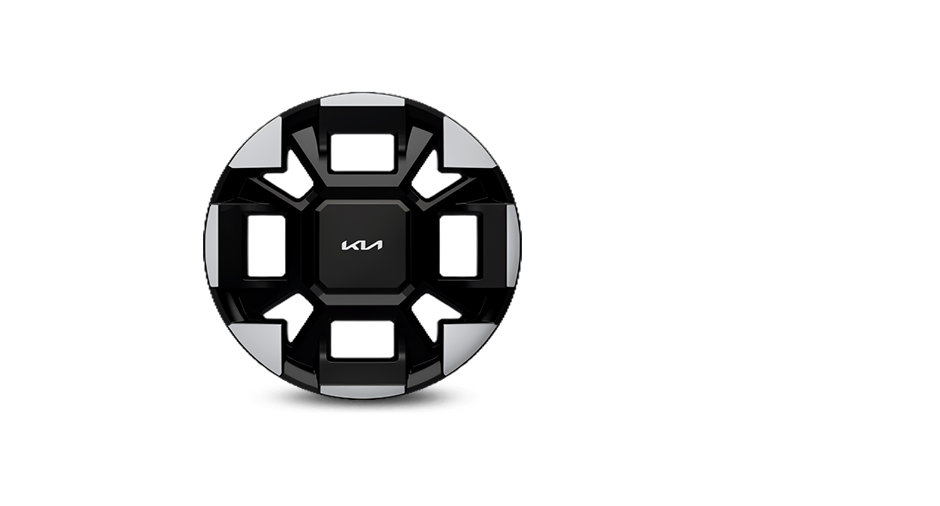

  • 235/55R
    Alloy Wheel 19"

    235/55R<br>Alloy Wheel 19"

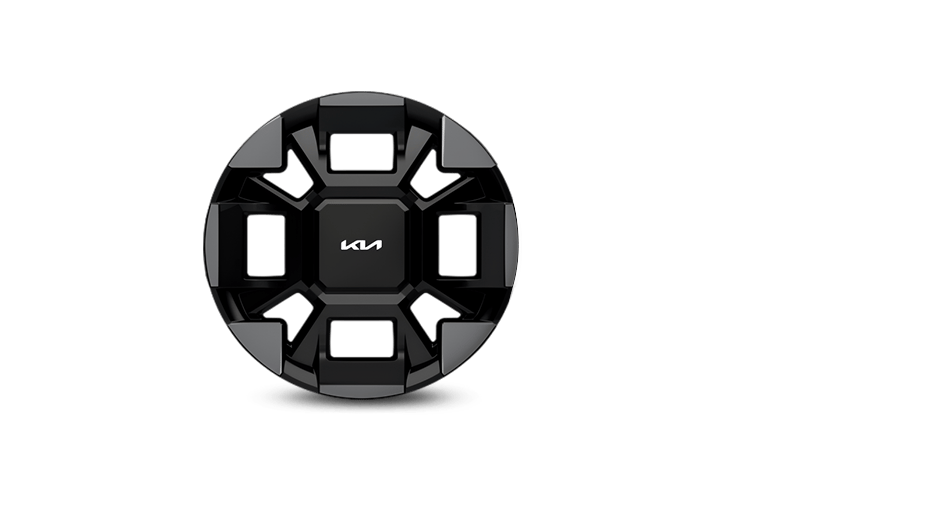

  • 235/55R
    Alloy Wheel 19"

    235/55R<br>Alloy Wheel 19"
Prev
  • Specifications of the vehicle may vary by region.
  • All information and illustrations are based on data available at the time of publication and subject to change without notice.
    Contact your local Kia dealer for current information.
The whole new levels of peace of mind
At speeds of 20 km/h or higher, BCW alerts you if a vehicle enters your blind spot, even when you are in the process of changing lanes. LED warnings flash on the door mirror and an audio warning is emitted when you signal to make a lane change.
